Chery QQ - Shift and Select Lever Shaft Control System

Chery QQ Service Manual Transmission System
-37-
III , Shift and select lever shaft control system

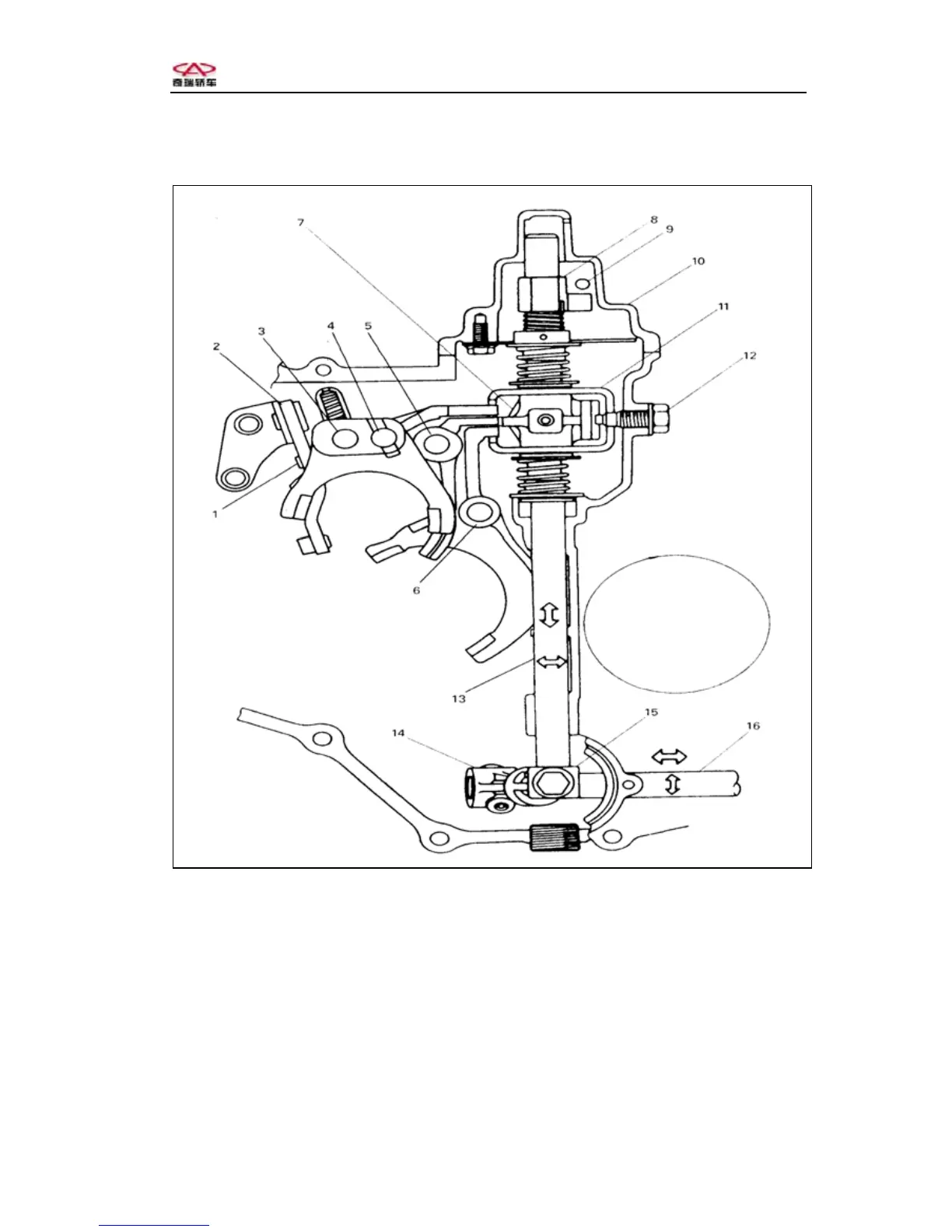

Fig.1-3
1- Reverse shift fork 2- Reverse shift fork assembly 3-Reverse,
5th shaft 4-Reverse, 5th shift fork shaft 5- 3rd, 4th shift fork shaft
6-1st, 2nd shift fork shaft 7- Select lever shaft 8-Reverse, 5th
shift cam 9- Reverse, 5th Interlock roller 10-Case
11- Interlock bolt 12- Restrict bolt 13-Shift and select lever shaft
14- Shift lever 15- Shift head 16- Shift lever
Chery Automobile Co., Ltd
