• Chery QQ Service Manual Transmission System
Chery Automobile Co., Ltd
25
Chapter 1 The Clutch
Section 1 Summarization
The clutch used in this car is dry type, a diaphragm spring disc spring, often press
type clutch.
The clutch disc assembly is consist of six pieces of absorber springs, and is fixed
on the input axle of the transmission through splined hub.
The clutch platen assembly is fixed on the flywheel, the fixing state of
diaphragm spring is in this mode: when the Release bearing draws back, the
edges of diaphragm spring is beginning to drive the platen against the flywheel。
This is the clutch jointing state.
Step on the clutch pedal to move release bearing forward, diaphragm spring. At
this time, diaphragm spring pulls the platen and comes away from the flywheel,
thereby disconnect driving from the flywheel via to input shaft.
For the vehicles with three-way catalyst, the clutch switch is located on the upper
position of the clutch pedal.

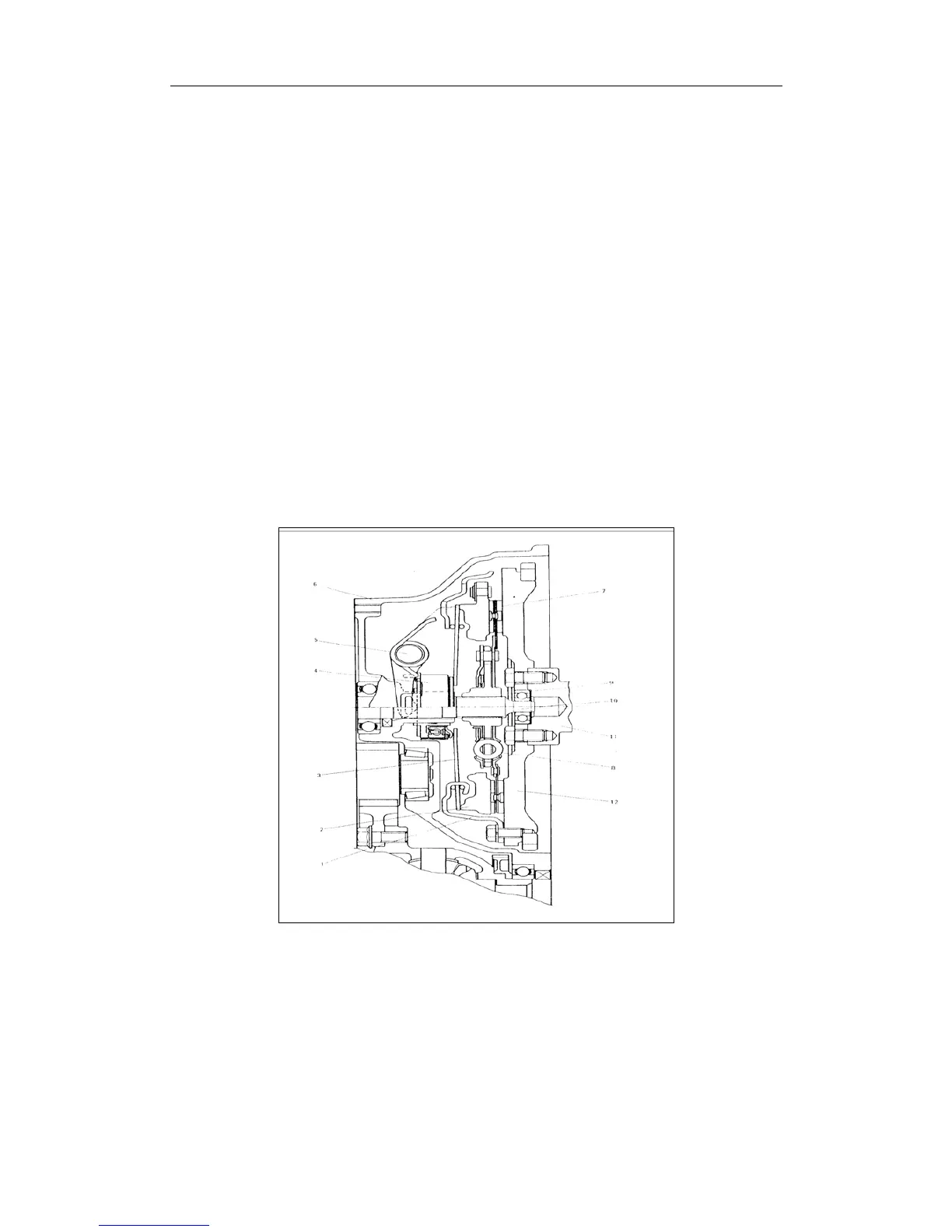

1,Pressure plate assembly 2,Pressure plate 3,Diaphragm spring 4,Release bearing
5,Release fork 6,Clutch housing 7,Clutch disc 8,Cushion or damper spring 9,
In
