CHERY SQR7080 EZ Drive SERVICE MANUAL
MECHANICAL TRANSMISSION – CLUTCH MODULE
Tightening torque (unit: DAN.M)
Energy storage 4
High-pressure pipeline coupler 1.4
Lifting ring fixing nut 2.1
M8 bolt for electric pump set 2.4
M10 bolt for electric pump set 4.4
M6 bolt for electric pump 1
Before maintaining the entire automated mechanical
transmission, use a special repair tool to remove the
energy storage.
When doing this, comply with the control procedure
described in the section of “Removal of Pressure
Energy Storage”. (Refer to the section of
"ENERGY STORAGE").

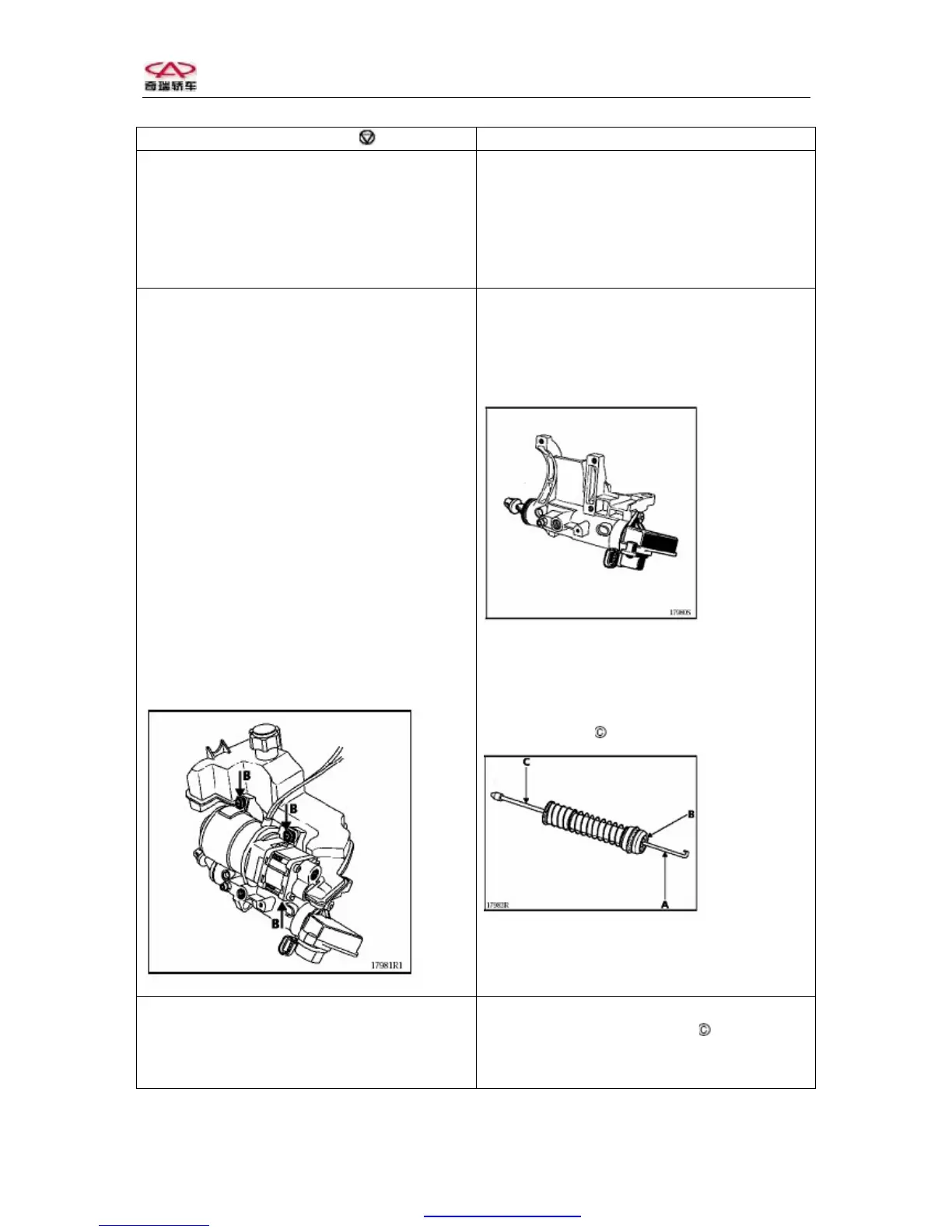

Removal:
It is necessary to firstly remove the electric pump
set before the clutch module.
With regard to how to remove the electric pump set,
refer to its removal procedure described on Page 12.
Remove:
- Oil tank
- The pump through taking off the three bolts
(B)
Remove:
- Sleeve joint
- Dust boot
- Clutch position sensor (be careful to not
disconnect the clutch cylinder)
Remove:
- Spring pin assembly
- Potentiometer control
- Piston (B) connector by using a screwdriver
- Clutch cable
Remove the bushing and washers on the clutch.
Remounting:
- The clutch cable in the piston
- Connector (B)
- Potentiometer control (A)
