CHERY SQR7080 EZ Drive SERVICE MANUAL

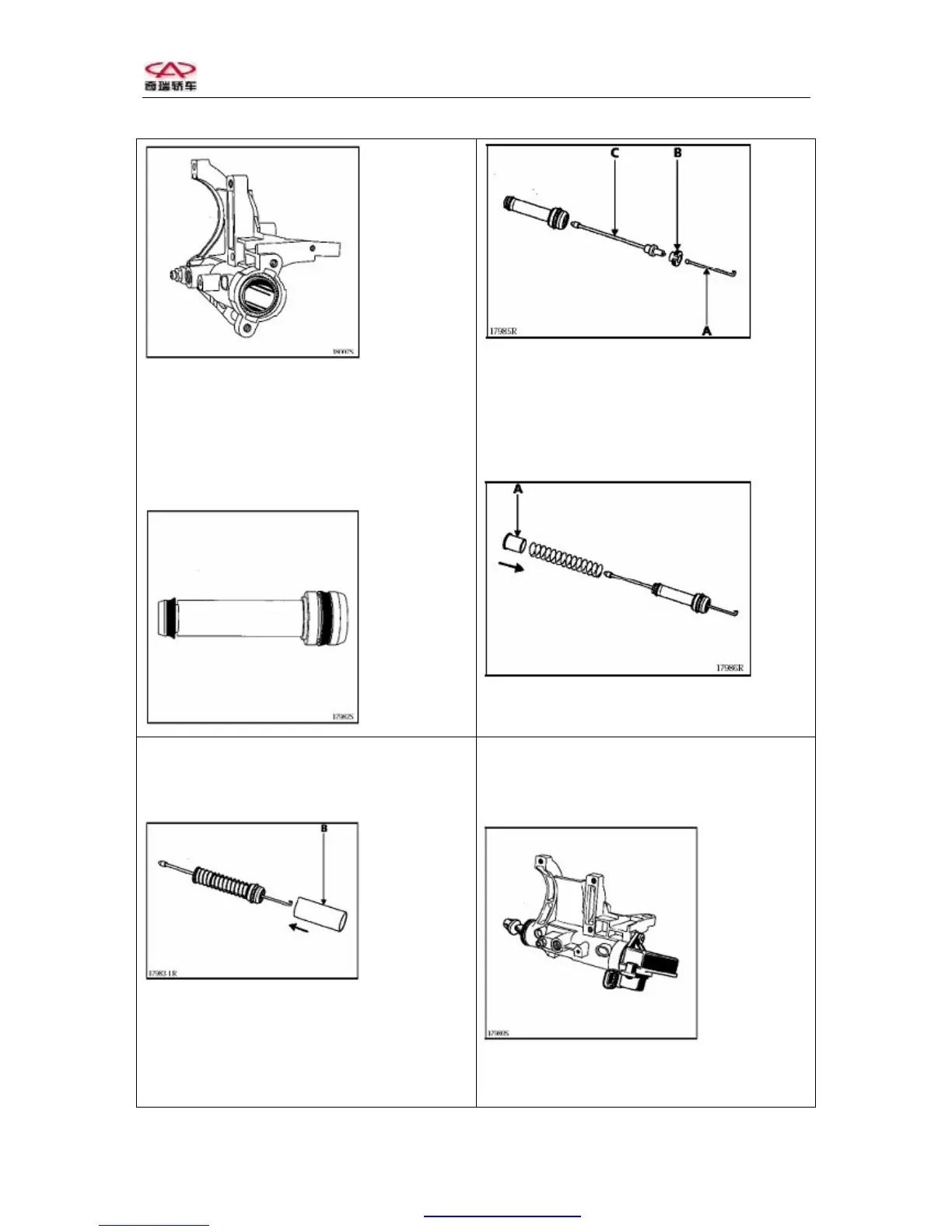

Remounting:
Notice:
Piston washer shall have a correct mounting
direction due to its unusual lip shape.
Ensure that piston washer is in good condition.
Remount:
- Spring
- Remount the sleeve on condition that the
compression spring is mounted in the correct
direction so as to damage the piston washer.
Remount the sleeve (B) on condition that the
lip-shaped washer is mounted in the correct
direction so as to not be damaged.
Remount:
- Sleeve/piston assembly in the clutch module
- Seal washer
Remount:
- Dust boot
- Sleeve stop ring
