Chery QQ Service Manual
- 10 -
Surface of the rectifier
Use 100# emery cloth to trim and clean the
surface of the rectifier, and check the deepness of
the mica. If necessary, trim the deepness.
Deepness A of rectifier mica piece
Repair limit (min): 0.22mm (0.008in)
Starter motor bracket
Check the electric conduction of the excitation coil.
It should be connected between the brush and the
starter motor bracket body.
Check the brush
Measure the length of the brush, replace if
necessary.
The length of the brush
Repair limit (min): 10.7mm (0.421in)
Brush holder
Check whether the brush spring is rubiginous or
damaged. At the same time, check whether the brush
holder is rubiginous and whether the positive plate is
insulated. Replace the whole assembly if necessary.
Overspeed clutch
Check whether the overspeed clutch can rotate freely in A direction and whether
connected in the other direction. And check whether the pinion is worn abnormally.
Replace the whole assembly if necessary.

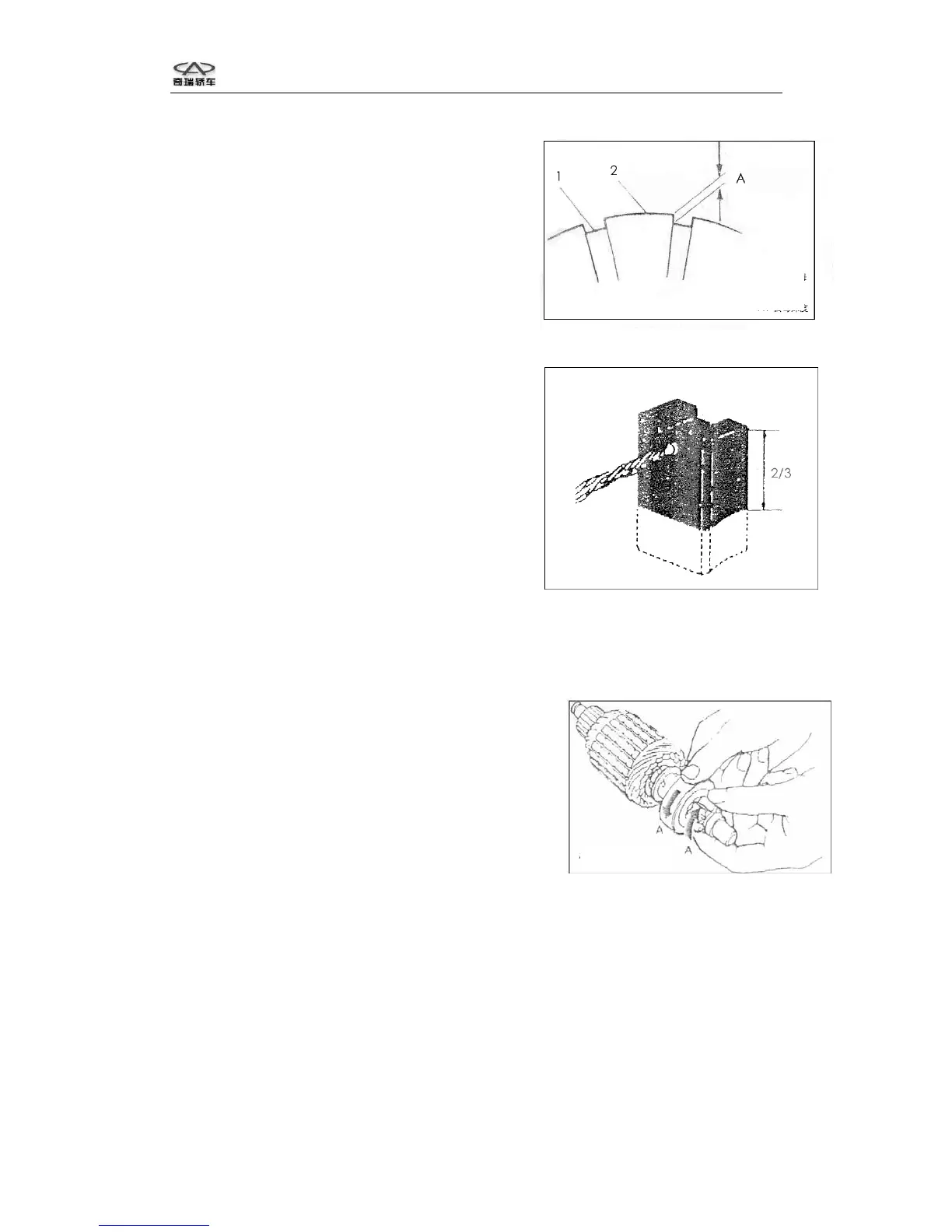

1.insulating mica
2.rectifier plate
3.mica deepness
A rotate freely
