Chery QQ - Figure Inspection of Conductance of Power Window Main Switch; Window Secure Switch

Chery QQ Service Manual BCM Computer Control System
switch switch position Connection to the instrument conductance
UP 13-12 Yes
OFF 3-12 Yes
Switch on the
driver side
DOWN 14-12 Yes
UP 5-12 3-12 5-3 Yes
OFF 3-12 Yes
Switch on the
by-driver
side(window
unlocked)
DOWN 6-12 3-12 3-6 Yes
UP 5-12 Yes
OFF -
Switch on the
by-driver
side(window
locked)
DOWN 6-12 Yes
UP 9-12 3-12 9-3 Yes
OFF 3-12 Yes
Rear left
switch(window
unlocked)
DOWN 10-12 3-12 3-10 Yes
UP 9-12 Yes
OFF -
Rear left
switch(window
locked)
DOWN 10-12 Yes
UP 1-12 3-12 1-3 Yes
OFF 3-12 Yes
Rear right
switch(window
unlocked)
DOWN 2-12 3-12 2-3 Yes
UP 1-12 Yes
OFF -
Rear right
switch(window
locked)
DOWN 2-12 Yes

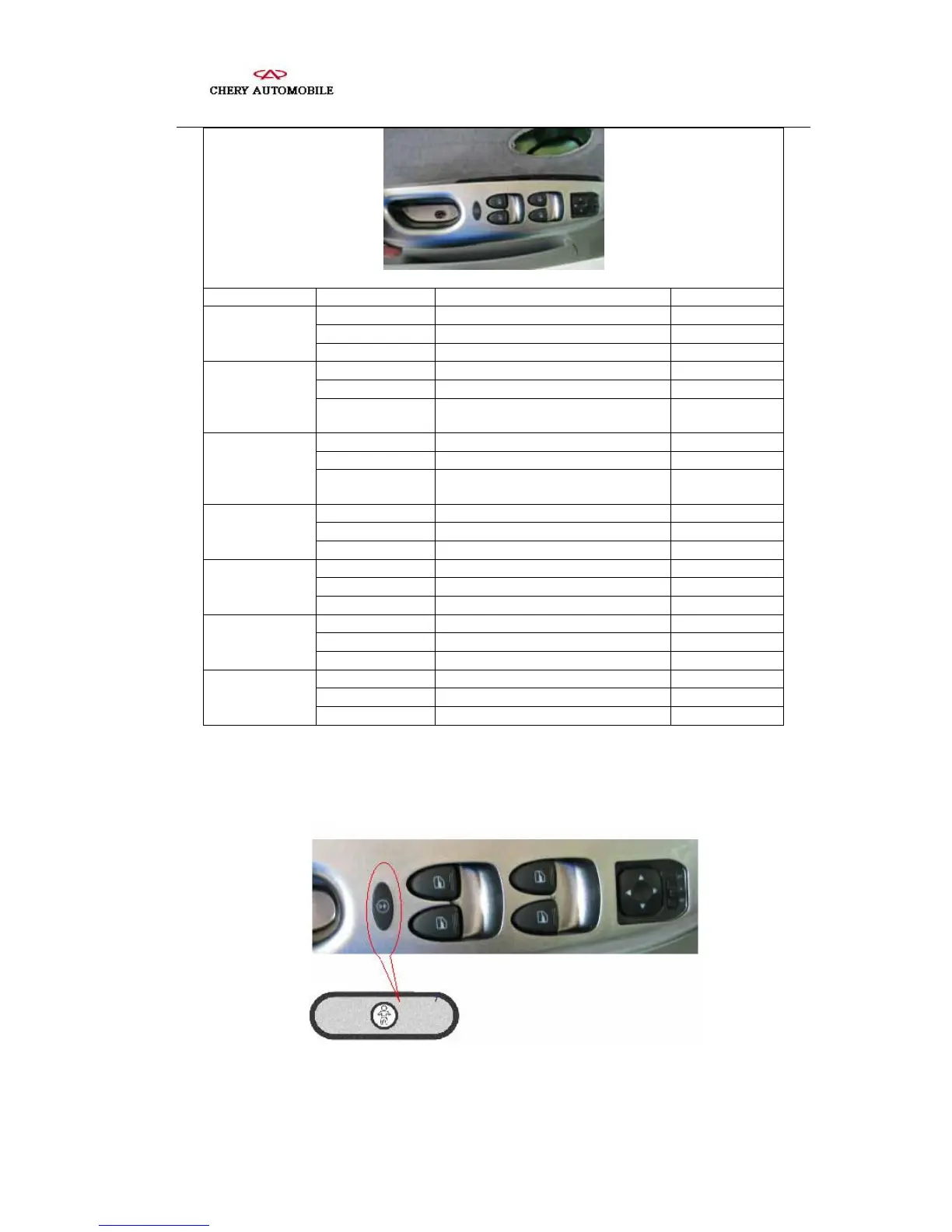

Figure Inspection of conductance of power window main switch
（2）window secure switch
