Chery QQ Service Manual BCM Computer Control System

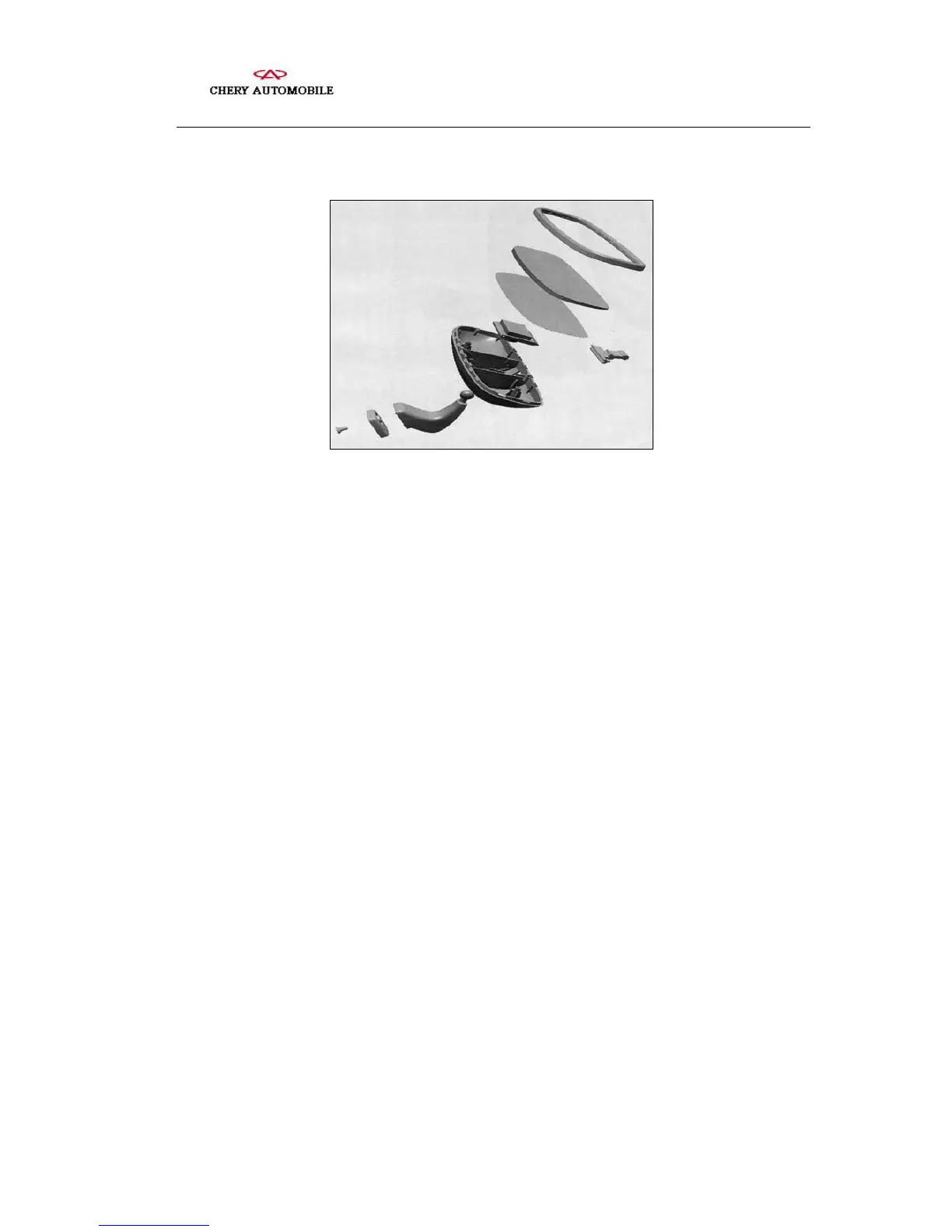

(1) Explosive view
(2)Usage/operation guide and warning
Usage/operation guide
①According to the different driver’s visual, adjust the mirror angular of the
assembly
②Turn the handle to adjust the mirror angular in the up and down direction to
prevent dazzle.
Warning:
If the Number of manual adjusts excesses a predetermined value, operating
force will lower.
3、Assemble, disassemble and warning
Steps of assemble and disassemble
（1）Prize off the mirror frame with tools, and remove damaged mirror
（2）Put new mirror in the mirror case in position, insert the mirror frame in the
corresponding groove of mirror case assembly
Notice:
（1）Remove the mirror frame with caution, don’t scratch or damage other parts
（2）Put the new mirror in the correct position of the mirror case, face the
reflecting surface outward; Insert mirror frame in position.
2. Structure of power rearview mirror and control switch
