Chery QQ - Assembly of Timing Cover; Installation of Water Pump Pulley

Chery QQ Service Manual Mechanical Part of SQR 472Engine
13

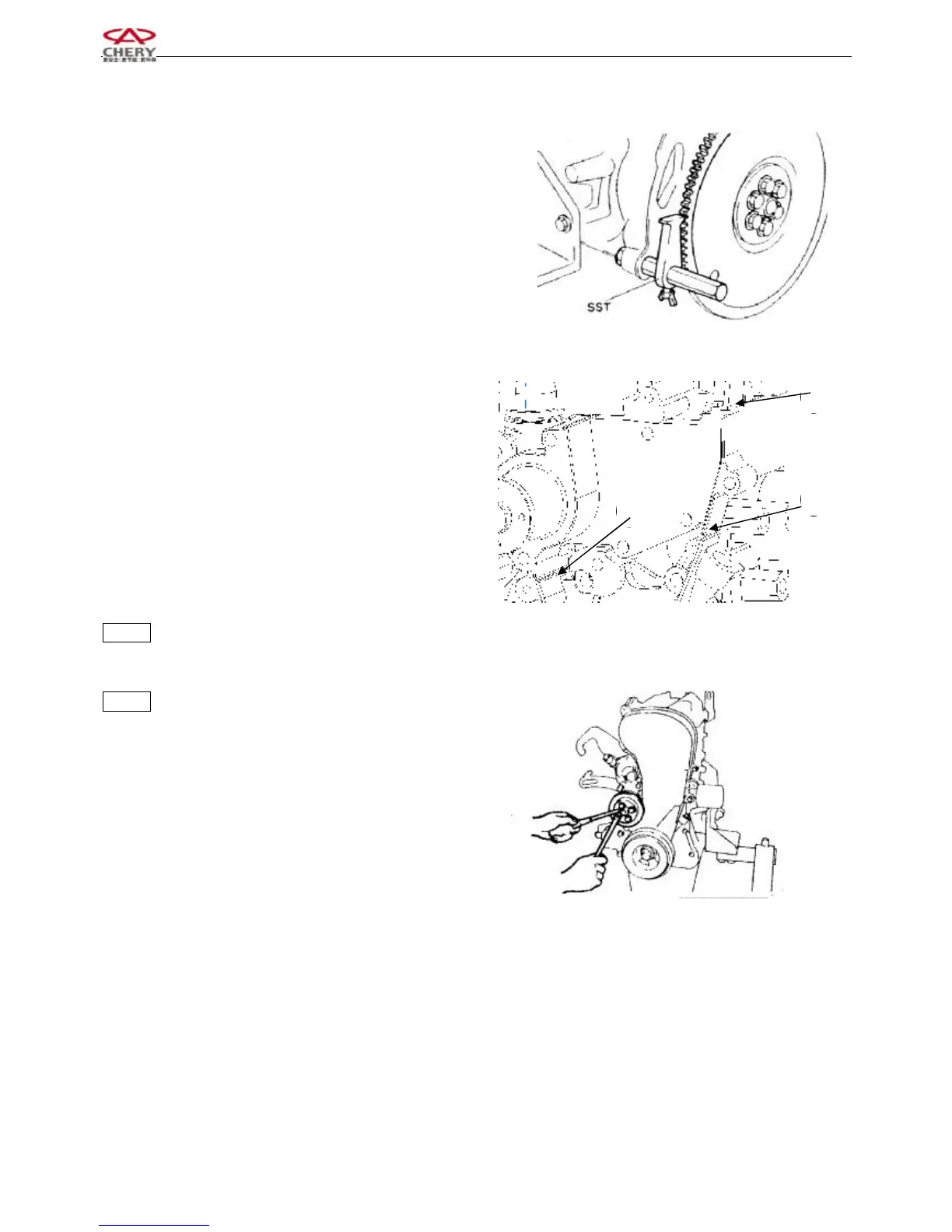

3.5.2 With flywheel
3.5.2.1 Prevent the gear from rotating with special tool.
3.5.2.2 Then screw down the bolt of torsional damper.
3.6 Assembly of timing cover.
Mount the sealing strips at the positions as indicated in the
right figure. The sealing strips at the position 1 and 2
should be mounted before the assembly of the cylinder
head assembly, and the sealing strip at the position 3
should be mounted before tightening the water pump.
Install the timing cover, screw in the bolts with hand and
then tighten them.
Torque: 6±1N.m
3.7 Installation of water pump pulley.
Torque: 6±1N.m
1
2
3
