CHERY SQR7080 EZ Drive SERVICE MANUAL
MECHANICAL TRANSMISSION – DRIVE MECHANISM MODULE

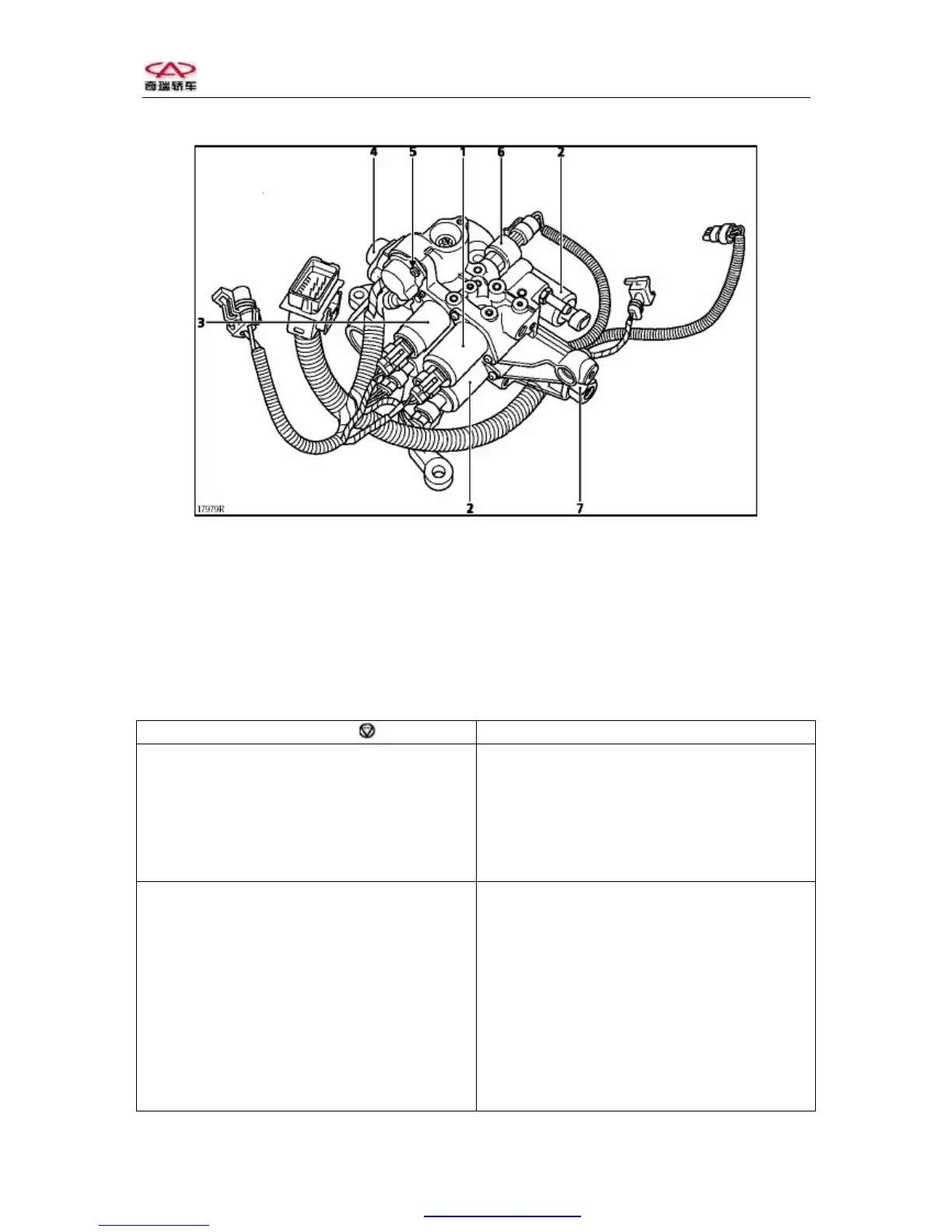

Instruction of part and component:
1. Electromagnetic valve for clutch
2. Electromagnetic valve for gear engagement
3. Electromagnetic valve for gear position selection
4. Engagement position sensor
5. Gear position sensor
6. Pressure sensor
7. High-pressure filter
Tightening torque (unit: DAN.M)
Drive module pin 0.8
Drive module nut 2.1
Electromagnetic valve bolt 0.4
Control shaft cover bolt 0.6
High-pressure pipeline coupler 1.4
Energy storage 4
Remarks:
Before maintaining the entire automated
mechanical transmission, use a special repair tool
to remove the energy storage. (Refer to the
section of “Energy Storage”).
Remove:
– Battery
– Air casing
– Electronic injection computer
– Clutch cylinder fasteners
– High-pressure pipeline
– Low-pressure pipeline
– Oil tank
– Left headlight
– Wheels
– Lamp used to indicate that left wheel is
stuck in mud
– Transmission weight
Mount the engine support MOT.1453
