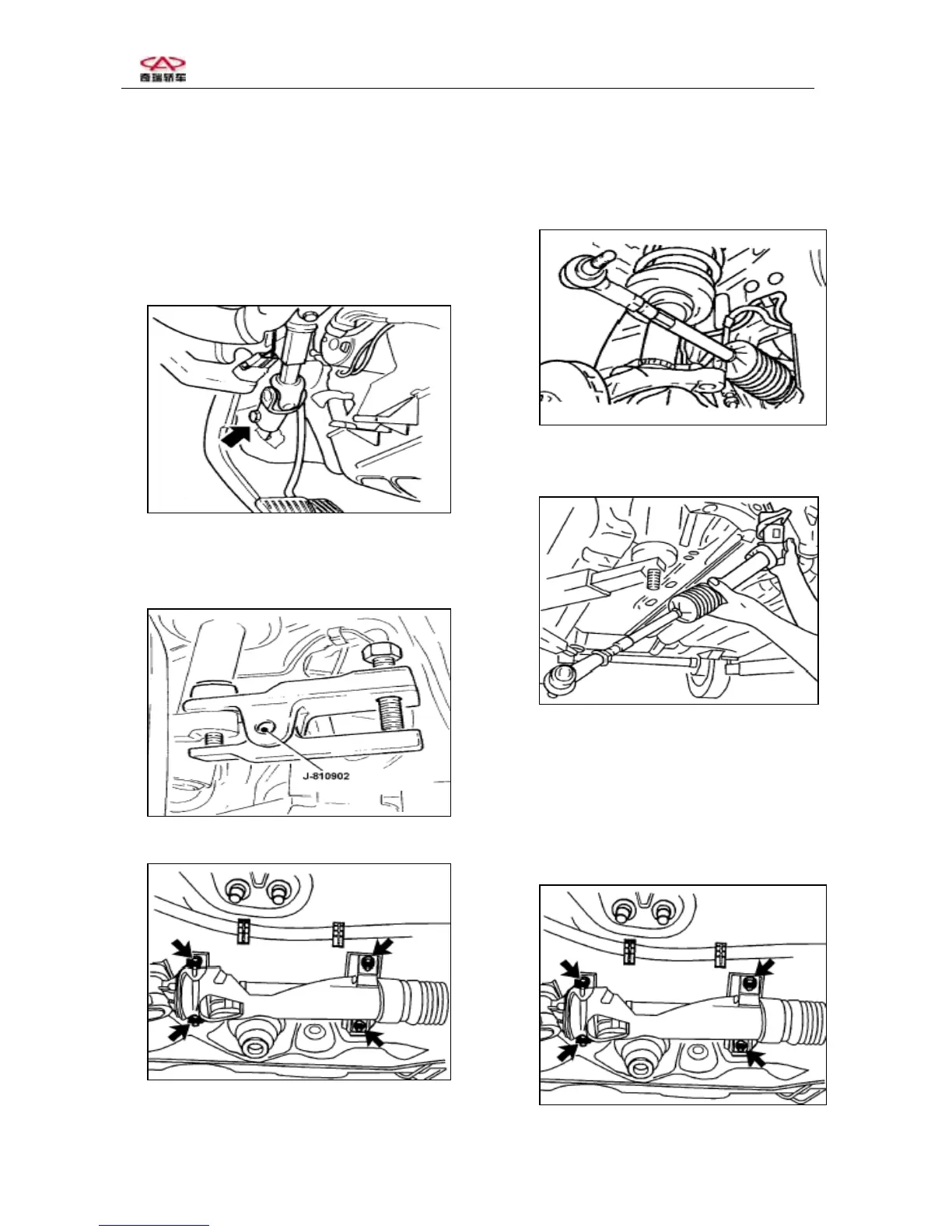

Chery QQ Service Manual Chassis System
II、Removal of power steering gear
assembly
(I)Removal
Disassembly procedure
92
1. Put steering wheel forward and lock
steering, remove steering shaft.
2. Loosen the nuts on two ends of steering
transverse lever and push out the ends of
lever from steering node.
3. Loosen the support and remove out.
4. Turn steering pivot left into gap of wheel,
pull the lever into engine compartment.
5. Push down and backwards to remove
steering pivot.
Steps of installation
1. Turn steering pivot upwards and push the
pivot into gap of wheel
2. Insert pivot into front surround.
3. Screw the nuts between the support and
front surround ( not tighten).
