Chery QQ Service Manual
- 5 -
Tighten torque
(a):18~28N.m(1.8--2.8kg—m.13.5—20.01b—ft)
Magnet switch assembly
Disassembly
1. Loose the nut from the magnet switch then
disconnect wire.
2. Take two nuts away, draw up the rear part of
the magnet switch in order to separate the inner
side hook and fork, then remove magnet switch.
Caution: Don’t disassemble magnet switch, if
necessary, please replace the whole assembly.
Installation
1. If necessary, magnet switch or protective cover should be replaced by new parts,
then daub lubricating grease on plunger.
2. Hook the plunger onto fork, then use nut to fix magnet switch.
3. Connect the wire, then check the working state of switch.
Notice:
Please check the plunger and fork is hooked firmly before install nut.
Protective cover ventilation side is downward.
Starter motor assembly
Disassembly
1. Remove magnet switch.
2. Remove two screws, take away the
rectifier rear cover, armature retainer plate
and braking spring.
3. Remove break through bolt, then draw
out the rectifier end cover.

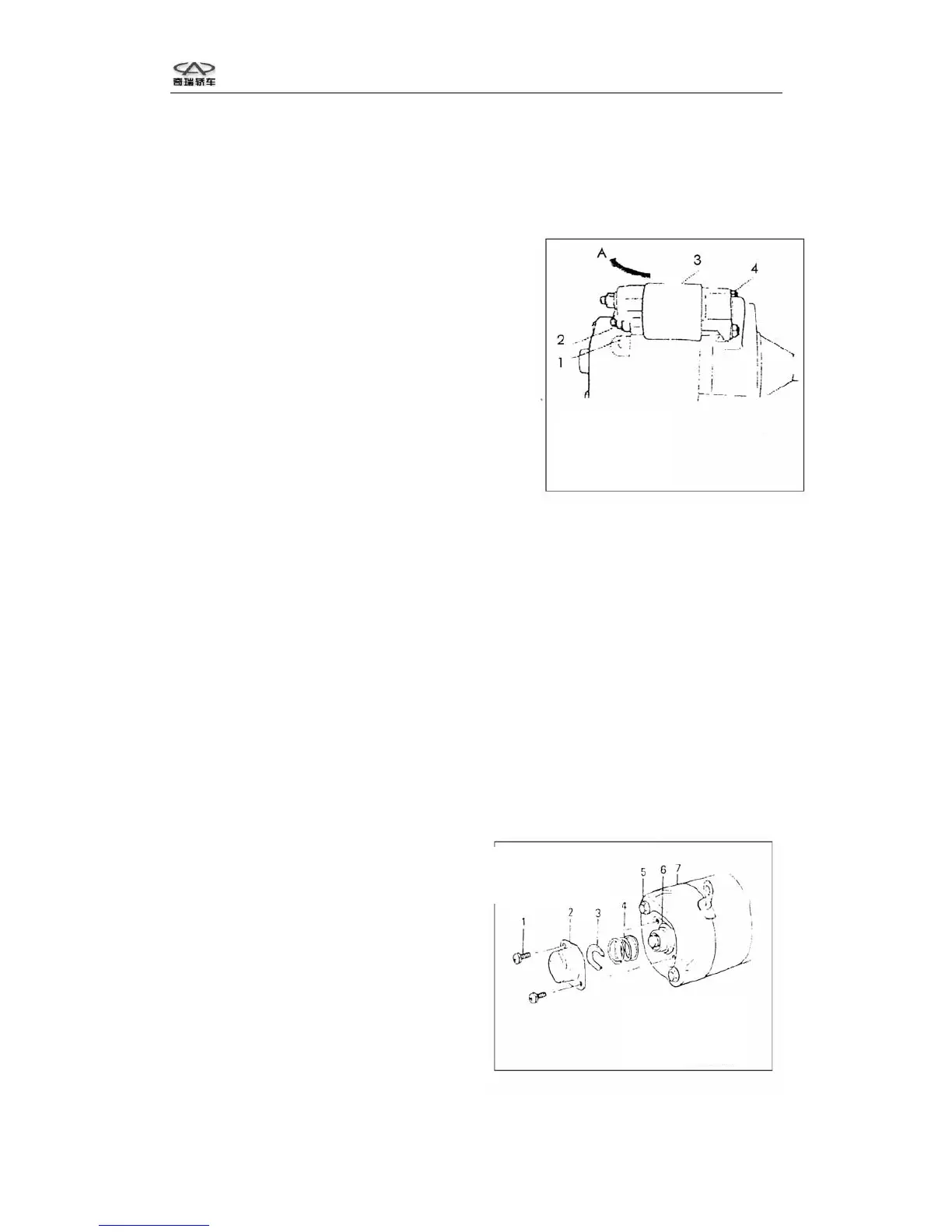

1.screw
2.rectifier end cover
3.armature mainboard
4.brake spring
5.through bolt
6.end cover
7. redirecto
