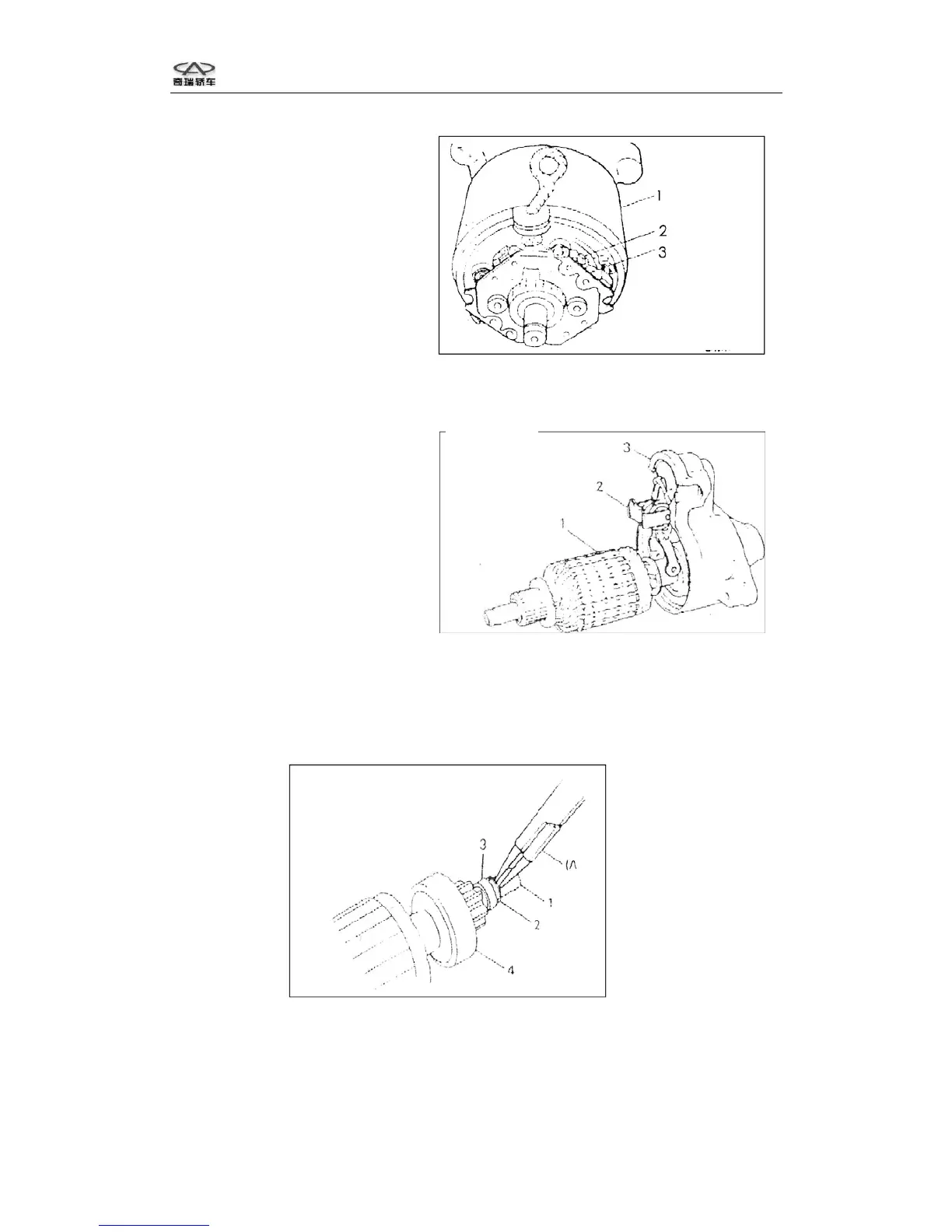

4. Use long-nose pliers to pull out
the brush, then remove brush holder
5. Remove starter bracket
6. Use spring snap ring pliers and screwdriver to remove armature snap ring, then pull
the pinion
1.start moto
r
bracket
2.brush
3.brush bracket
stop ring and overspeed clutch out.
1.armature
2.snap ring
3.drive end cover
1.armature
2.snap ring
3.pinion stop ring
4.overspeed clutch
.
