2) Camshaft

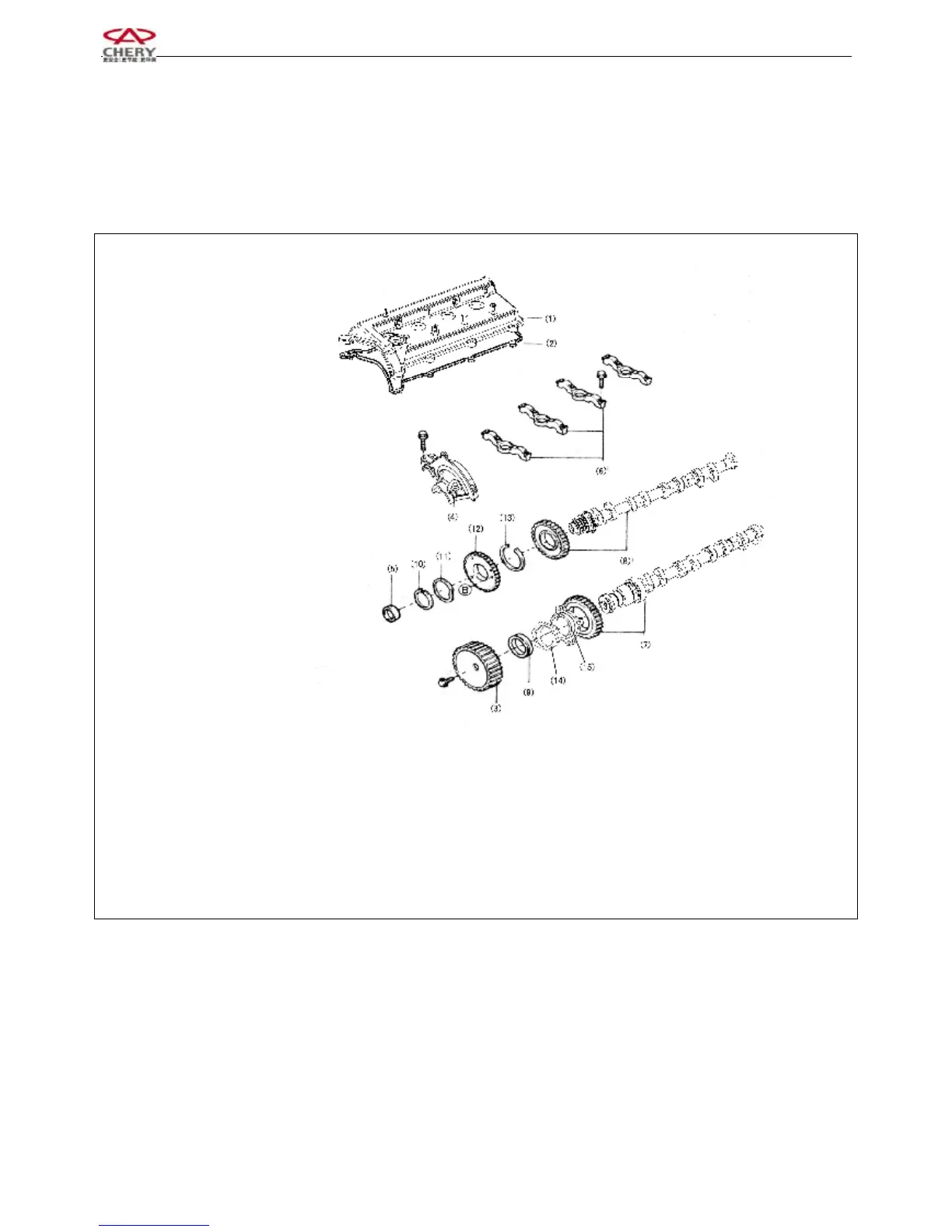

1. Structure Diagram
(1) Cylinder head chamber cover assembly
(2) Cylinder head cover gasket
(3) Camshaft timing belt
(4) Camshaft cover
(5) Blanking cover
(6) Camshaft bearing cap
(7) Exhaust camshaft assembly
(8) Intake camshaft assembly
(9) Camshaft oil seal
(10) Axial spring retainer ring
(11) Saddle washer
(12) Intake camshaft sub gear
(13) Transmission ring
※: C omponents which may
not be reused
Unit: N·m(kg·cm)
