Chery QQ Service Manual BCM Computer Control System
switch position connection to the
instrument
conductance
ON 12-11 Yes Front driver side secure
switch
OFF 3-12 Yes
On the door interior panel of the drive side, an rear window secure switch button is
provided. Push the button, the power windows switches of the by-driver side and the
both rear door windows are deactivated. Then the corresponding window switches can
only be controlled from the window switch on the driver side.
Description of the switches
Among all the four doors, the control switch for the other three doors, rearview mirror
adjust switch and secure switch are only provided on the front left door.
Note: with the secure switch the switched on the rear doors can be locked. Only when
the secure switch is pulled out, the rear windows can be opened and closed with these
switches.

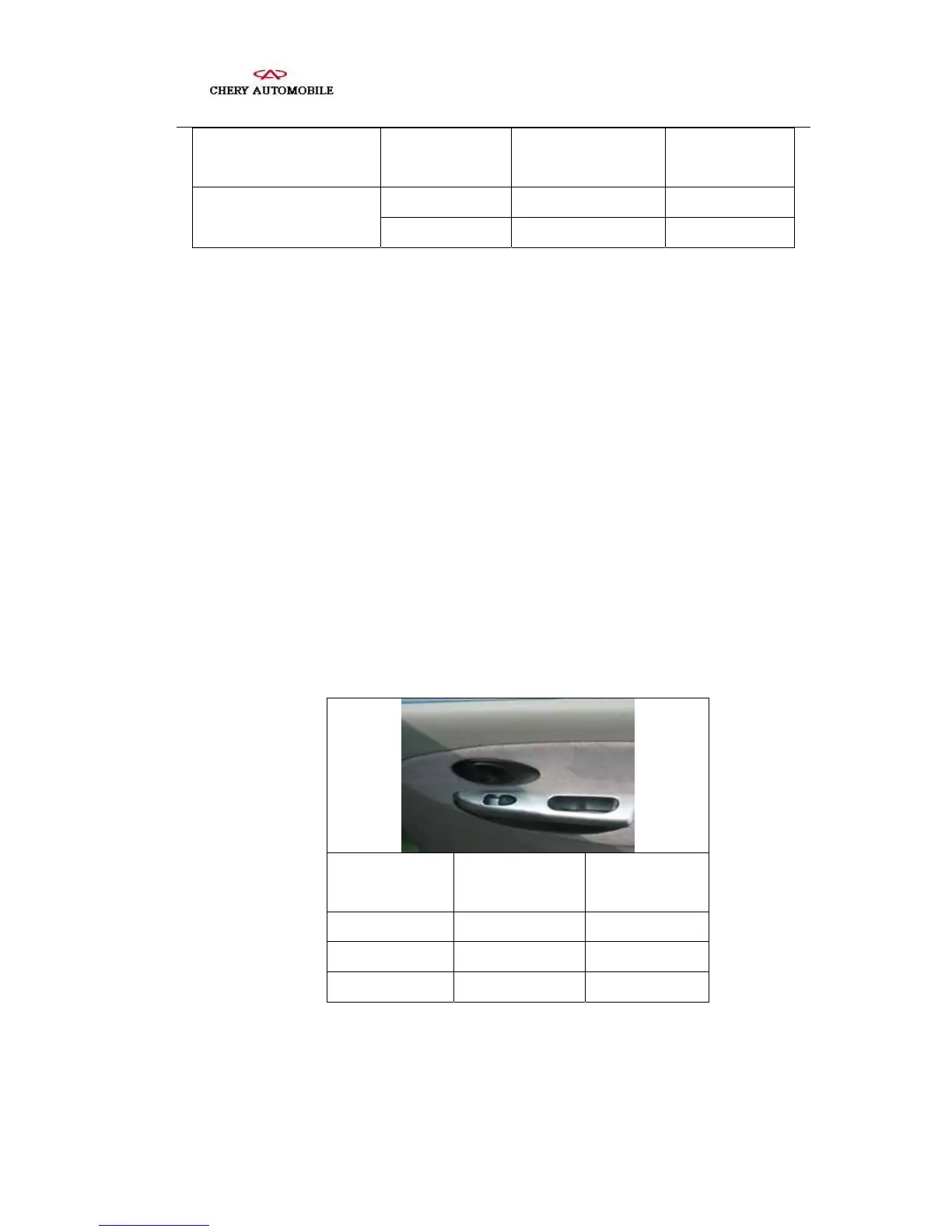

（3）Check the conductance of switches on the passenger door window, rear left door
window and rear right window as shown in the figure. If it does not conform to the figure,
replace the power window switch.
Switch position Connection to
the instrument
Conductance
UP 1-5 Yes
OFF -
DOWN 3-5 Yes
Inspection of conductance of power window switch
（4）Inspection of conductance of power window motor on the front left door
Connected the terminal 1 to positive pole of the secondary cell, the terminal 2 to the
- 114 -
