Chery QQ - Crank Connecting Rod Mechanism; Structure Diagram

Chery QQ Service Manual Mechanical Part of SQR 472Engine
39
6) Crank Connecting Rod Mechanism

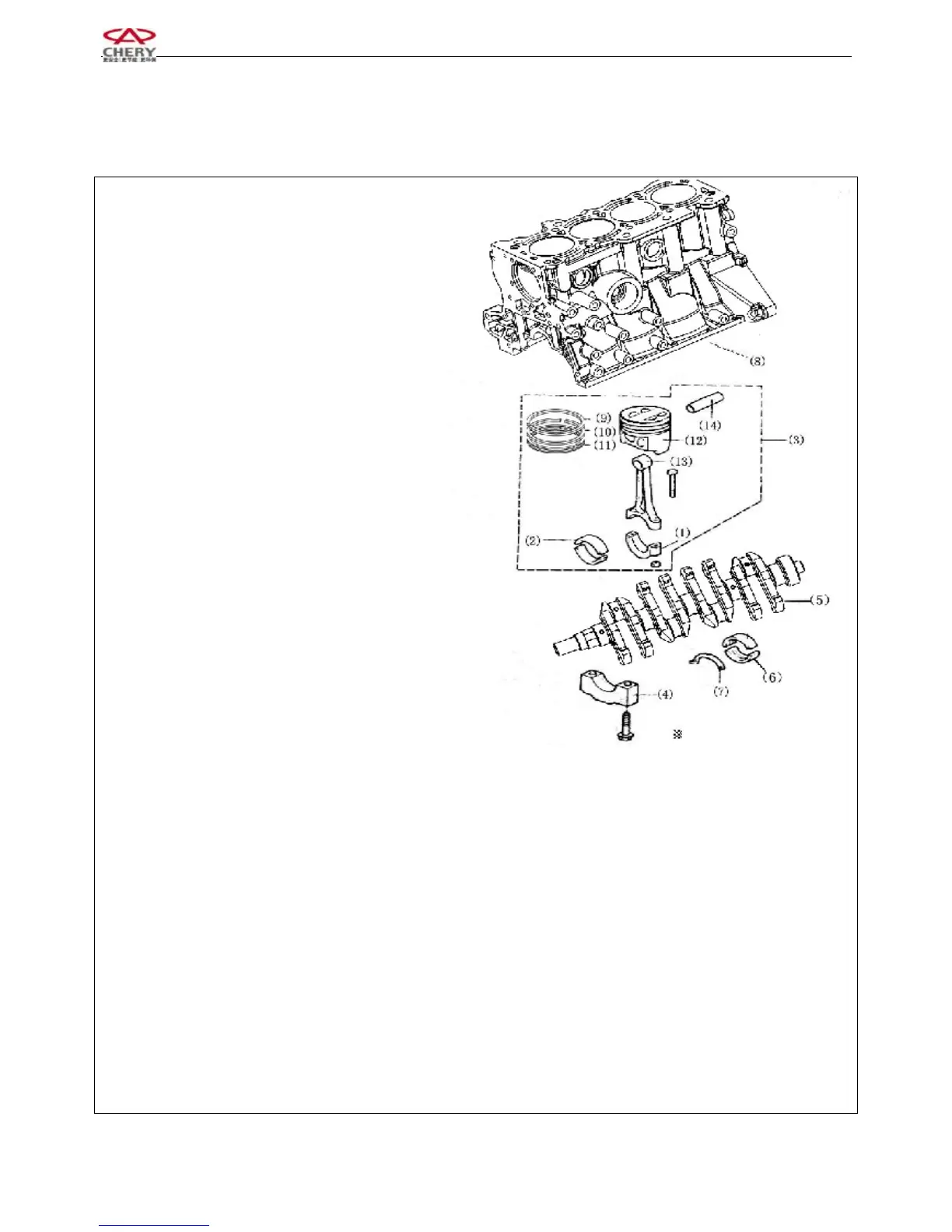

1 Structure Diagram
① Connecting rod cover
② Connecting rod bushing
③ Piston connecting rod assembly
④ Main bearing cap
⑤ Crankshaft
⑥ Crankshaft bearing bushing
⑦ Thrust plate
⑧ Cylinder body
⑨ First ring
⑩ Second ring
⑾ Steel tape combined oil ring
⑿ Piston
⒀Connecting rod
⒁ Piston pin
Components which may
not be reused
