Chery QQ Service Manual Chassis System
Fixture
Install pivot on front surround with
70-80Nm.
Insert two ends of lever and screw with
steering node.
( Use new nuts) with 32-38Nm.
4.Put the pivot forwards.
5. Install steering gimbal assembly.
93

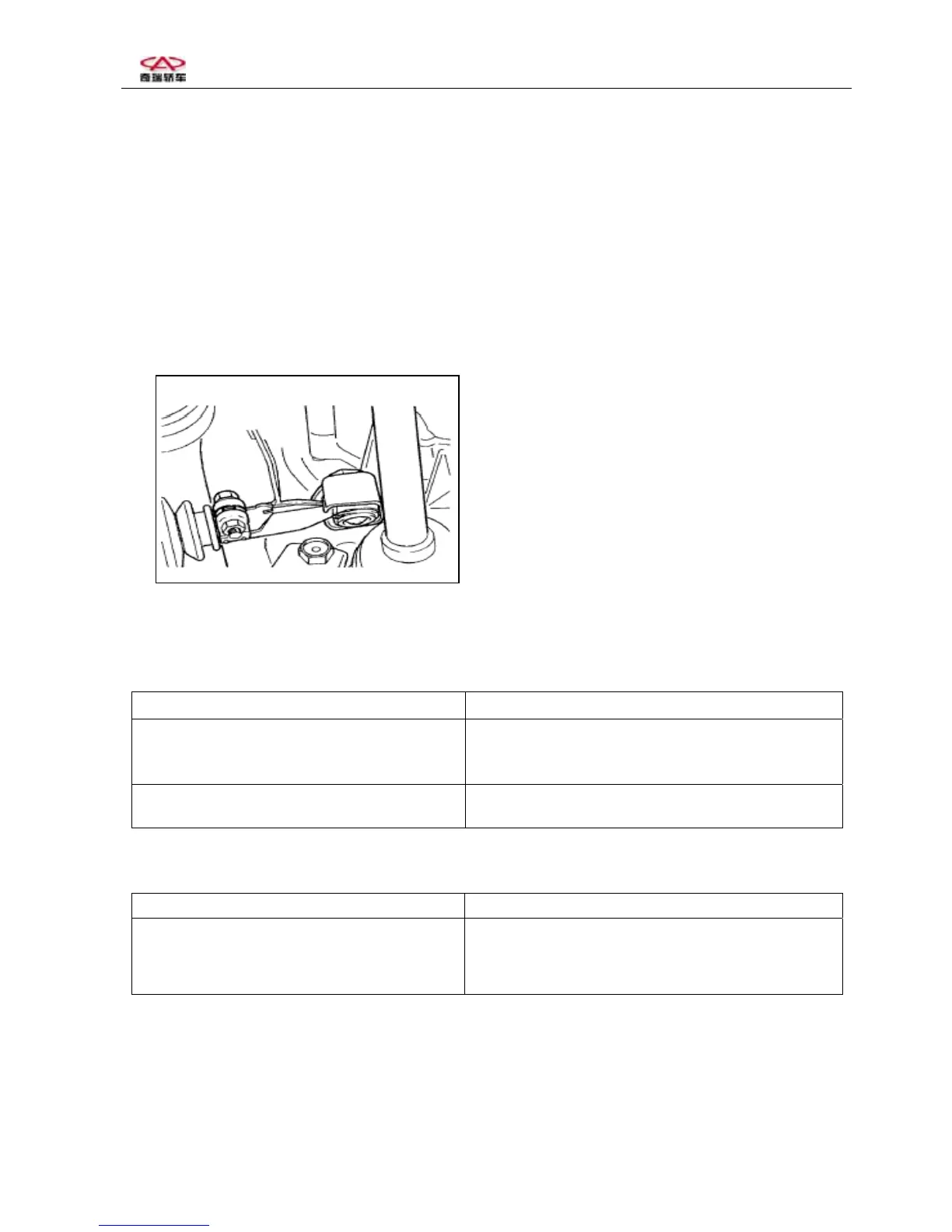

Fixture
Screw steering gimbal assembly with
22.5-27.5Nm.
Description and operation
Instruction for steering system
The turning of steering will produce
following actions:
1. The motion of steering will transfer to
small gear
2. The motion of small gear will transfer to
gear.
3. The teeth of small gear will be joggled
with rack.
4. Rack will move under the force.
5. The force will transfer from transverse
lever to steering node.
6. Steering knuckle turn wheel
Steering wheel and steering column
Common problem and treatment measure
Lock system incapable open lock
Problem Measure
Lock core possible be damage
Check this part
If need to replace part, refer “ The ignition
switch lock core replacing”
Ignition switch is wear out or damage
If need to replace part, refer “ The ignition
switch lock core replacing”
Lock system cannot lock u
Problem Measure
Following parts possible be damage
Check unit
If need to replace part, refer “ The ignition
switch lock core replacing”
On close and locking position, cannot pull out key
