Chery QQ Service Manual Transmission System
-38-
The turning of the shift lever drives the shift and select lever shaft move up and
down, and the select lever shaft also moves up and down, this is for select shaft. The
forward and backward movement of shift lever drives the shift and select lever shaft
turning, and with the movement, the select lever shaft also turns, the select lever shaft
push on the shift and select lever shaft drives the shift head, thereby the shift fork drives
synchronizer ring and reach the expected joggled state.
Under the circumstance of the neutral, spring on the shift and select lever shaft keep
the shift and select lever shaft stay on the neutral. The interlock in the state of release
state prevents from gear when shift.
VI. Reverse 5th Shift Cam
The reverse, 5th shift cam, 5th Interlock bolt and 5th return spring are used to prevent
that shift lever shifts from 5th to reverse directly.

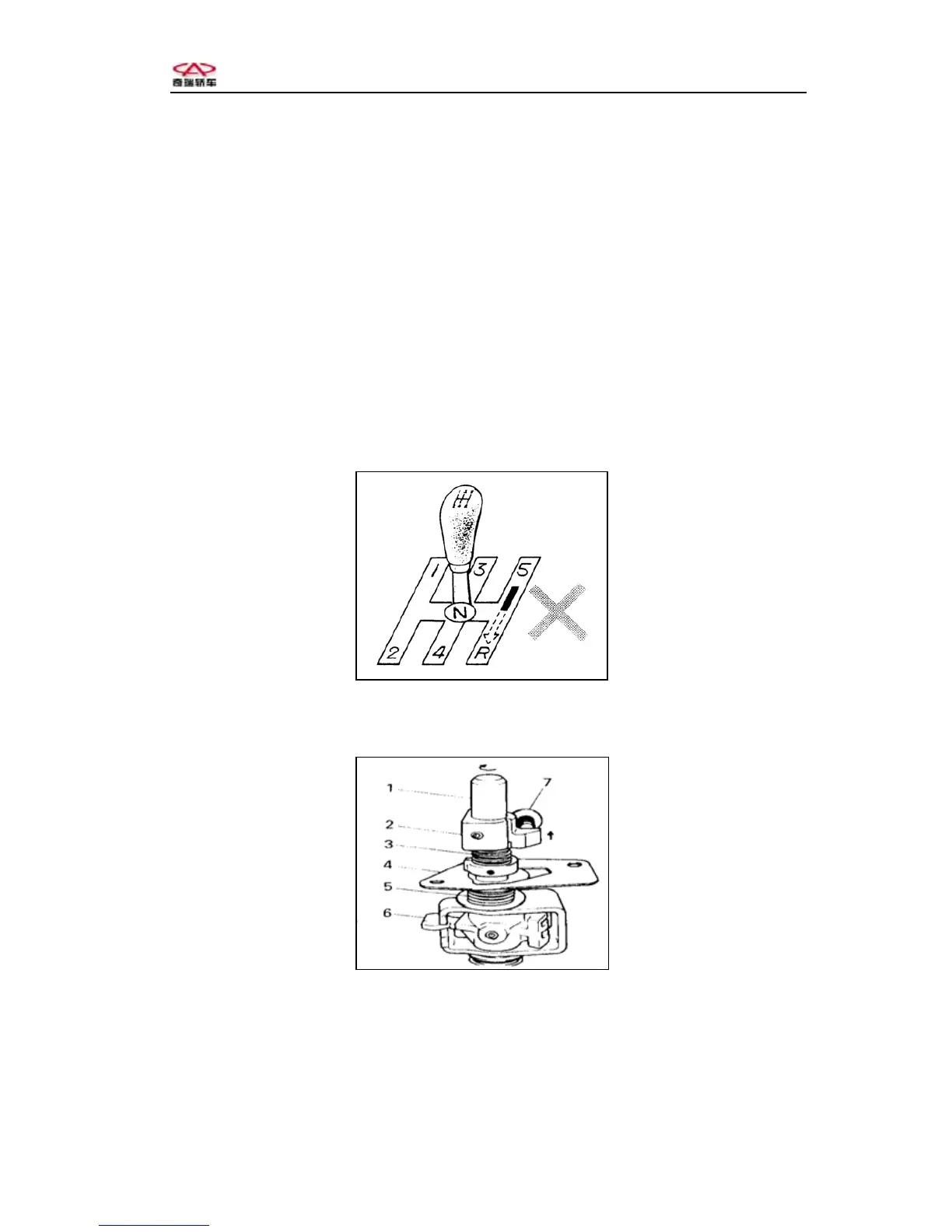

fig. 1-4 reverse,5th shift cam
Operation:
Fig.1-5
1,When gear shift 5th,the reverse, 5th shift cam turns
clockwise with the shift and select lever shaft, under the
effect of the shift cam return spring, the cam contacts reverse,5th Interlock bolt and
