Chery QQ Service Manual Transmission System
-39-
prevent reverse.

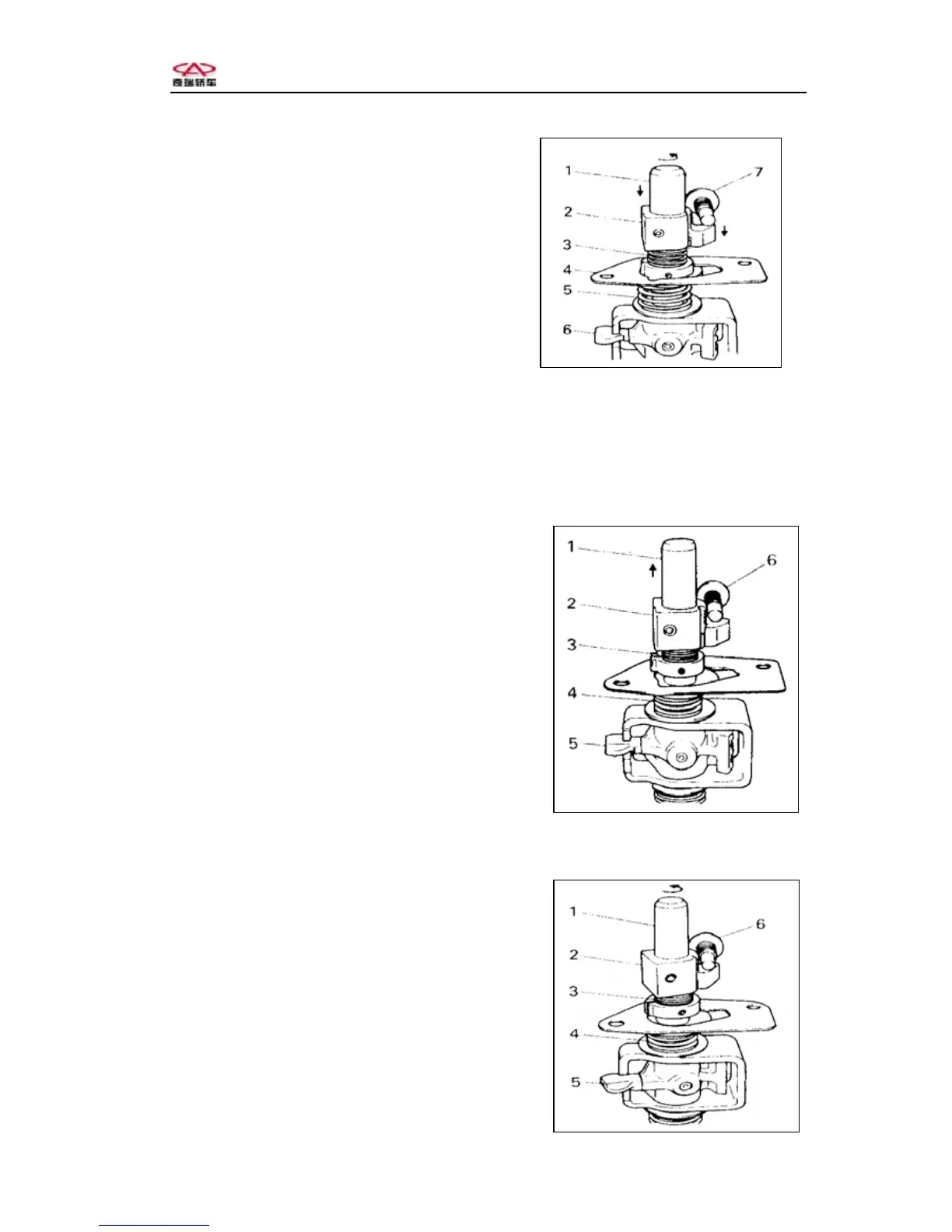

1- Shift and select lever shaft
2-Reverse,5th shift cam
3- Shift cam Return spring
4-Bracket
5-Reverse,5th Return spring
6-Select lever shaft（5th）
7-Reverse,5th restrict bolt
fig.1-6
2. It is allowed to shift from 5th to the middle position, but is not allowed to shift to
reverse. However, when the shift and select lever shaft moves to neutral of 3rd, 4th, the
shift restrict bolt cam cannot effect as the Figure 16.
3.shift select lever shaft to 5th or reverse， shift cam and bolt fixup.
1- Shift and select lever shaft
2-Reverse 5th shift cam
3- Shift cam Return spring
4-Reverse 5th return spring
5- Select lever shaft
6-Reverse 5th restrict bolt
Fig.1-7
4.Shift to reverse do not connect shift cam.
Chery Automobile Co., Ltd
1- Shift and select lever shaft
2-Reverse,5th shift cam
3-Shift cam Return spring
4-Reverse,5th Return spring
5- Select lever shaft
6-Reverse,5th restrict bolt
