Section Two Front Suspension Frame
Maintenance of the front suspension frame

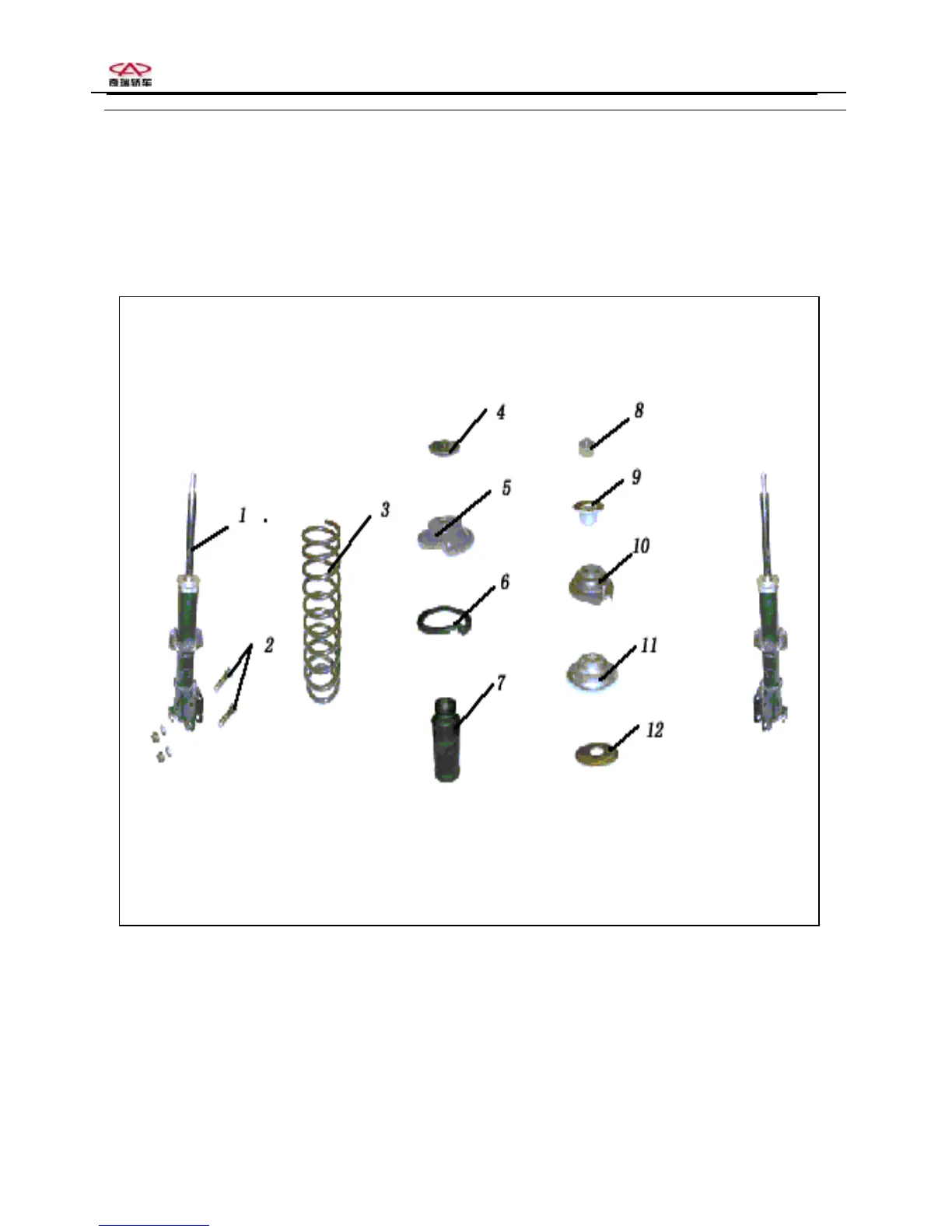

I. Configuration Diagram of Front Suspension Frame
1、 Dampener; 2、Joining bolt; 3、Spiral spring; 4、Thrust bearing; 5、Spring upper stand washer; 6、
Spring lower stand washer; 7、Spacing block; 8、Screw nut;9、Washer; 10、External connection sleeve;
11、Dampening washer; 12、Thrust bearing stand
