CHERY SQR7080 EZ Drive SERVICE MANUAL
MECHANICAL TRANSMISSION – PRESSURE SENSOR
Tightening torque (unit: DAN.M)
Position sensor bolt 0.4
Drive mechanism module nut 1.4
Lifting ring fixing nut 2.1
High-pressure pipeline coupler 1.4
Energy storage 4
Remarks:
Before maintaining the entire automated
mechanical transmission, use a special repair tool
to remove the energy storage (refer to the section
of "ENERGY STORAGE").
Removal:
Use an injector to evacuate the oil tank.
Disconnect the pressure connector .

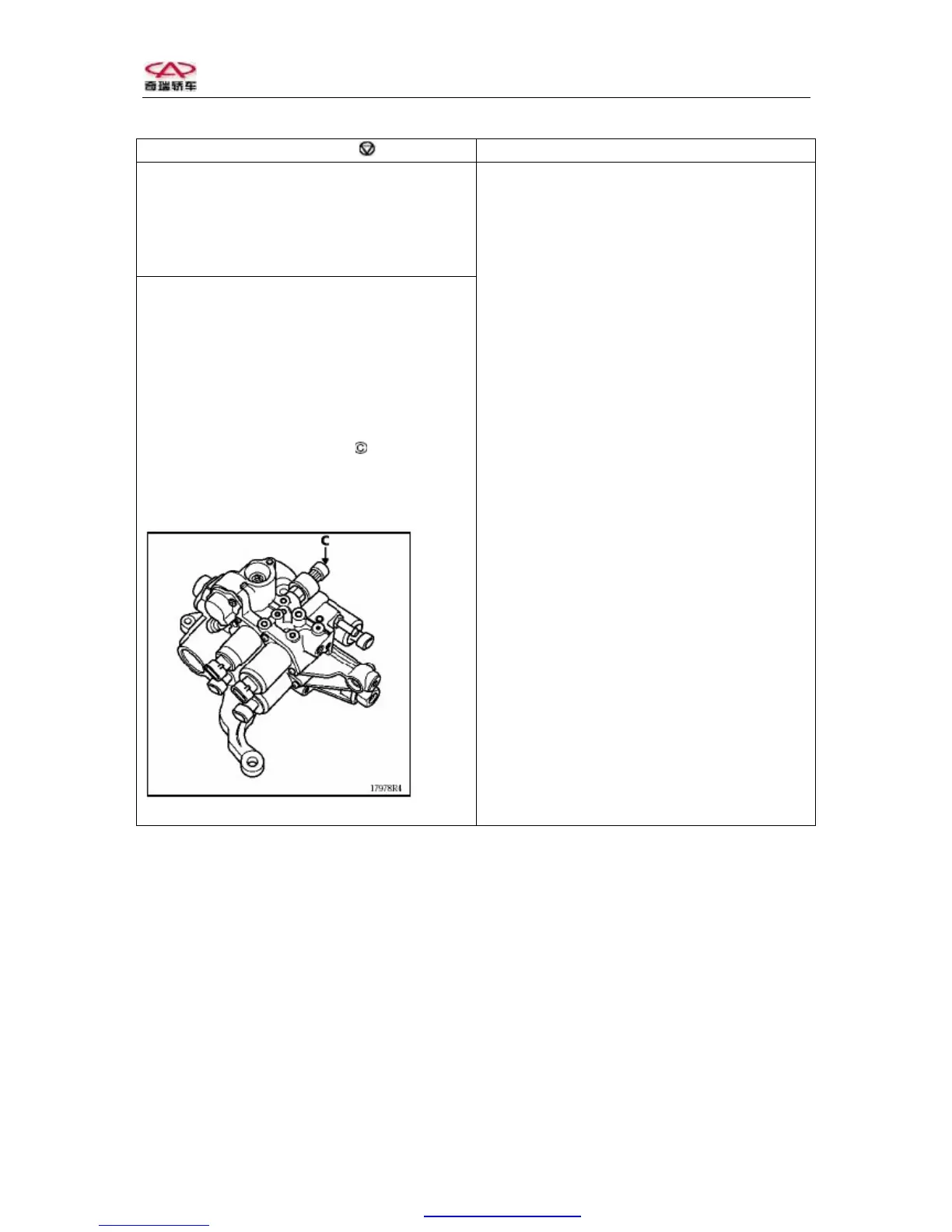

Use a 14 mm precision wrench to remove the
pressure sensor (C).
Remounting:
Carry out the following remounting procedure that
is opposite to the removal procedure.
Fill the ELF RENAULT MATIC D3 SYN
DEXRON oil to the degree that the oil level is 32 to
38 mm higher than the lowest mark line.
Perform the corresponding test by using a special
tool. (Refer to the page 21-36 of section “special
requirements on change of system parts and
components of KIT electrically controlled hydraulic
system”)
Oil filling into oil tank
The mark shown on the oil tank is the lowest
standard.
Carry out the energy storage removal procedure.
Make sure that the oil level is 32 to 38 mm higher
than the lowest mark line.
Important tip:
The oil level will be at the position indicated by the
mark line (MIN) when the energy storage has been
fully inflated (15 seconds after ignition).
