Chery QQ Service Manual Transmission System
-28-
The cable is abraded badly.
The cable is abraded
The cable is bended or knotted.
The boot is broken.
The top is frayed.
Fixing the clutch cable.
Fixing:
Before fixing cable, lubricants must be laid on the cable top and the connector.
In the cab, use screwdriver or a pair of pliers to pull the cable and hang it on the
pedal, then connection inner cable and release shaft..
N.m Kg-m 1b-ft
Spray waterproof sealed
adhesive on the fixing
surface of cable and fix the
cable on the front wainscot
with two bolts.
Switch lock nut
Torque
4-7 0.4-0.7 3.0-5.0
Tighten connect nut, turn the connect nut to adjust free play specification of the cable.
Check if the working state of clutch is normal while the engine is running.

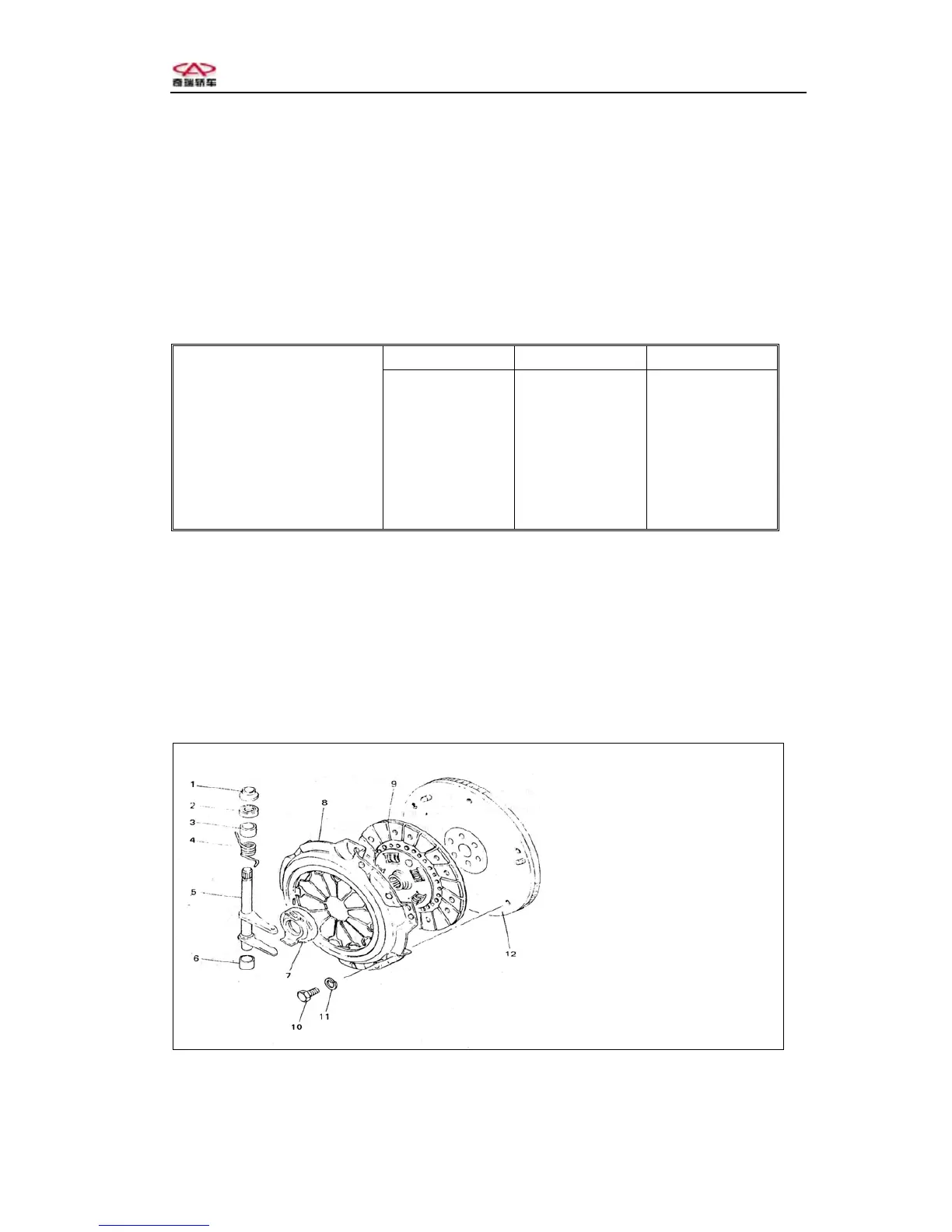

Section 4 Disassembling Repair
Disassembling the pressure plate assembly, clutch disc assembly and
flywheel.
1,Release fork cover
2,Release fork seal
3,Spacer NO.2
4,Return spring
5,Release fork
6,Spacer NO.1
7,Release fork bearing
8,Pressure plate assembly
9,Clutch disc assembly
10,Pressure plate assembly bolt
11,Gasket spring
12,Flywheel
