Chery QQ Service Manual Transmission System
-29-

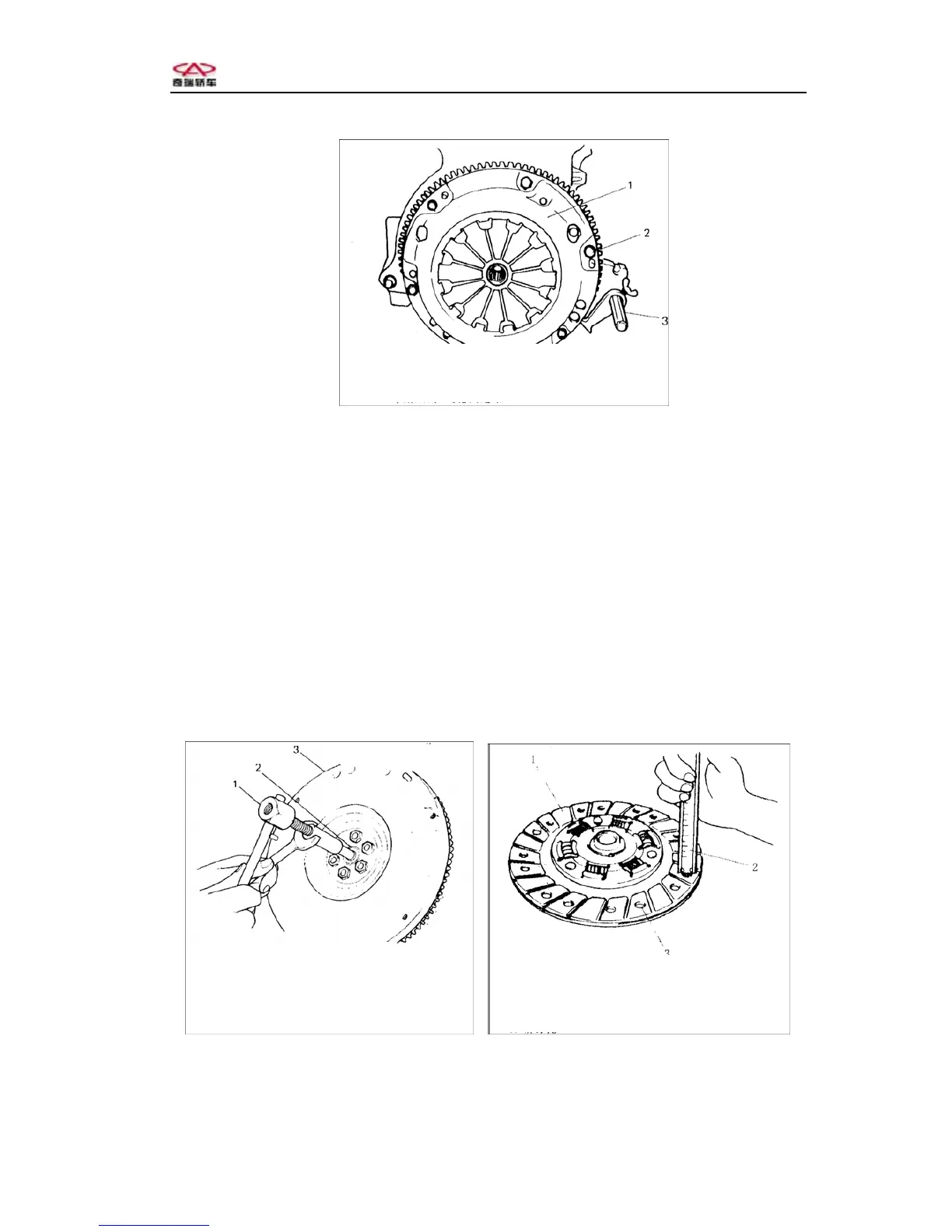

1.Fix the flywheel with special tool, take apart the bolt of the pressure plate assembly,
Pressure plate assembly and clutch disc assembly.
1. Pressure plate assembly 2. Bolt
3. Special tool (flywheel fixing bracket)
Disassembling Pressure plate assembly.
2.Pull up the input shaft input shaft bearing with special tools.
Check the input shaft bearing.
Check if the input shaft bearing runs smoothly. If appears abnormity, please
replace the bearing.
Clutch disc assembly.
Measure the depressed depth (it is the distance between rivet and the surface of disc
of rivet. In any hole, if the depth reaches the usage limit, please replace the clutch disc
assembly.
1、 Special tool
2、 Input shaft bearing
3、 Flywheel
1、 Clutch disc assembly
2、 Tool
3、
Rivet
Chery Automobile Co., Ltd
