CHERY SQR7080 EZ Drive SERVICE MANUAL
MECHANICAL TRANSMISSION – PUMP
Tightening torque (unit: DAN.M)
M8 bolt for electric pump set 2.4
M10 bolt for electric pump set 4.4
High-press pipeline coupler 1.4
Energy storage 4
M6 bolt for electric pump 1
Remarks:
Before maintaining the entire automated mechanical
transmission, use a special repair tool to remove the
energy storage (refer to the section of “ENERGY
STORAGE”).
Removal:
Remove the battery.
Use the injector to evacuate the oil tank.
Remove:
- The battery
- The air casing
Disconnect the clutch cable.
Remove:
- Electronic injection computer
- High-pressure pipeline
- Low-pressure pipeline
- Connectors
- Fasteners on the transmission housing
- Energy storage
- Three fixing bolts for electric pump set
(see the last section)
- Oil tank

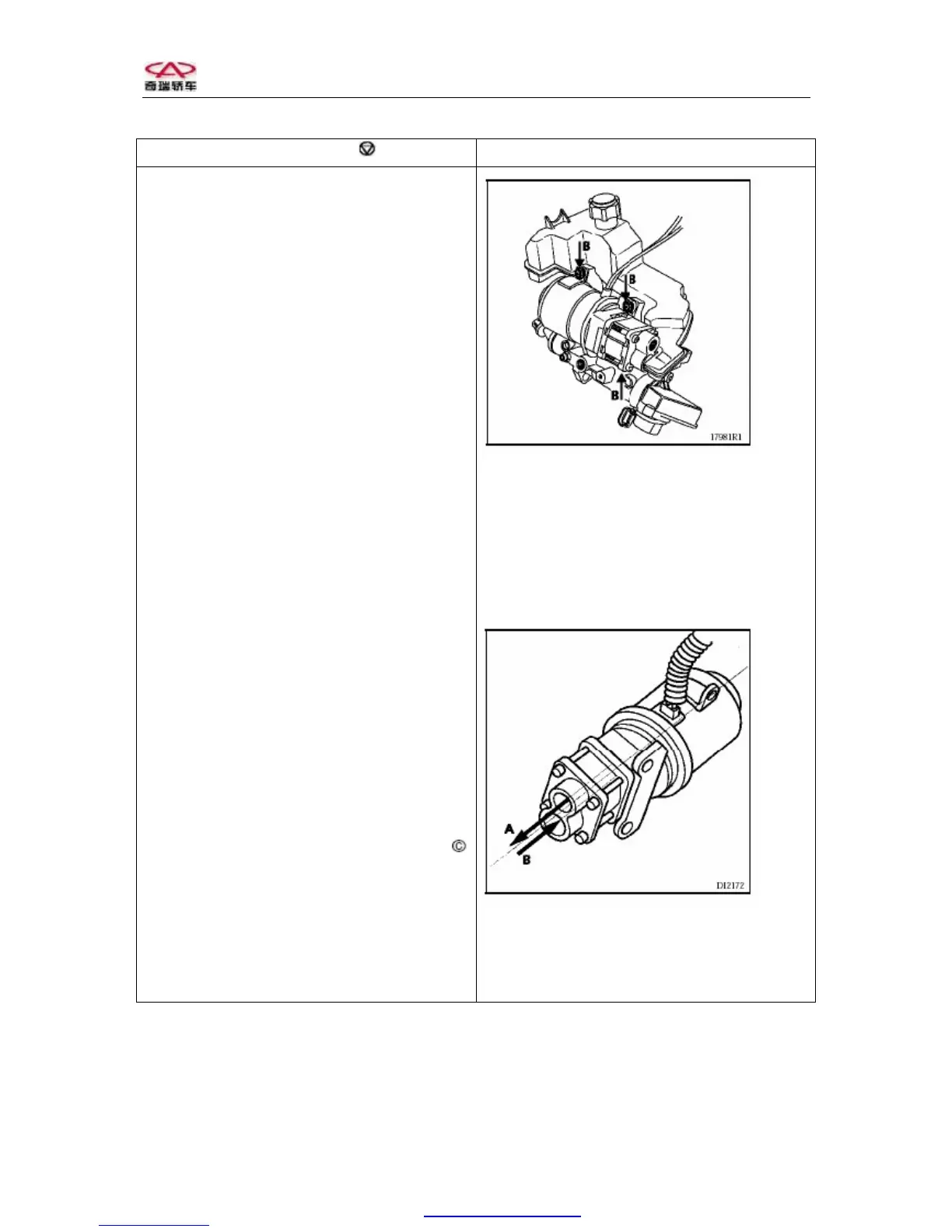

- Remove the pump through taking out the
three bolts (B)
Remounting:
Carry out the remounting procedure that is opposite
to the removal procedure.
Fill the ELF RENAULT MATIC D3 SYN
DEXRON oil to the degree that the oil level is 32 to
38 mm higher than the lowest mark line.
A: press out
B: suck in
