Chery QQ Service Manual BCM Computer Control System
The rearview mirror of Chery S11 is electric controlled. If the driver turns the turning
switch on, turning light of the rearview mirror gives turning signal in the corresponding
direction. Turn the adjust button in the car to adjust the angular of the mirror in upward,
downward, leftward or rightward direction.
In the power rearview mirror on the both side, permanent magnet motors are provided,
four currents, i.e. two positive and two negative, can be attained by switching the two
motor switches, so that adjustment in different direction can be done.
The control switches are provided in the combination switch on the driver side. When the
start-up switch is ON, operate the switches in the four directions to select the rearview
mirror to be adjusted. On the control switch panel there are L, R printed, L stands for left
rearview mirror, and R for right rearview mirror, stop operating is in the middle. After
the mirror to be adjusted is selected, operate the switch in four directions
above-mentioned, the space angle of the selected mirror is adjusted. After the adjustment,
turn the switch back to the middle. In the figure power rearview mirror and the switches
thereof are shown.

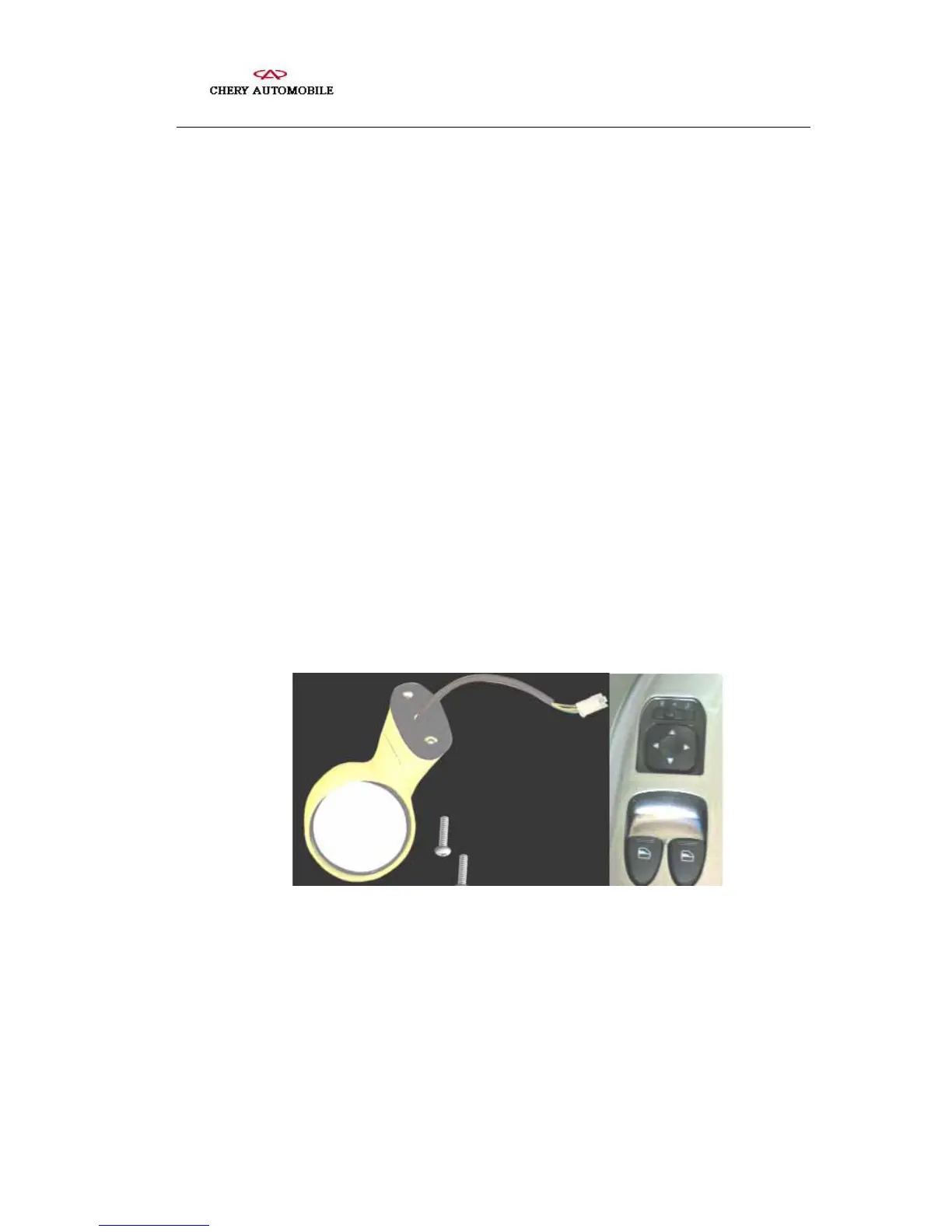

Power rearview mirror
1- Left rearview mirror assembly
2- Wire connector 3- Control switch
Notice：
If adjust the rearview mirror manually, do not go beyond the range of adjust angle,
otherwise the function or service life thereof will be influenced.
- 121 -
