CHERY SQR7080 EZ Drive SERVICE MANUAL
MECHANICAL TRANSMISSION
– CLUTCH POSITION SENSOR
Tightening torque (unit: DAN.M)
Clutch position sensor bolt 0.4
M8 bolt for electric pump set 2.4
M10 bolt for electric pump set 4.4
High-pressure pipeline coupler 1.4
Lifting ring fixing nut 2.1
Energy storage 4
Remarks:
Before maintaining the entire automated
mechanical transmission, use a special repair tool
to remove the energy storage (refer to the section
of "ENERGY STORAGE").
Remove:
– Clutch actuator support
Disconnect the clutch position sensor connector.

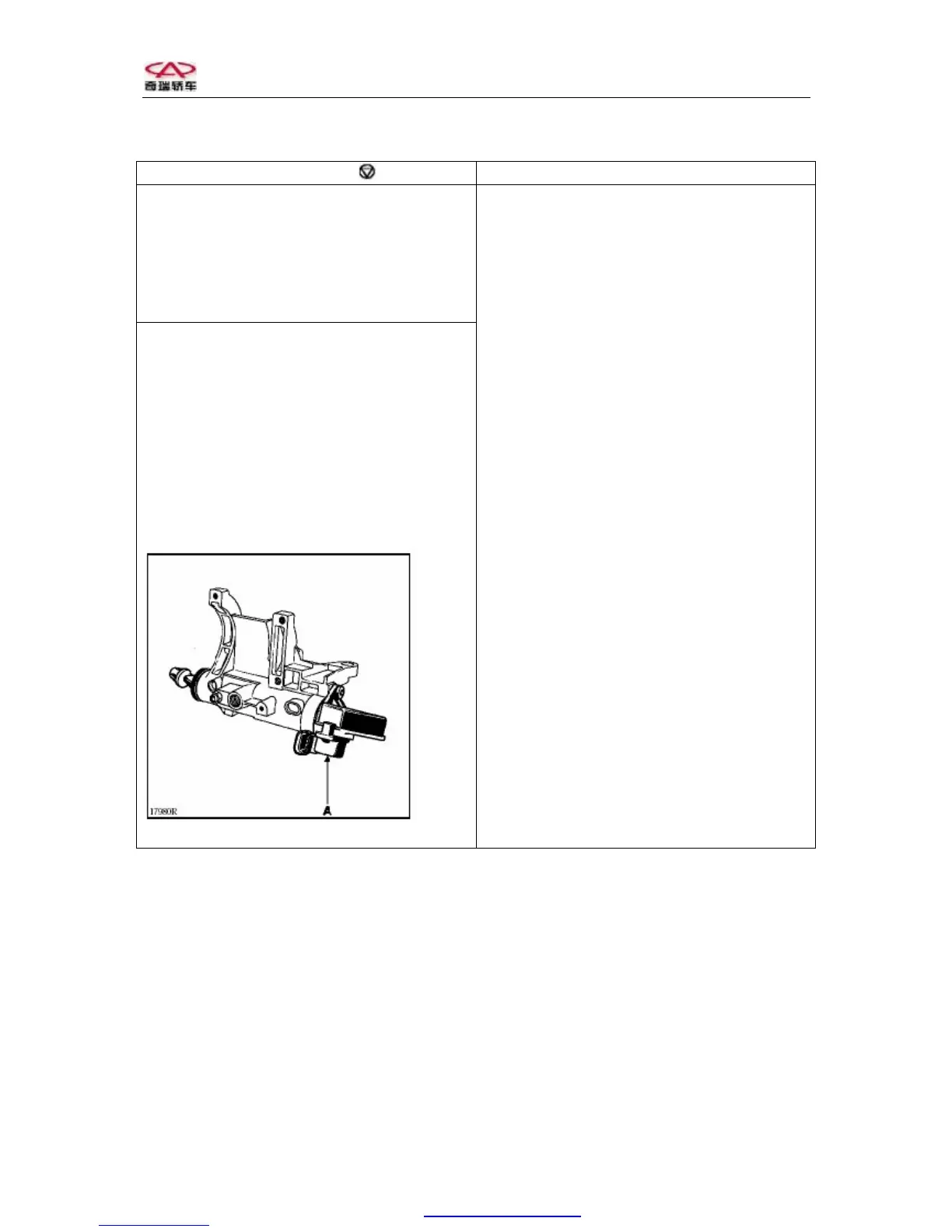

Remove the clutch position sensor. (A)
Remounting:
Carry out the following remounting procedure that
is opposite to the removal procedure.
Perform the corresponding test by using a special
tool. (Refer to the page 21-36 of section "special
requirements on change of system parts and
components of KIT electrically controlled hydraulic
system")
Oil filling into oil tank
The mark shown on the oil tank is the lowest
standard.
Carry out the energy storage removal procedure.
Make sure that the oil level is 32 to 38 mm higher
than the lowest mark line.
Important tip:
The oil level will be at the position indicated by the
mark line (MIN) when the energy storage has been
fully inflated (15 seconds after ignition).
