CHERY SQR7080 EZ Drive SERVICE MANUAL

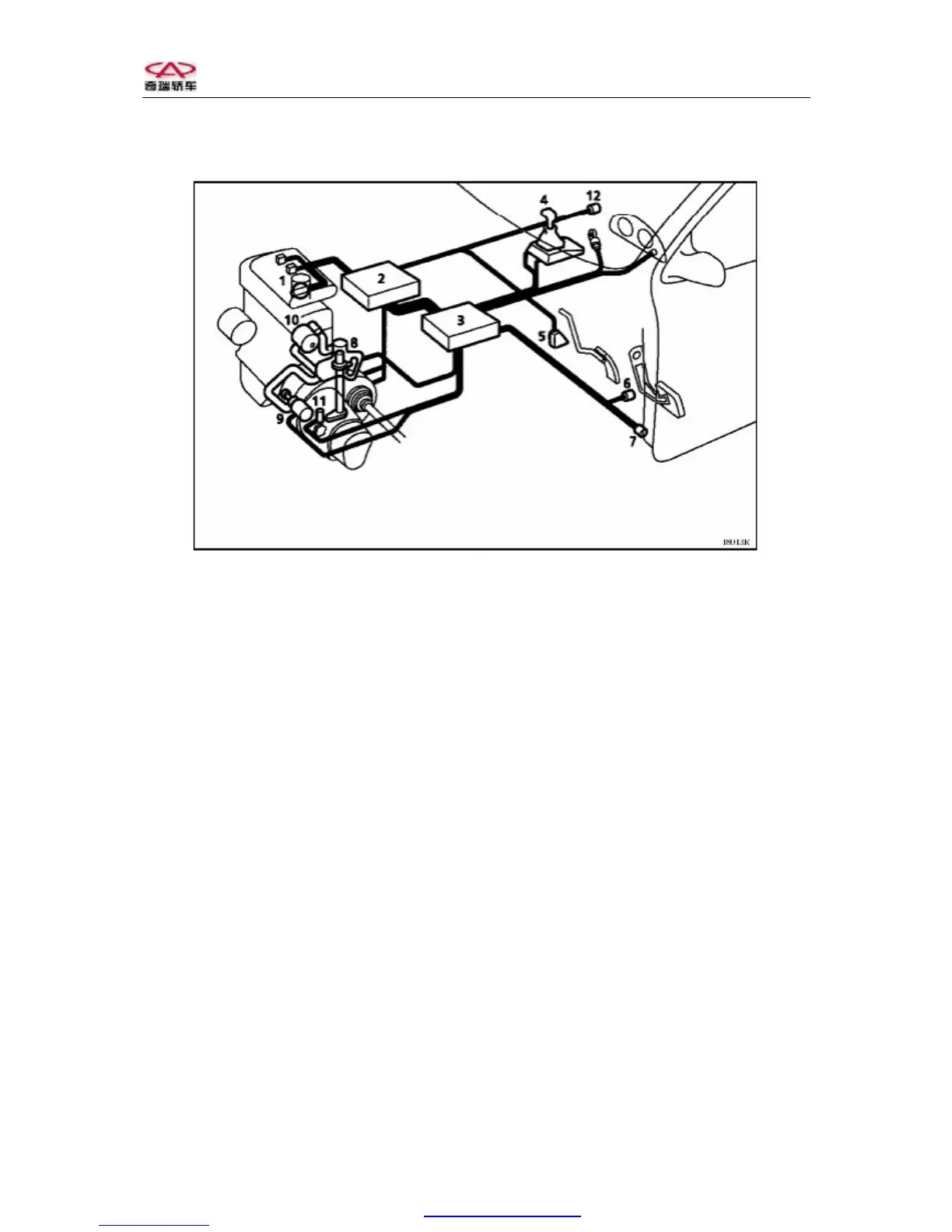

SCHEMATIC DIAGRAM OF MECHANICAL TRANSMISSION
1. Throttle
2. Engine computer
3. Transmission computer
4. Gearshift handle
5. Position sensor for accelerator & brake pedals
(load sensor)
6. Foot brake contact
7. Front-door contact
8. Transmission mechanism for gear position
selection and speed change
9. Transmission mechanism of the clutch
10. Power supply pack
11. Original speed sensor
12. Handbrake contact
