• Chery QQ Service Manual Transmission System
·When lifting the transaxle, push drive shaft right universal coupling into
differential.
·Push the drive shaft universal coupling to the right position, and joggle the
Drive shaft and Differential.
Caution:
Spread lubricant on the shift and select lever shaft spacer, do not spread lubricant
on the strengthen pole spacer.
Caution:
·When hang the transaxle，drive shaft, do not scrape oil seal.
·When put the drive shaft universal coupling on the differential gear, do not
hammer the universal coupling.
· Clip wiring harness。
· After connecting the clutch cable, be sure to adjust the pedal free play .
· Fill oil in the transaxle .
·Connect the battery cable, check if the engine, transaxle work normally.

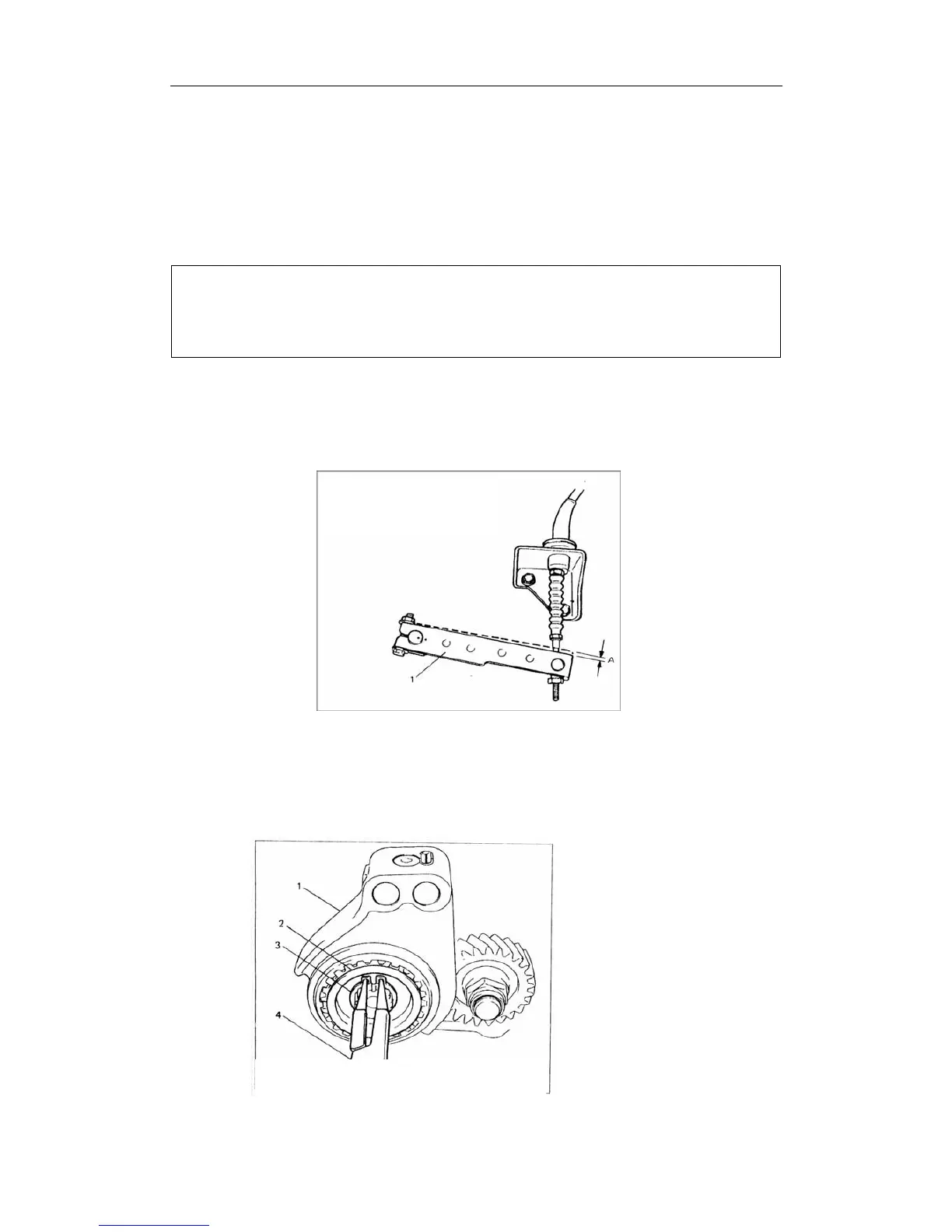

1、 Clutch release
A: Release shaft 2-4mm
III, Transaxle disassemble
（1） 5th gear
1．Loosen 8 bolt, remove the transaxle left side case.
2．Remove snap ring use special tool.
53
1,5th shift fork 2,Hub
3,Snap ring 4,Special tool
