Chery QQ Service Manual BCM Computer Control System
Pages 107-108 show the circuit diagram of power supply of the power
window
Ⅵ.The structure, Inspection and Repair of the power rearview mirror
1. Internal rearview mirror

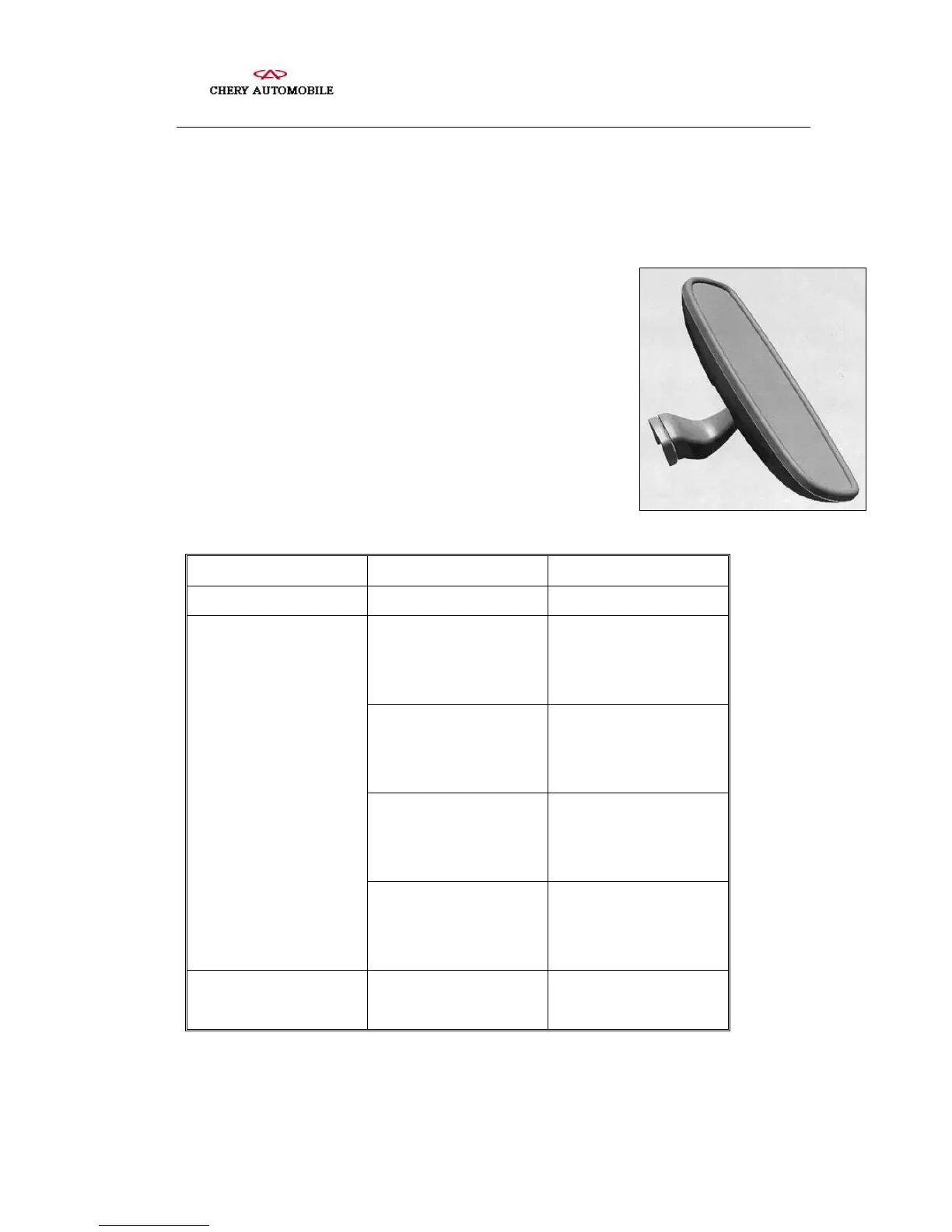

External appearance of the assembly
Technical
parameter
No. Parameter Criterion
1 reflectivity of the mirror ≥40%
Angular of upward
adjustment of the rearview
mirror
≥22
Angular of downward
adjustment of the rearview
mirror
≥28
Angular of leftward
adjustment of the rearview
mirror
≥30°
2
Angular of rightward
adjustment of the rearview
mirror
≥30°
3 Angular of adjustment of
handle
4°30ˊ
- 119 -
