Chery QQ - Propeller Shaft

Chery QQ Service Manual Transmission System
Chapter 6 Propeller Shaft
Universal joint
This propeller shaft is available for the vehicles with manual transaxles.
I． Summarization
The front wheel driven shaft adopts universal joint and the differential.

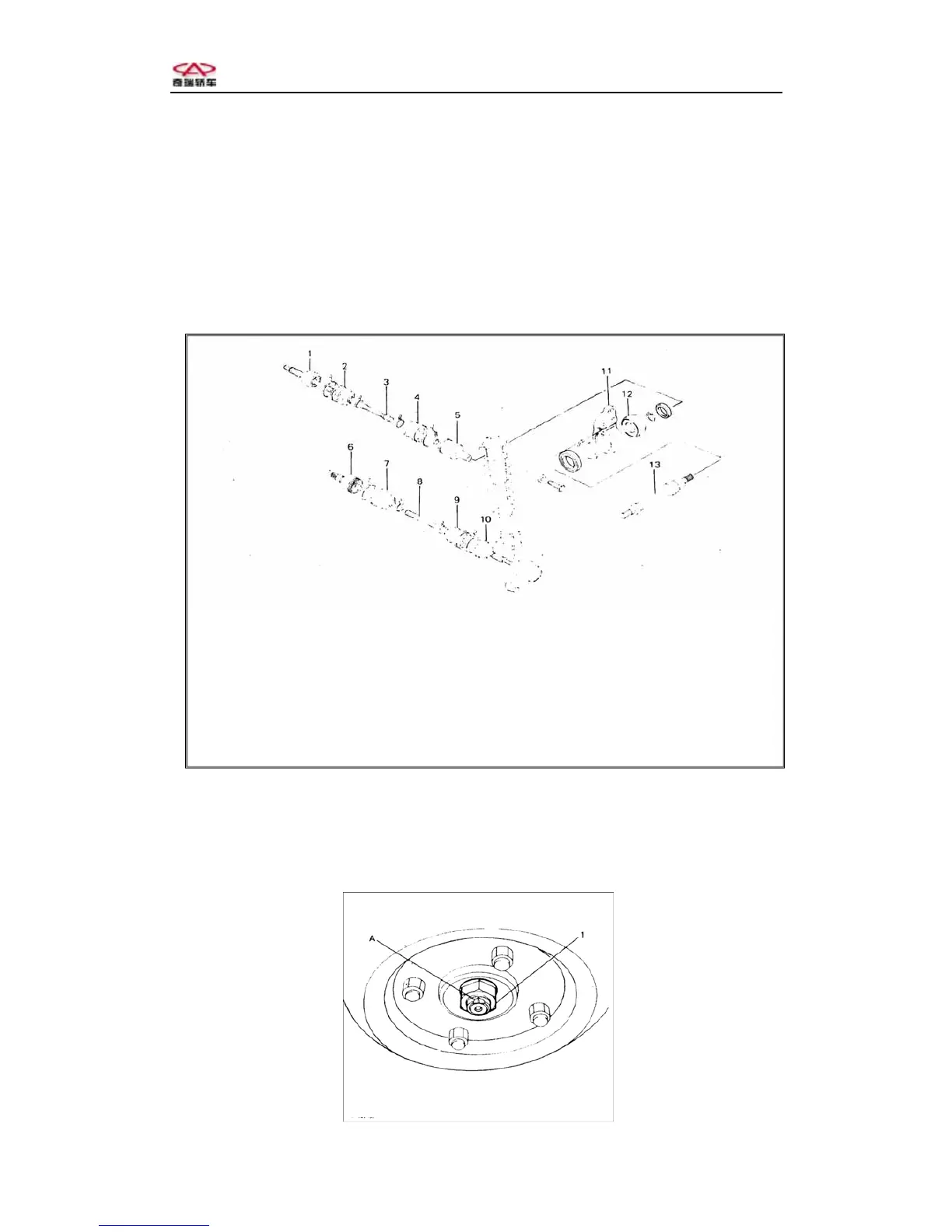

1. Wheel universal joint (right) 2. Boot
3. Driven shaft 4. Boot
5. Differential universal joint (right) 6. Differential universal joint (left)
7. Boot 8. Driven shaft
9. Boot 10. Wheel universal joint (left)
11. Output shaft bearing race 12. Output shaft bearing
II， Disassemble
1. Disassemble the left shaft.
On the ground:
Loosen the rivet, remove the propeller shaft nut and gasket on the Lift
-99-
1， Driven shaft nut 2， Rive
t
