Chery QQ Service Manual Transmission System
-100-
Chery Automobile Co., Ltd

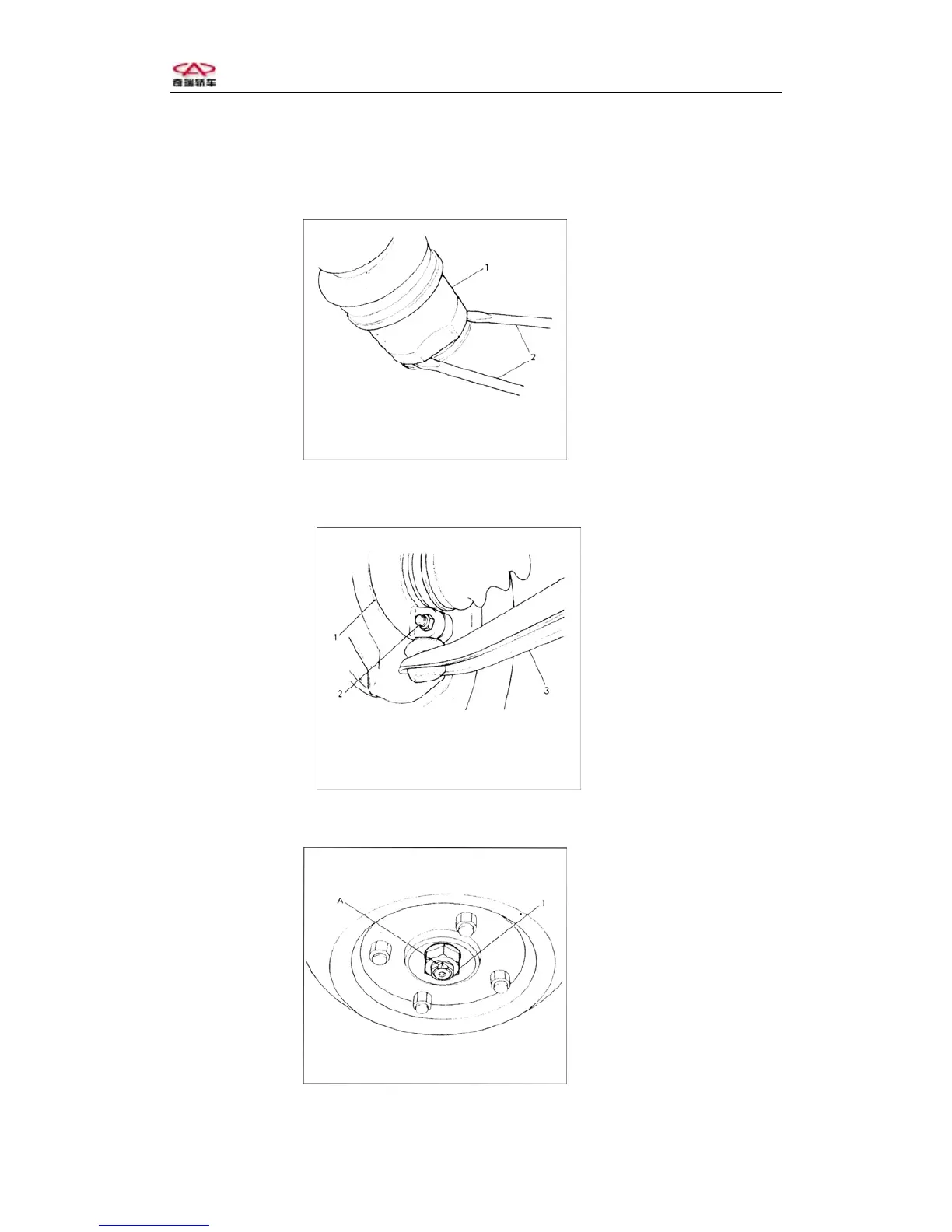

（1）Let out the transaxles oil.
（2）Remove the driven shaft universal joint to make the snap ring. Break away
from the differential universal joint splined hub.
1， Driven shaft universal
j
oint （left）
（3） Remove the joint from the Suspension arm.
（4）Remove the ball joint bolt and nut and disconnect the suspension arm from the
steering .
1， Steering
2， Ball joint bolt and nu
t
3
，
Suspension arm
（5） For disassembling the propeller shaft assembly, first pull out the inner universal
joint, second pull out the wheel universal joint from the steering .
1， Driven shaft nut A， Rive
t
