Chery QQ - Cleanup

Chery QQ Service Manual Mechanical Part of SQR 472Engine
32

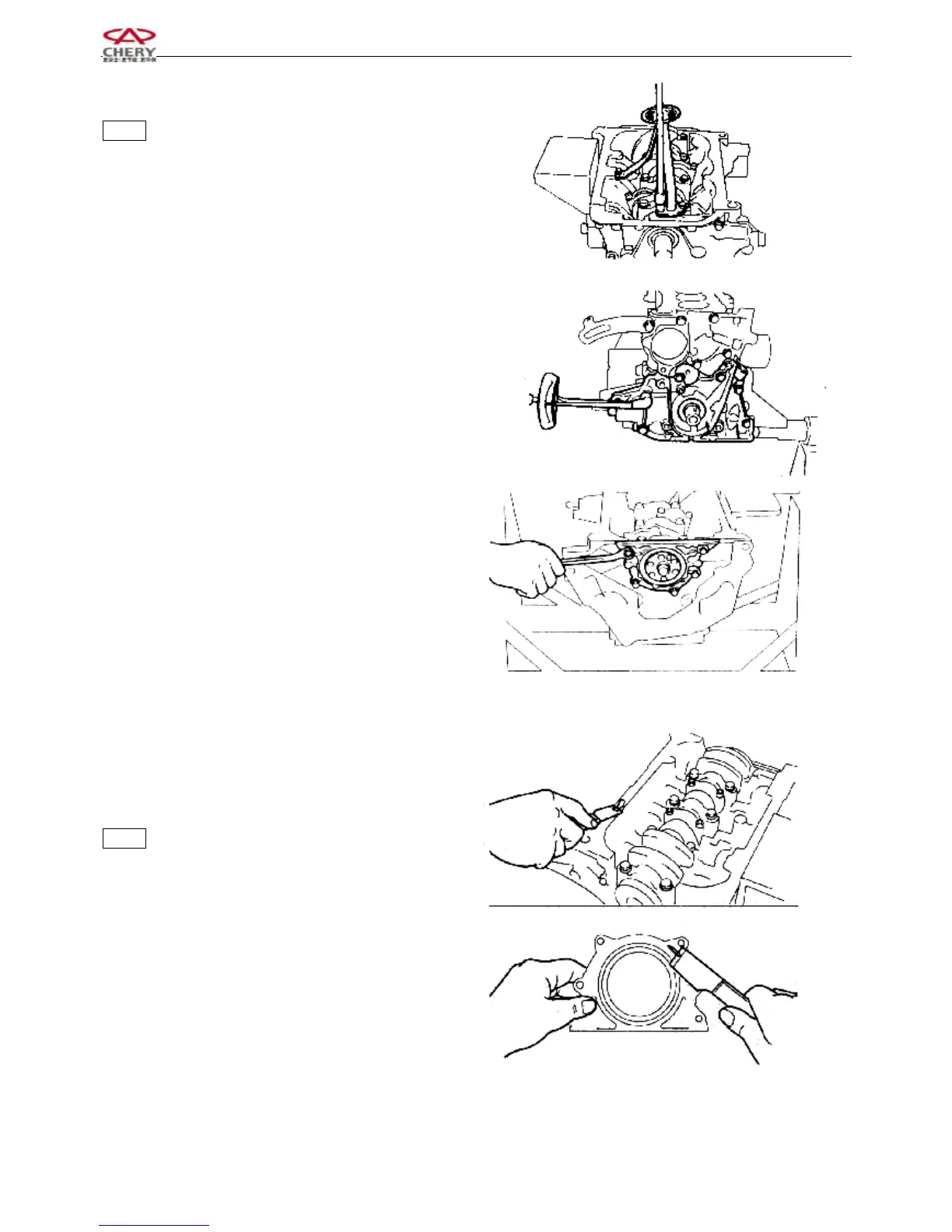

2.2 Remove the engine oil drainer, engine oil collector
gasket
Notice: The oil collector gasket is nonreusable.
2.3 Remove the engine oil pump assembly and the engine
oil pump gasket.
2.4 Remove the rear oil seal bracket.
3. Cleanup
3.1 Remove the old cushion from the oil pan, oil pump
and oil pan bracket with a scraper or shovel.
Notice: Don’t let the fragment of the cushion fall into the
cylinder.
