Chery QQ - Inspection and Repair of BCM Computer Control System; BCM Location, Disassembly and Assembly

Chery QQ Service Manual BCM Computer Control System
Chapter 4 Inspection and Repair of BCM Computer Control System
Ⅰ.General
BCM is abbreviation of Body Control Module of Chery Automobile, which is also
named antitheft computer control unit. It is a device designed to facilitate the driver and
passengers to use some electric devices in the vehicle and simple maintenance.

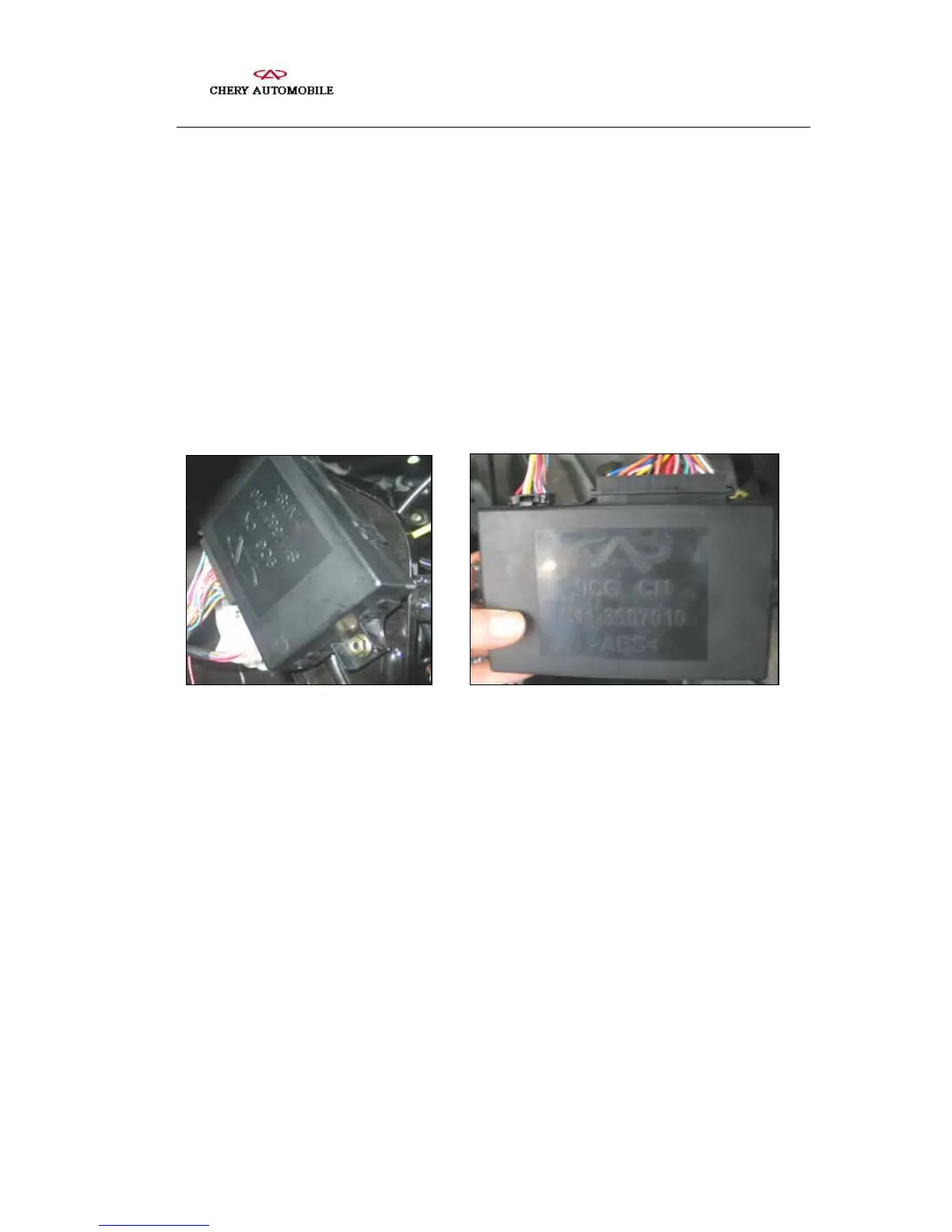

BCM location, disassembly and assembly
Disassembly:
1. Remove the instrument and upper setscrews;
2. Remove the BCM module connector;
3. Remove the nut on it with M10 spanner.
Assembly:
Fix the setscrews with M10 spanner with securing moment at 2.5 -3.5 N·M and then
insert the module connector.
Assembly the instrument.
Ⅱ.Introduction of antitheft control system
The vehicle antitheft control system is designed to implement central monitor with
- 79 -
