Chery QQ Service Manual
compressor does not run. .
It is recommended to use high power electric magnetic clutches.

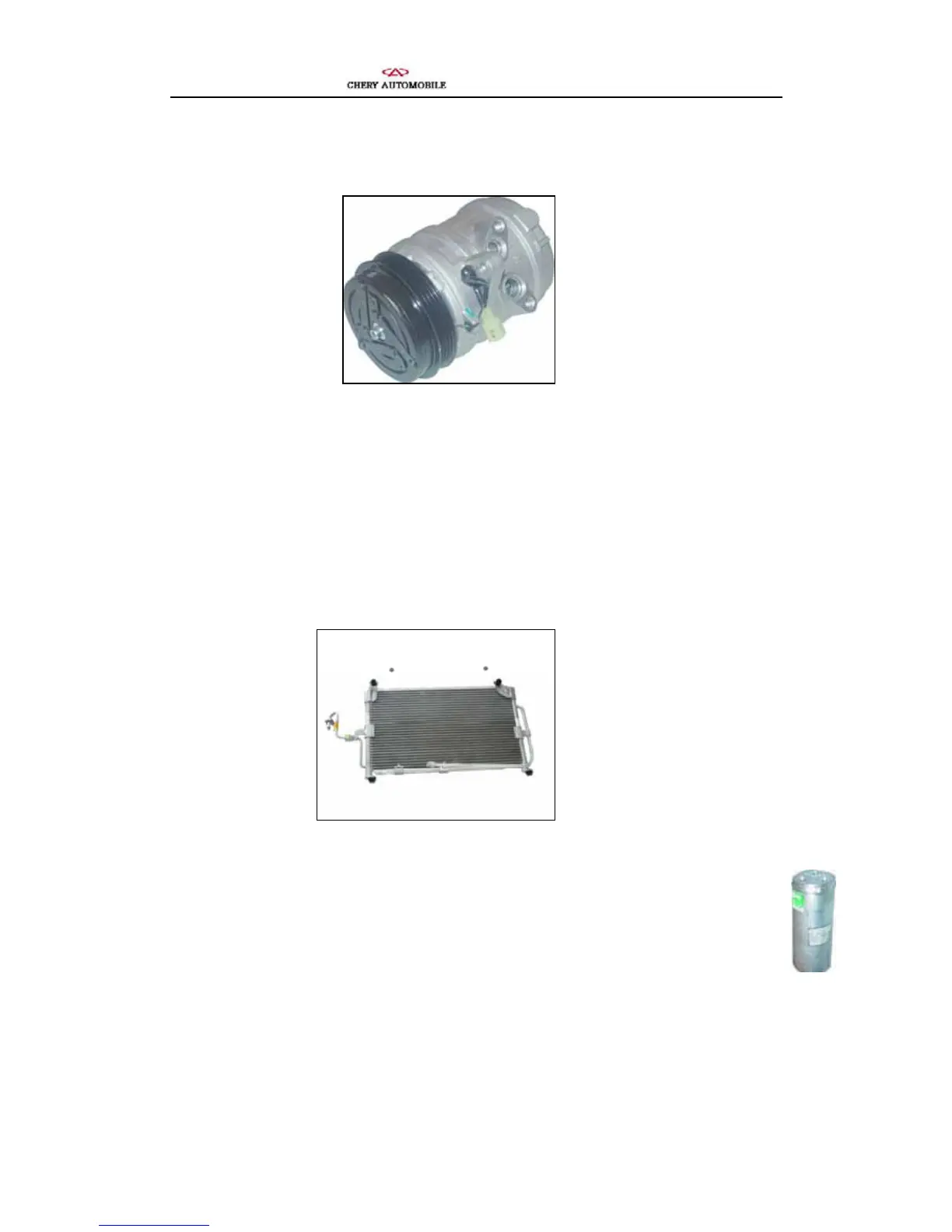

Diagram for the clutch fitted on the compressor
3. Condensator
A condensator serves to change the high temperature and high pressure refrigerant in
gaseity to liquid one by taking away the heat of the refrigerant in gaseity by force.
With similar structure as radiator, the condensator is installed at the most front of the
car so as to upgrade heat dissipation rate and is forcedly cooled by cooling fan.
4. Receiver drier
Stock solution drier has 3 following functions:
A)A liquid reservoir is equal to a temporary buffer for liquefacient refrigerant in
condensator, it used to provide evaporator with liquefacient refrigerant as per the need
of cooling load.
B)The drier serves to remove moisture and contamination in the refrigerant with the
filter and
desiccant sealed in itself.
dryer
