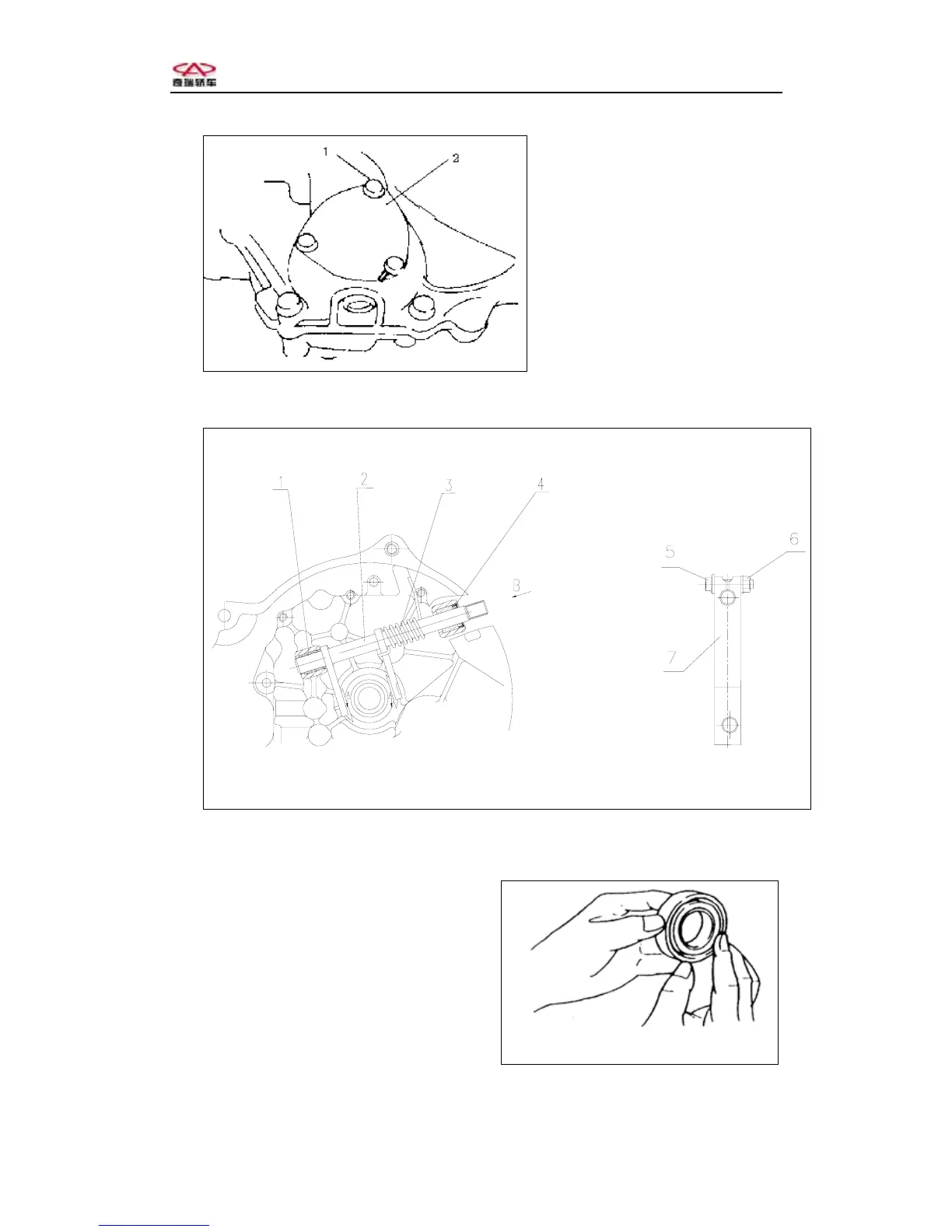

Chery QQ - Clutch Release Shaft

Chery QQ Service Manual Transmission System
1-Bolt
2-Transmission cove
r
board
Fig.3-85
（6）Clutch release shaft system
Fig.3-86 Clutch release shaft
Round
1-Spacer1 2-Release shaft assembly 3-Release spring 4-Spacer 5-Bolt 6-Nut
7-Clip
Disassemble:
1, Disassemble the clip ,loosen the
bolt, remove the clutch
2, Turn the release shaft, take
out the release bearing.
3, Use plier disassembly release
shaft return spring。
Fig.3-89
-91-
Chery Automobile Co., Ltd
