Chery QQ Service Manual Transmission System

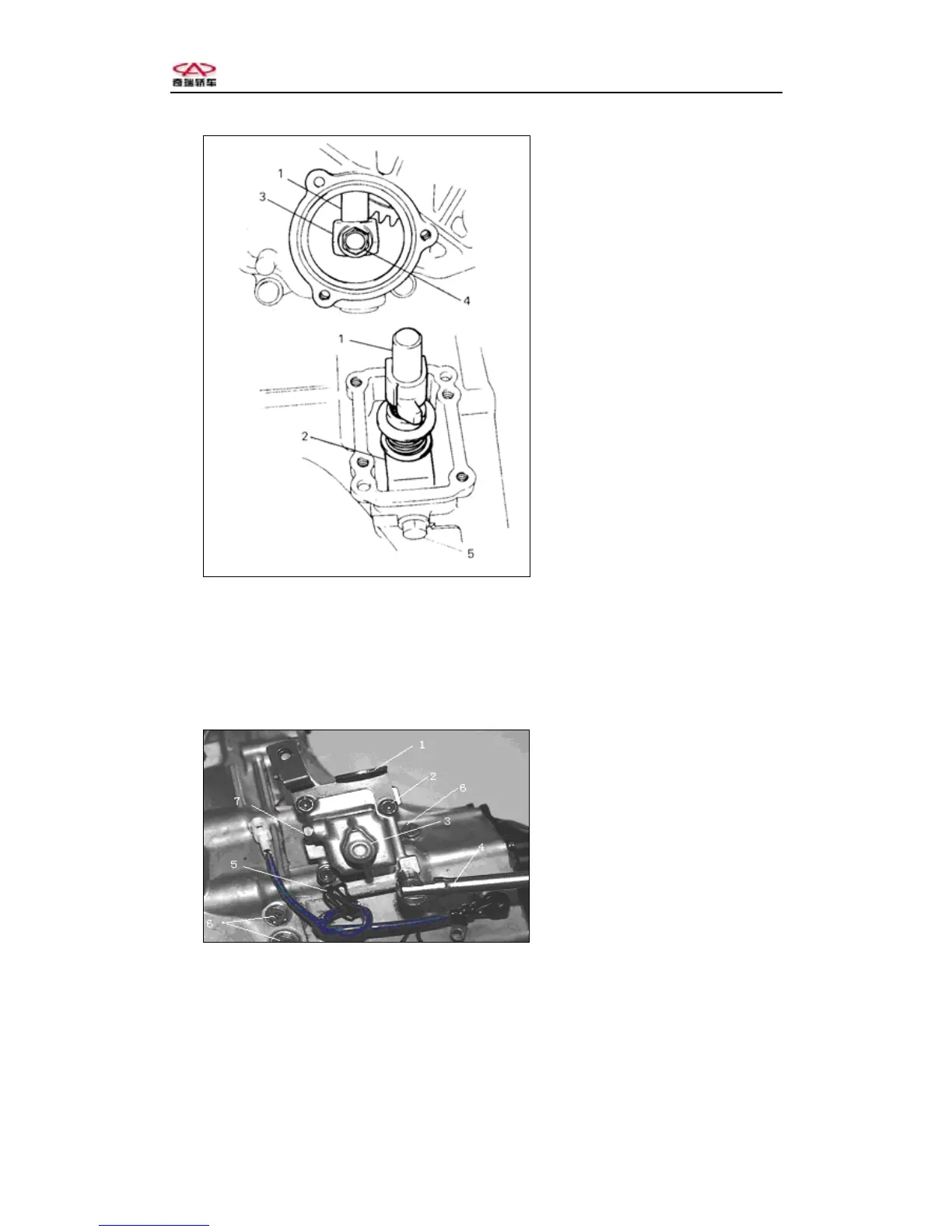

1-Shift select shaft
2-Interlock
3-Shift lever fork
4- Bolt
5-Shaft restrict bolt
图 3-83
7. Clean the contacting interface and spread sealed adhesive evenly.
Sealed adhesive：seal glue（HZ1213Q/320222 YAP02-92）
8. Install the transmission case assembly, clip and hanger assembly,
Screw down the 4 bolt。
Torque 8～12N·m
1-Hang ring assembly
2-Bolt
3-Guide case assembly
4-Special tool
5-Clip
6-Shift Shift fork shaft bolt
7-Reserve, 5
th
Interlock bolt
Fig.3-84
9. Install the reserve backup light switch assembly reserve backup light switch
Torque 18～28N·m
10. Clean the interface of the transmission cover board and transmission, check
the “O” ring and screw down the three bolts.
Torque 8～12N·m
-90-
