Chery QQ Service Manual Transmission System
（5）Shift guide case assembly
1. In case of disassembly or installing， screw torque bolt，check-up blow hole
straightway。
Torque : 8～12N·m
2. Clean case and transmission surface。

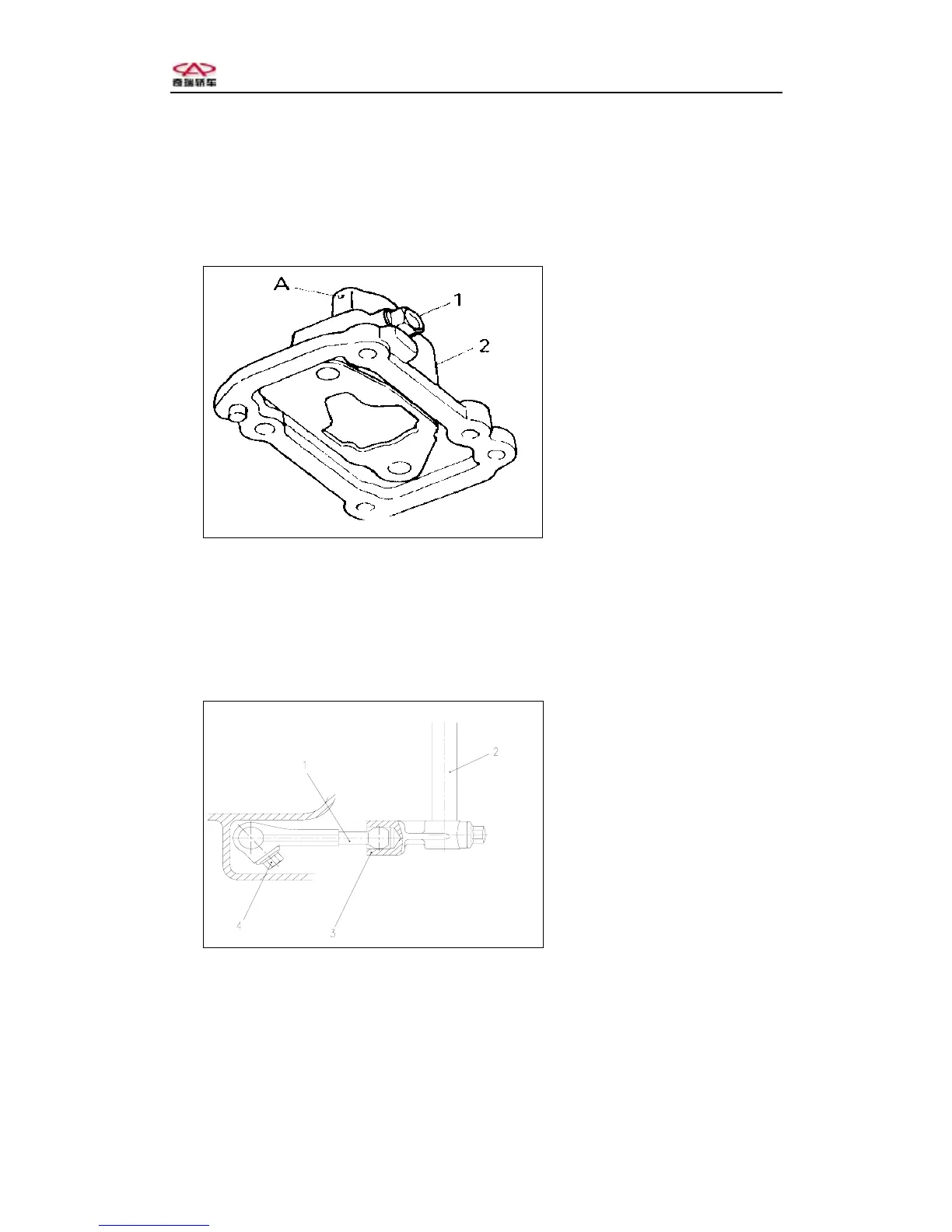

1-Reserve, 5
th
Interlock bolt
2-Shift guide case
A：Blow hole
Fig.3-81
3. Install the select shaft assembly.
Notice: When installing shift select shaft assembly, keep the shift head in the
middle position to prevent interlock bolt.
4. Connect the shift head and install the shift lever fork.
5. Screw down the shaft fork bolt.
Torque 32～36N·m
1-Shift head
2-Shift select shaft
3-Shift lever fork
4-Fixup bolt
Fig.3-82
6. Fix the shaft restrict bolt.
Worm glue：262glue
Torque 18～28N·m
-89-
