Chery QQ Service Manual Transmission System

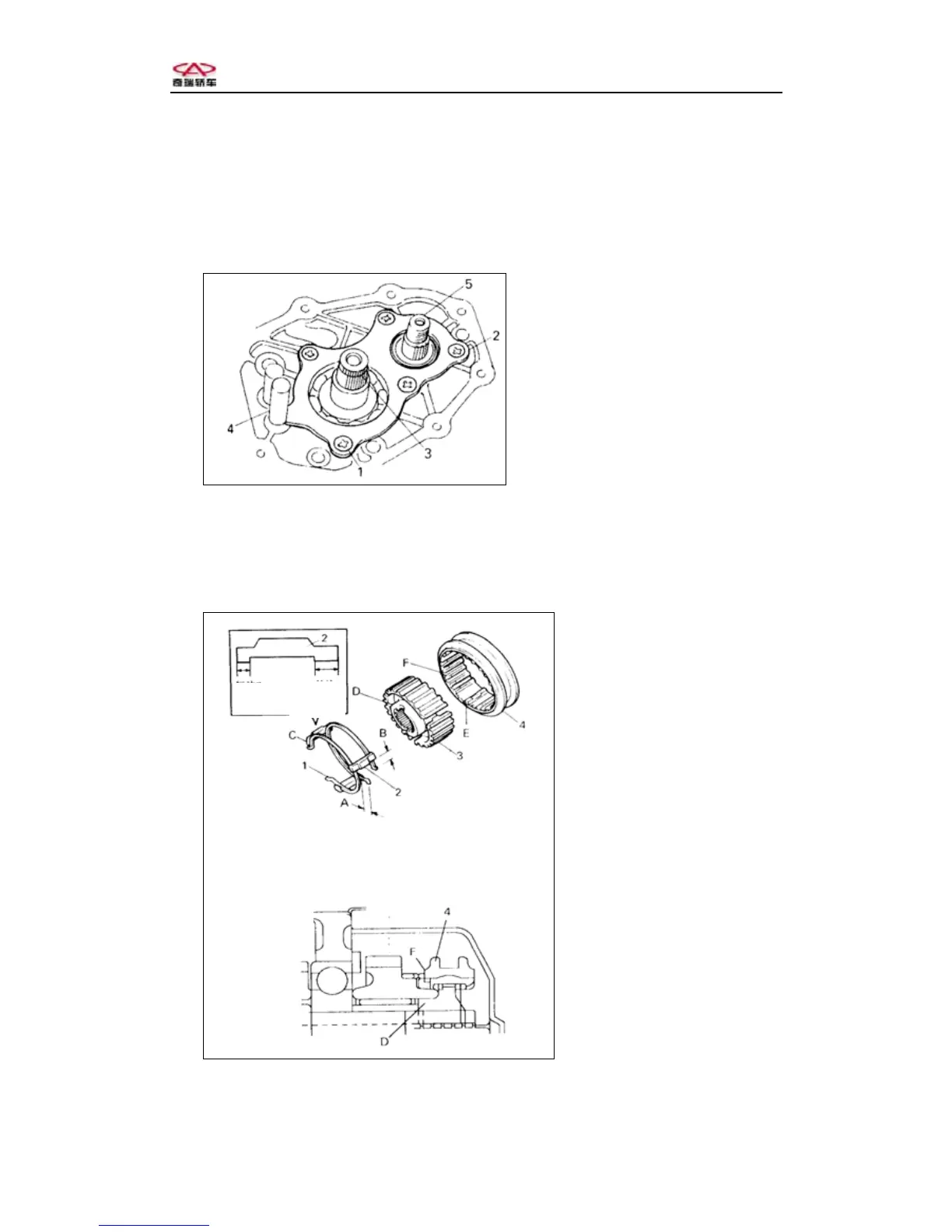

4, Install the bearing cover, insert the end of the bearing cover into the groove
of the reserve, 5th guide shaft .Spread whorl glue on the bolt.
Notice: Turn the output shaft, to check if it turns smoothly.
Whorl glue：262 glue
Torque ：8～12 N·m
1-Bolt
2-Transmissan case
3-Input shaft
4-Reserve, 5th guide shaft
5-Output shaft
Fig.3-73
5, Install the 5th hub sleeve, 5th clutch hub, 5th Synchronizer, insert and 5th
snap ring.
Notice: Keep the synchronizer insert short C, clutch hub D and hub sleeve F
inward（5th gear side）.
1-5
th
Spring snap spring
2-5
th
Synchronizer insert
3-5
th
Clutch hub
4-5
th
Hub sleeve
Long
Short
A=B
C: Short
D: Long
E:
Insert
F: Angle
Clutch side
Clutch side
Fig.3-74
-88-
