Chery QQ Service Manual Transmission System

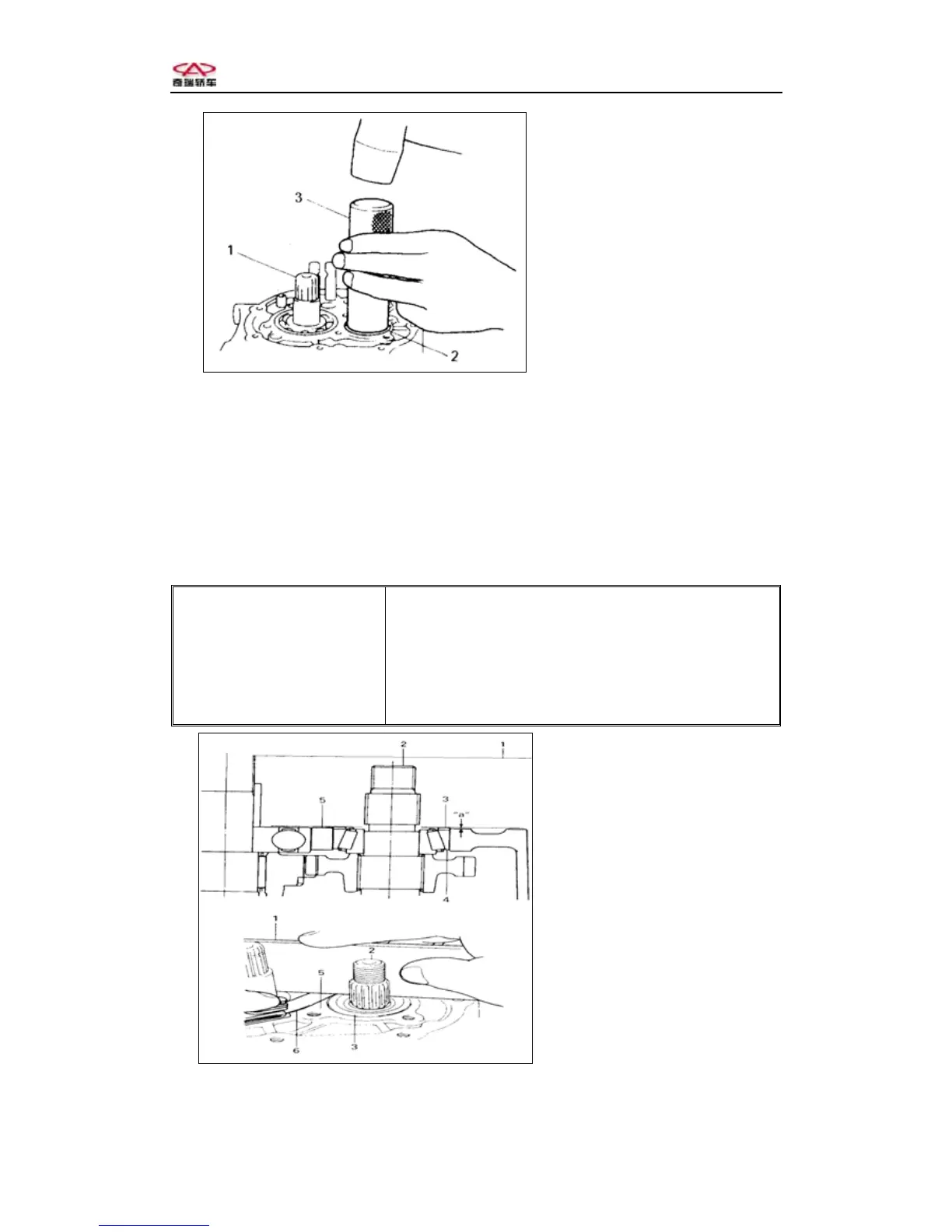

1-Input shaft
2-Left bearing outer race
3-Special tool
Fig.3-71
2, First put a adjust gasket on the bearing outer race and a ruler on the adjust
gasket, use the press ruler to measure the clearance “a”(between case surface and the
ruler)
Clearance“a”(adjust gasket)：0.08—0.12mm
3, Repeat the above steps, choose a suitable adjust gasket and put it on the
bearing outer race.
Notice: Use 0.1mm Feeler gauge to determine if the gasket is suitable or not.
Bearing adjust gasket
Thickness
0.40, 0.45, 0.50, 0.55, 0.60, 0.65,
0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.00,
1.05, 1.10, 1.15
1-Ruler
2-Output shaft
3-Bearing adjust gasket
4-Bearing outer race
5- Case
6-Feeler gauge
Fig.3-72
-87-
