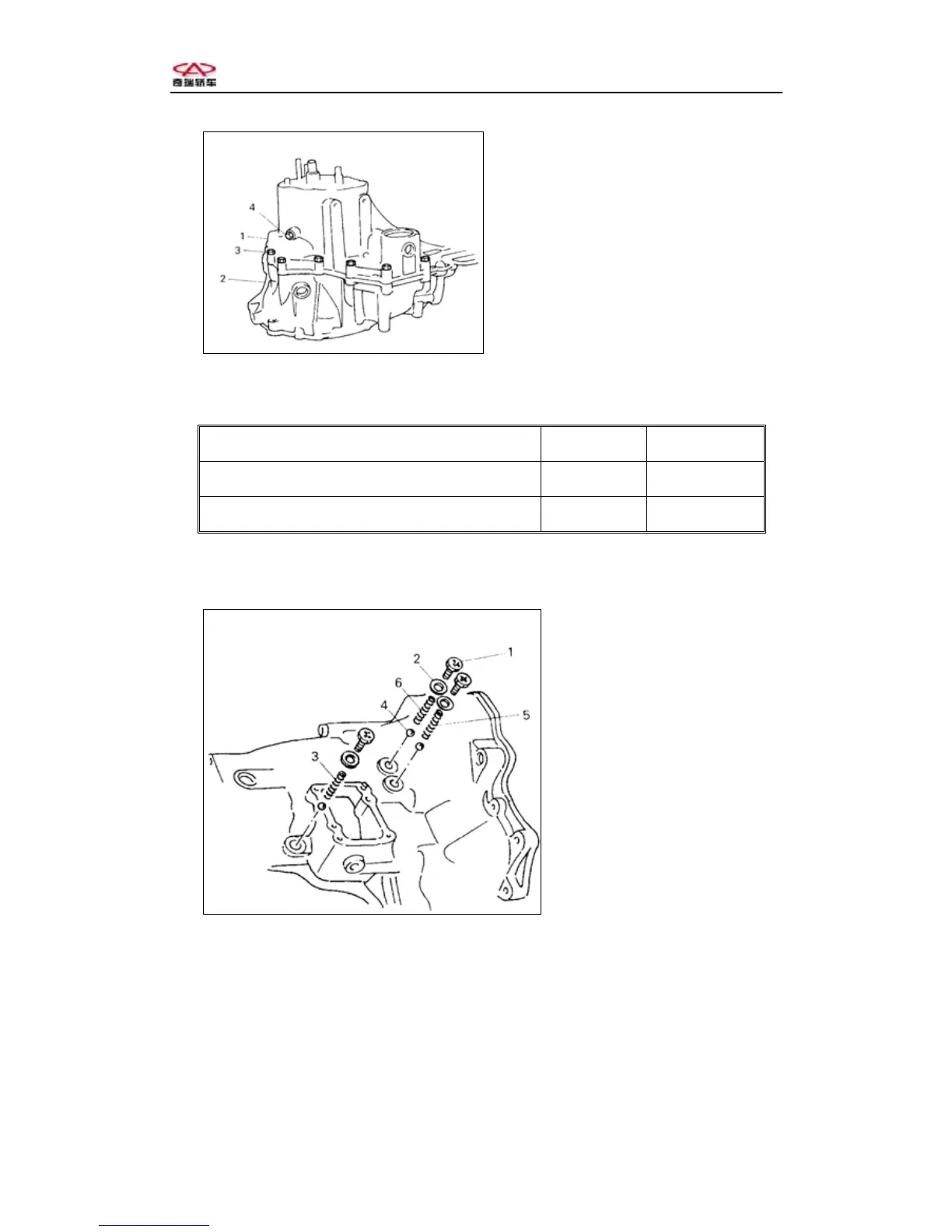

Chery QQ Service Manual Transmission System
1-Transmissan case
2-Clutch case
3-Transmission bolt
4-Reverse idle gear shaf
t
bolt
Fig3-69
11, Check-up shift fork shaft point spring worn.
Point spring free length Standard Use Limit
Reserve, 5th spring（Red）
33.8 32.7
Spring（Green）
33.6 32.5
12, Install the shift lever shift fork shaft ball, spring，bolt.
Torque ：10～16 N·m
1-Bolt
2-Gasket
3- Point spring（Green）
4-Ball
5- Point spring（Green）
6-Reserve, 5
th
point spring
（
Red
）
Fig.3-70
（4）5th gear
1, Hammer the output shaft left bearing outer race lightly to the position of
bearing.
-86-
