Chery QQ Service Manual Transmission System
Distance“a” ：5mm
The distance “a”is 5mm，reverse shift fork end and reverse idle gear
clearance is 1mm 。

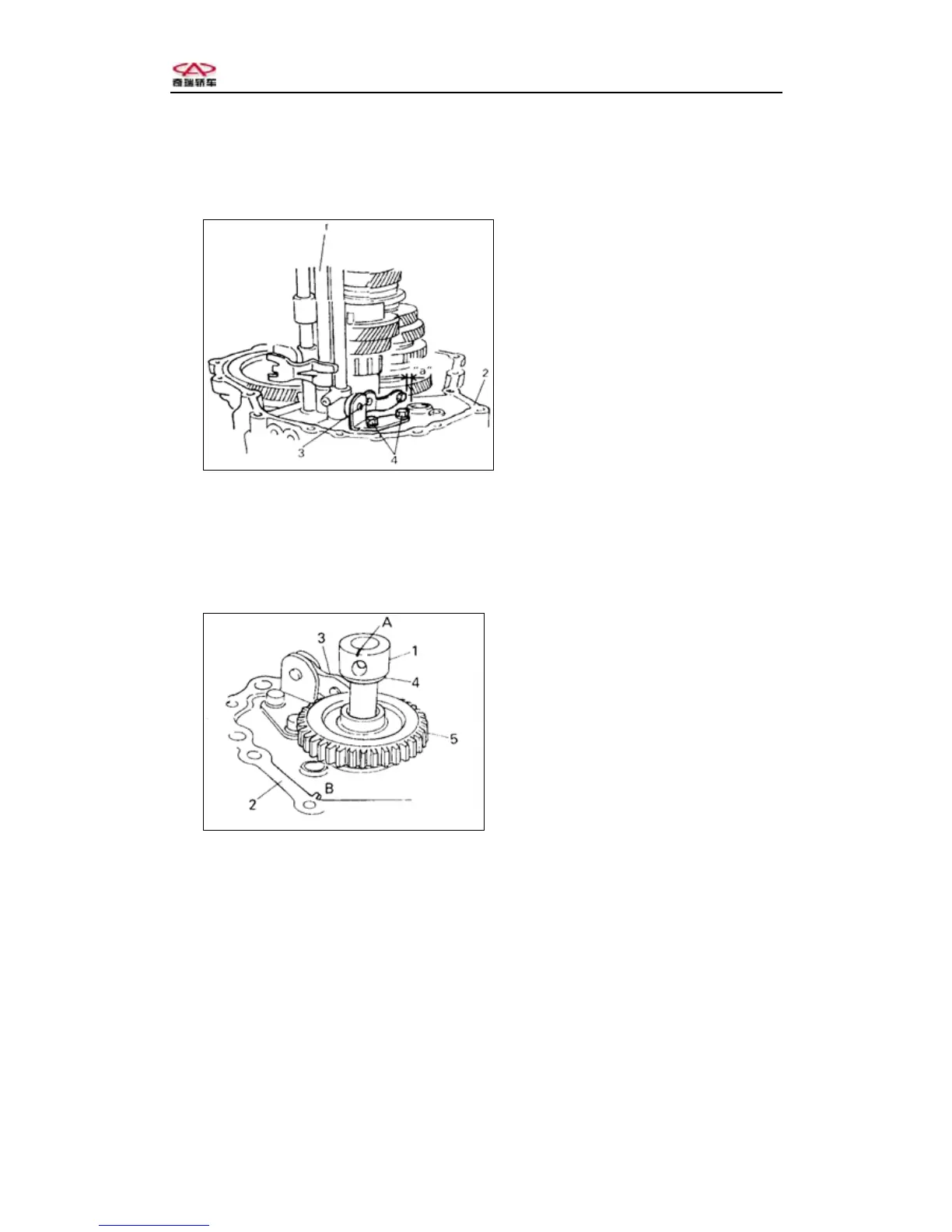

5, Install the reserve, 5
th
shift fork shaft assembly.
1-Reserve, 5th Shift for
k
shaft assembly
2-Clutch case
3-Reverse Shift for
k
assembly
Fig.3-67
6, Install the reverse idle gear and reverse idle gear shaft, put the mark on the
reverse idle gear shaft (Fig. A) and the step (Fig. B) on the clutch case in order.
Notice:
Be sure that reverse gear gasket has been fixed on the reverse gear.
Be sure that the distance between reverse shift fork free is 1mm
1-Reverse idle gear shaf
t
assembly
2-Clutch case
3-Reverse Shift for
k
assembly
4-Reverse gear gasket
Fig.3-68
7, Clean the clutch and transmission surface, spread sealed adhesive on the
surface of the transmission, and fix it with clutch.
Seal Adhesive： Seal adhesive（HZ1213Q/320222 YAP02-92）
8, Screw down the transmission bolt according to the correct torque .
Torque：15～22 N·m
9, Install the reverse gear shaft bolt and aluminum gasket, screw down the bolt.
Torque ：18～28 N·m
10, Screw down the other 3 transmission bolt in the clutch.
Torque ：15～22 N·m
