Chery QQ - Maintenance of the Transaxle

• Chery QQ Service Manual Transmission System

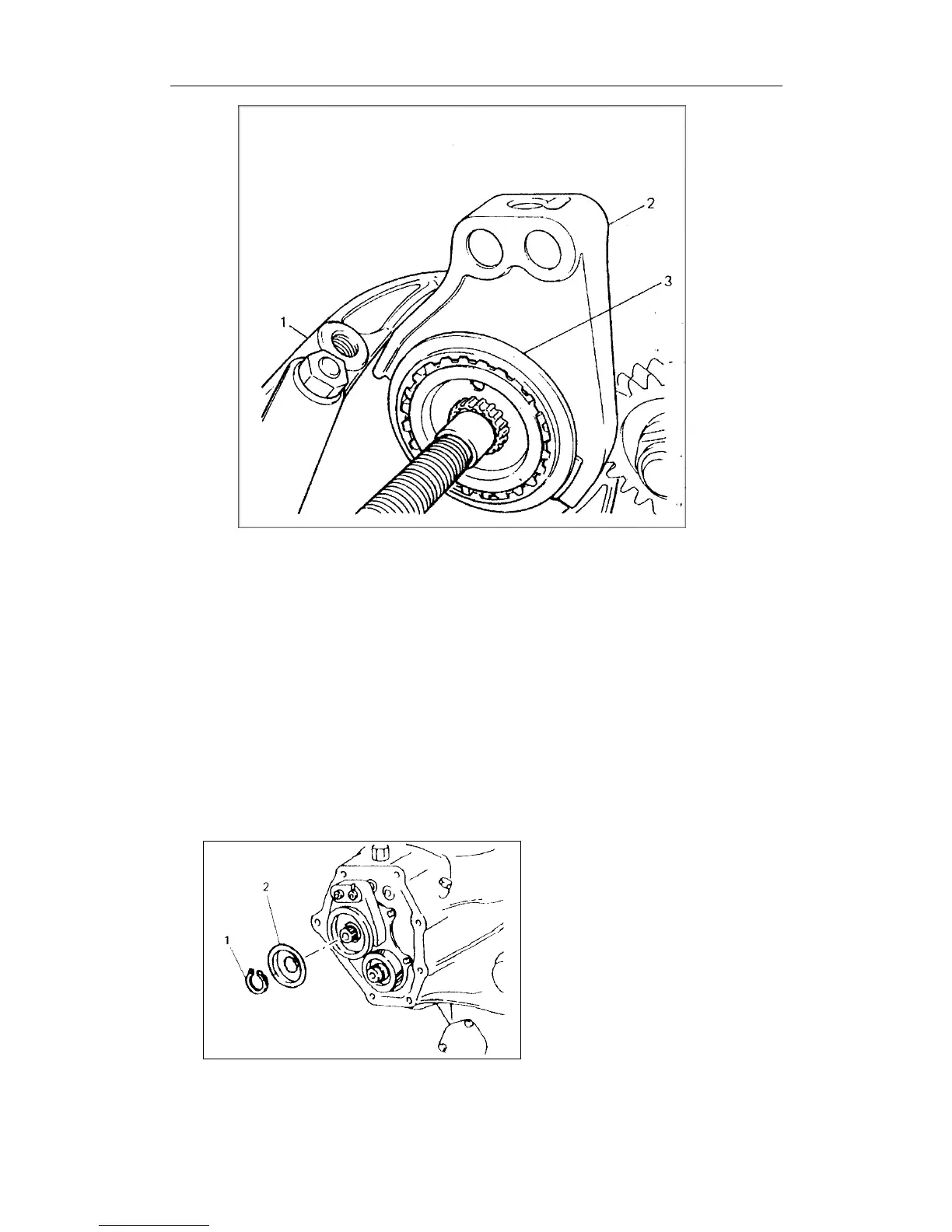

1,Gear disassembly tool
2, 5th shift fork
3,Synchronizer hub sleeve
Section 4 Maintenance of the transaxle
I, Disassemble
（1） 5th gear
1 Loosen 8 bolt , remove the rear gear box.
2 Remove the snap ring，thrust gasket.
Caution: do not distort the snap ring.
1- Snap ring
2-Thrust gasket
Fig.3-1
55
3 Remove the 5th shift fork bolt and placement.
Chery Automobile Co., Ltd
