• Chery QQ Service Manual Transmission System
It is much easier to magnetize the placement.

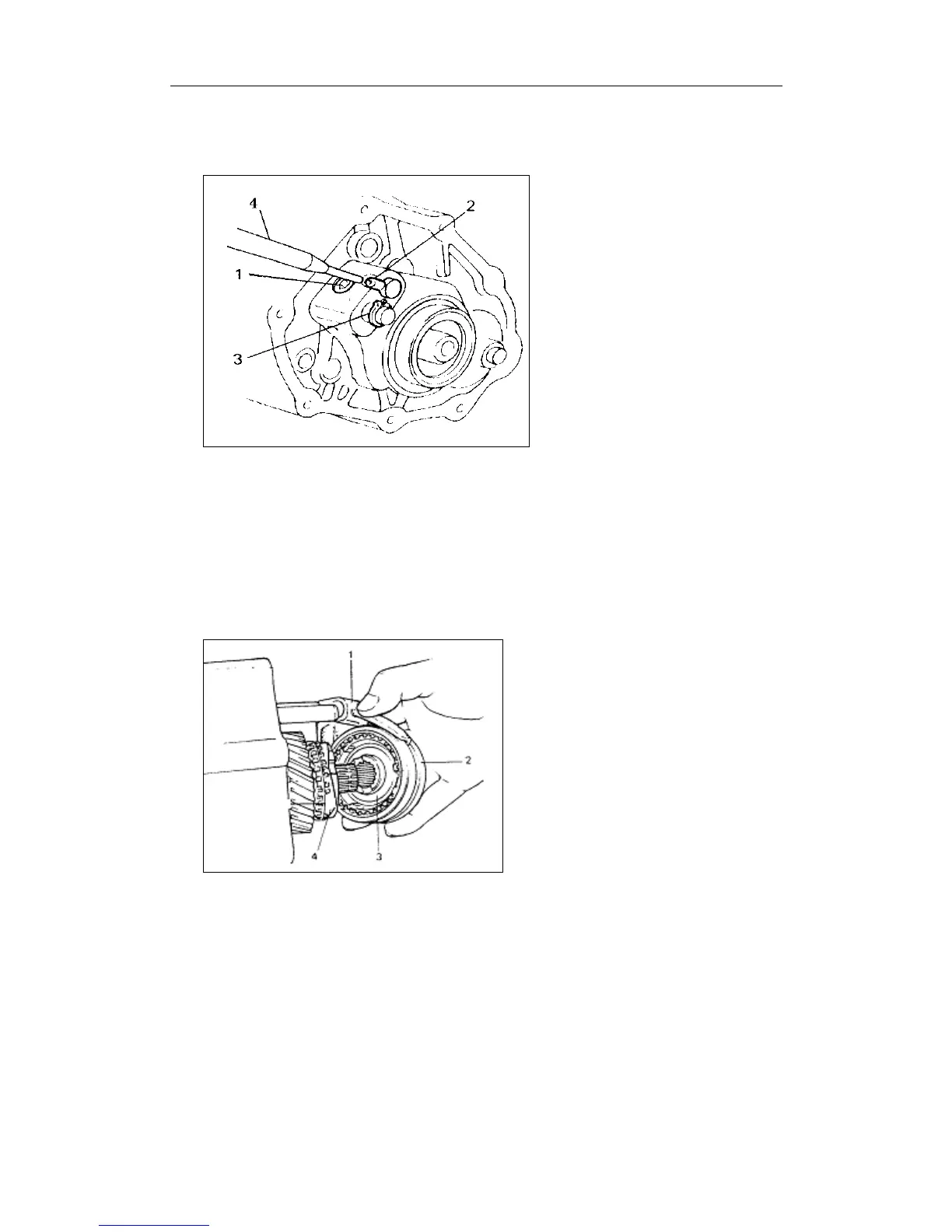

4 Remove the snap ring. and slotted spring pin.
1- 5th Shift fork bolt
2- Slotted spring pin
3- Snap ring
4- Special tool
Fig.3-2
5 Remove the 5th Shift fork,5th synchronizer assembly, synchronizer ring.
1- 5th shift fork
2- 5th hub sleeve
3- 5th hub
4-5th synchronizer ring
Fig.3-3
6 Fasten the input shaft, output shaft ，5th gear, install special 5th gear lock
tool on the input shaft 5th gear and transmission case.
