case of insufficient spreading room and cause personal injuries or vehicle damages.
1. Connect horn and airbag wire harness connector to airbag socket;
2. Install airbag module;
3. Fix airbag module screws
4. Tighten airbag screws with a tightening torque of 13-17Nm;
5. Connect battery cathode (-).

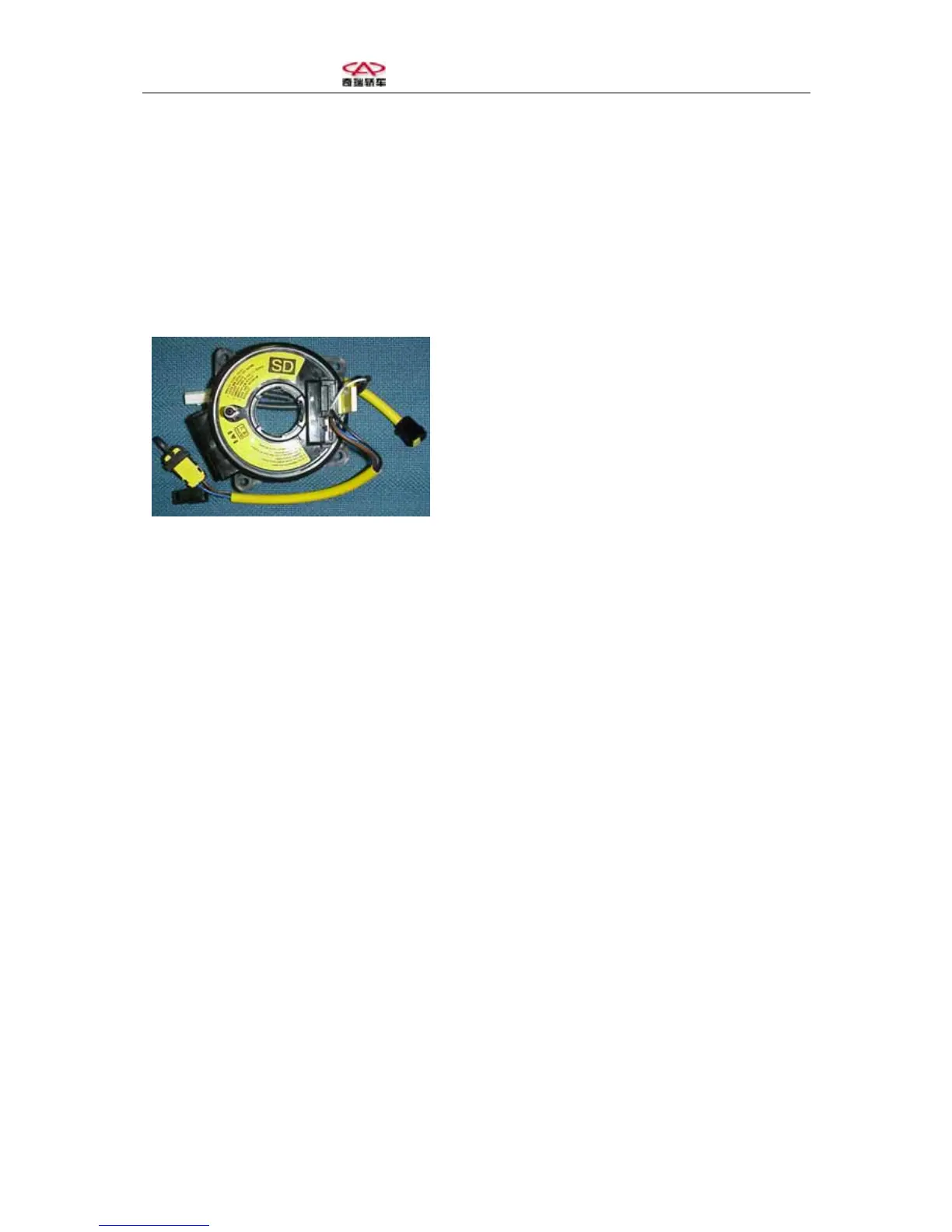

Hairspring
Assembling Procedure
Warning: if the hairspring does not locate exactly, steering wheel will can not rotate
completely when turning. Restriction of turning ability may cause accident of vehicle,
incorrect hairspring location also can restrain SRS to work, make air bag dose not work when
a bump accident happened. The two instances above both can induce injury. Turning steering
wheel clockwise or counterclockwise for more than 3 cycles will damage hairspring.
1. Adjust front wheel to just frontage
2. Install hairspring and spiral thread
3. Tighten the hairspring spiral thread by the tighten torque 3N.m
4. Rotate the hairspring overhang part clockwise to lock position
5. Rotate the hairspring overhang part three cycles counterclockwise to middle position,
then the front wheel should at the just frontage position
6. Locate the mark on the hairspring correctly
7. Connect harness connector to the bottom of the steering column
8. Install steering wheel
9. Install driver side air bag module according to “driver side air bag module” part in the
manual
10. Connect battery negative electrode (－)
Passenger side air bag module
