Chery QQ Service Manual
Two bolts: Torx-T50
Tighten torque: 15N.m
Four nuts: M6
Tighten torque: 10N.m
Disassembling Procedure
Warning: In case engine is stopped and fuse is taken off, the SDM will provides sufficient
voltage for 1 minute to activate airbag. If airbag is still connected, do not start maintenance
operation within one minute after power supply to SDM is switched off. If airbag is
disconnected, the maintenance may be started right away without waiting for 1 minute to be
discharged. Any failure in temporary disconnection of SRS during maintenance will result in
mistrigger of airbag, personal injuries and critical SRS damages.
1. Disconnecting Battery Cathode (-)
2. Remove glove box
3. Disconnect air bag yellow harness connector on passenger side

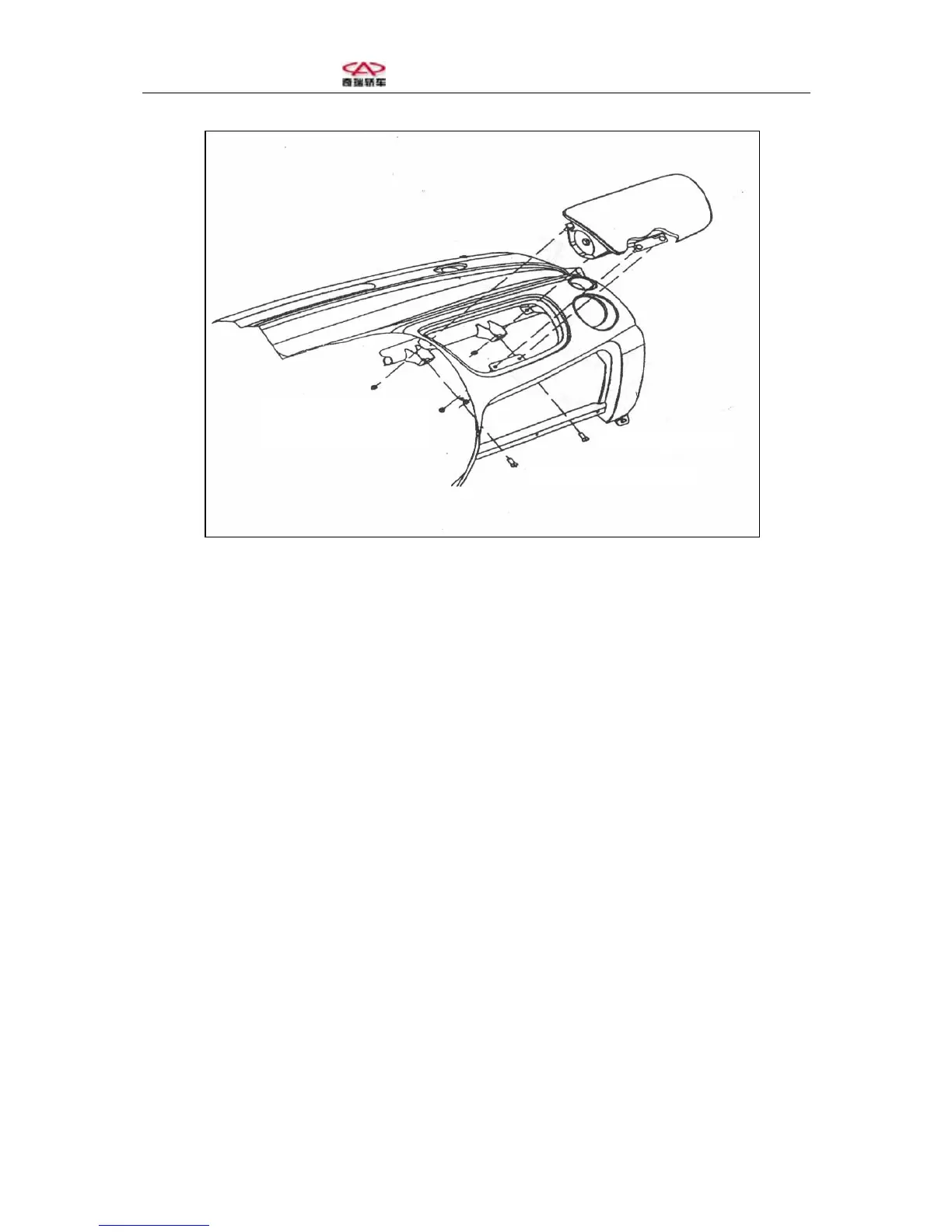

4. Remove the bolts on the instrument and on instrument panel inside cross member, then
take out the air bag
Assembling Procedure
1. Install passenger side air bag module
2. Install tighten bolt of air bag module
3. Tighten the bolt on the instrument panel inside cross member by the tighten torque
18--26N.m, tighten the bolt on instrument panel by the tighten torque 5--11N.m
4. Connect air bag yellow harness connector on passenger side
5. Install glove box
6. Connect battery negative electrode (－)
Activating Airbag (inside vehicle)
- 166 -
