Chery QQ Service Manual Chassis System
Steering wheel free-play inspection
90
In the assembled mode, check the
free-play of the steering wheel while the car is
driving in straight line. The free play of the
steering wheel in the circumferential direction
should be no larger than 0~30mm. In the case
that the free play goes beyond the specified
value, the following items should be checked
to see: if the joint of the steering horizontal
lever is worn out (when a torque of over
0.2N.m is applied, the joint should be moved);
if the lower ball knuckle is worn out; if the
steering shaft universal coupling is worn out;
if the steering small gears or gear rack is worn
out or damaged and if the fixture or joining of
the parts is loose.
Control institute

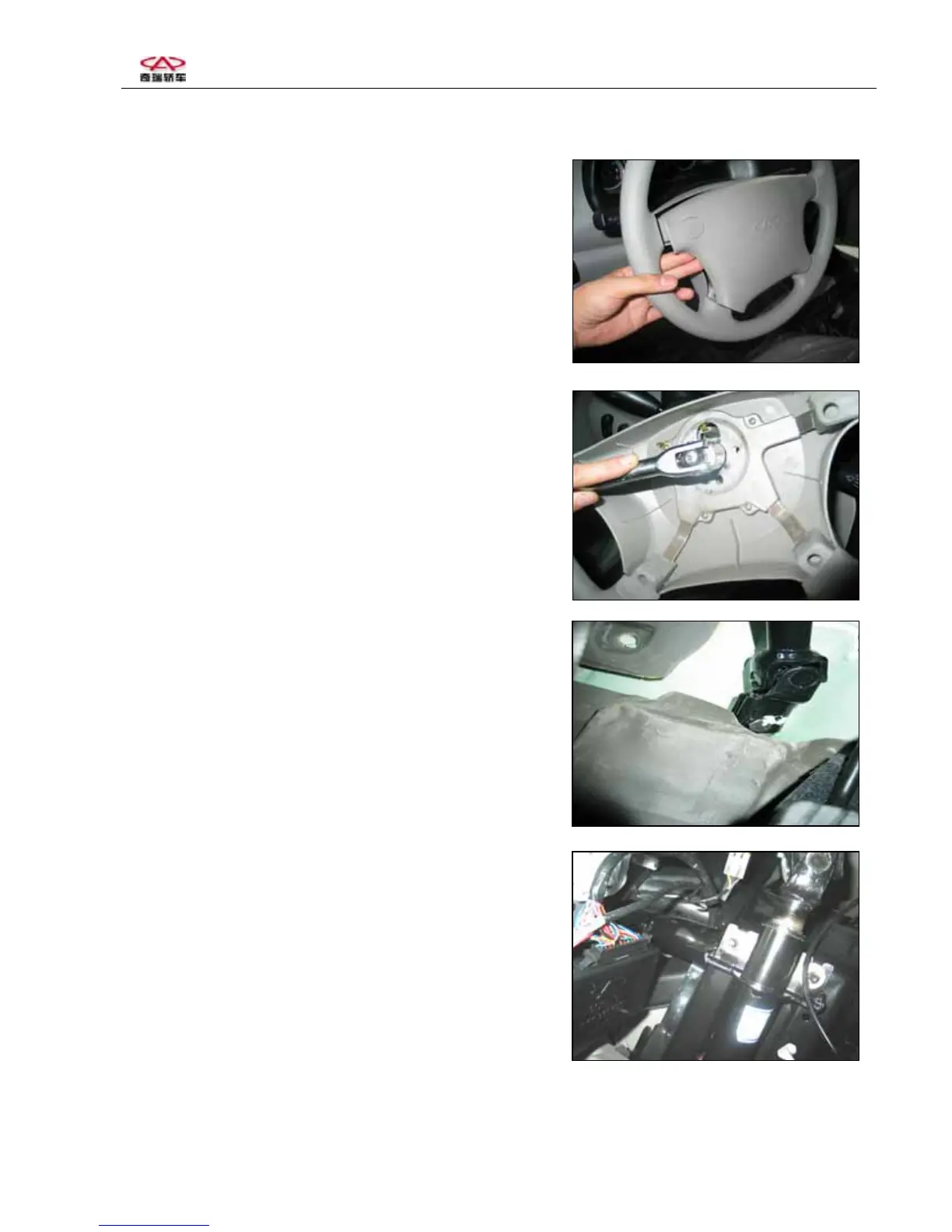

Steering wheel Removal
Remove the battery jumper wires; remove the
steering wheel label cover assembly; remove
the steering shaft screw nut. To facilitate
positioning in the installation, matching signs
are to be made on the steering wheel and the
steering shaft, then remove the steering wheel
with the special purpose remover.
Removal of the steering column assembly
1) Remove the wire bundle of the steering
wheel cover and horn switch.
2) Remove the fastening screw nuts the
steering wheel.
3) Remove the combination switch
assembly.
4) Remove the joining bolt for the steering
column and steering power tilt.
5) Remove the four fastening screws for the
steering column.
