Chery QQ Service Manual Transmission System
4, Use hammer to knock the spacer 2.
5, Remove the release shaft and return spring .

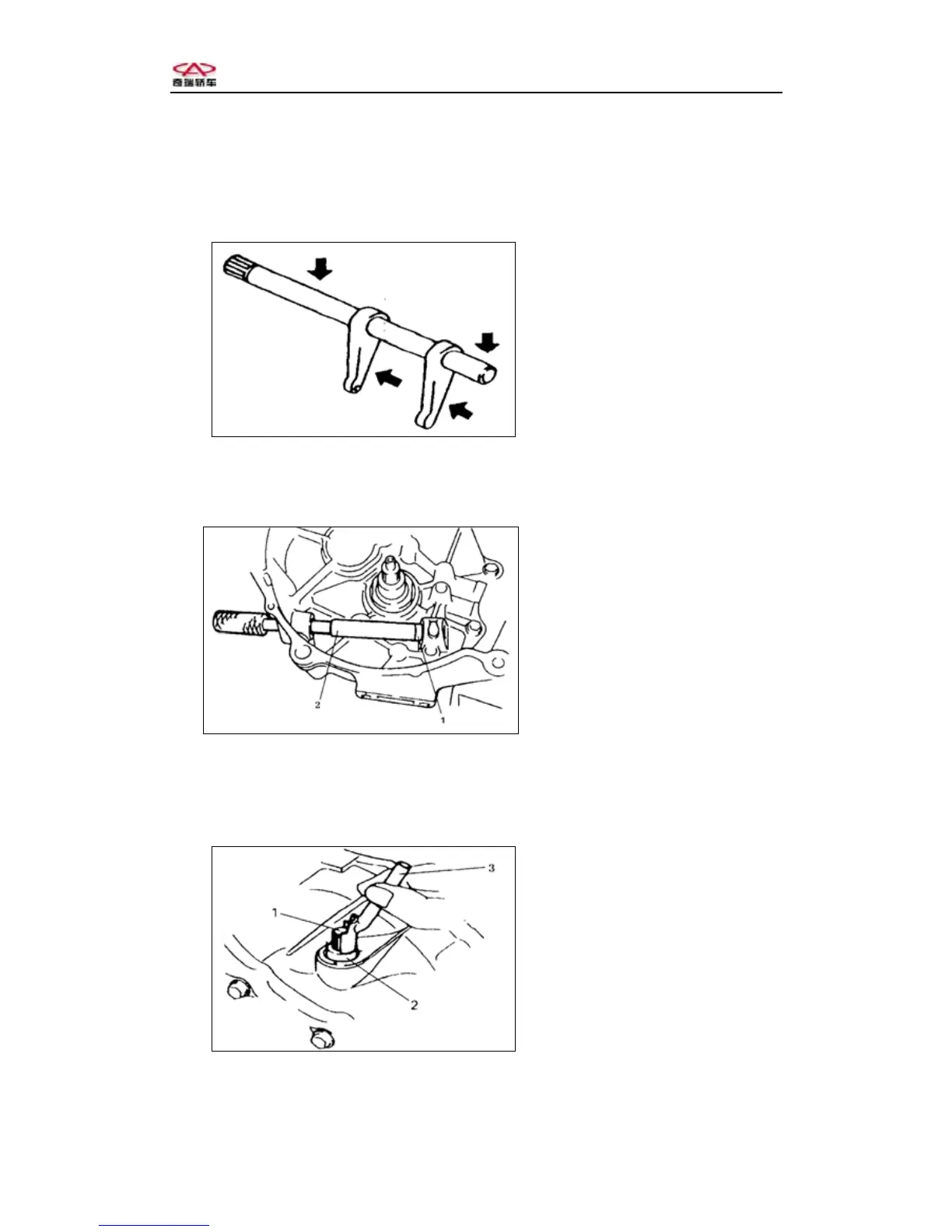

Clutch release shaft ：
Check if the release shaft and slotted spring pin have been declined and broken.
Fig.3-90
Installation：
1, Use special tool to drive in the sleeve 1 ,and spread lubricant.
2, Install the release shaft and return spring.
1-Spacer1
2-Special tool
Fig.3-91
3, Spread lubricant in the spacer2 and fix it.
4, Spread lubricant on the release shaft oil seal, keep the lip of oil seal
downward and also keep the oil seal surface equal with the case.
1-Clutch release shaft
2-Release shaft spacer 2
3-Special tool
Fig.3-92
