Chery QQ Service Manual Transmission System

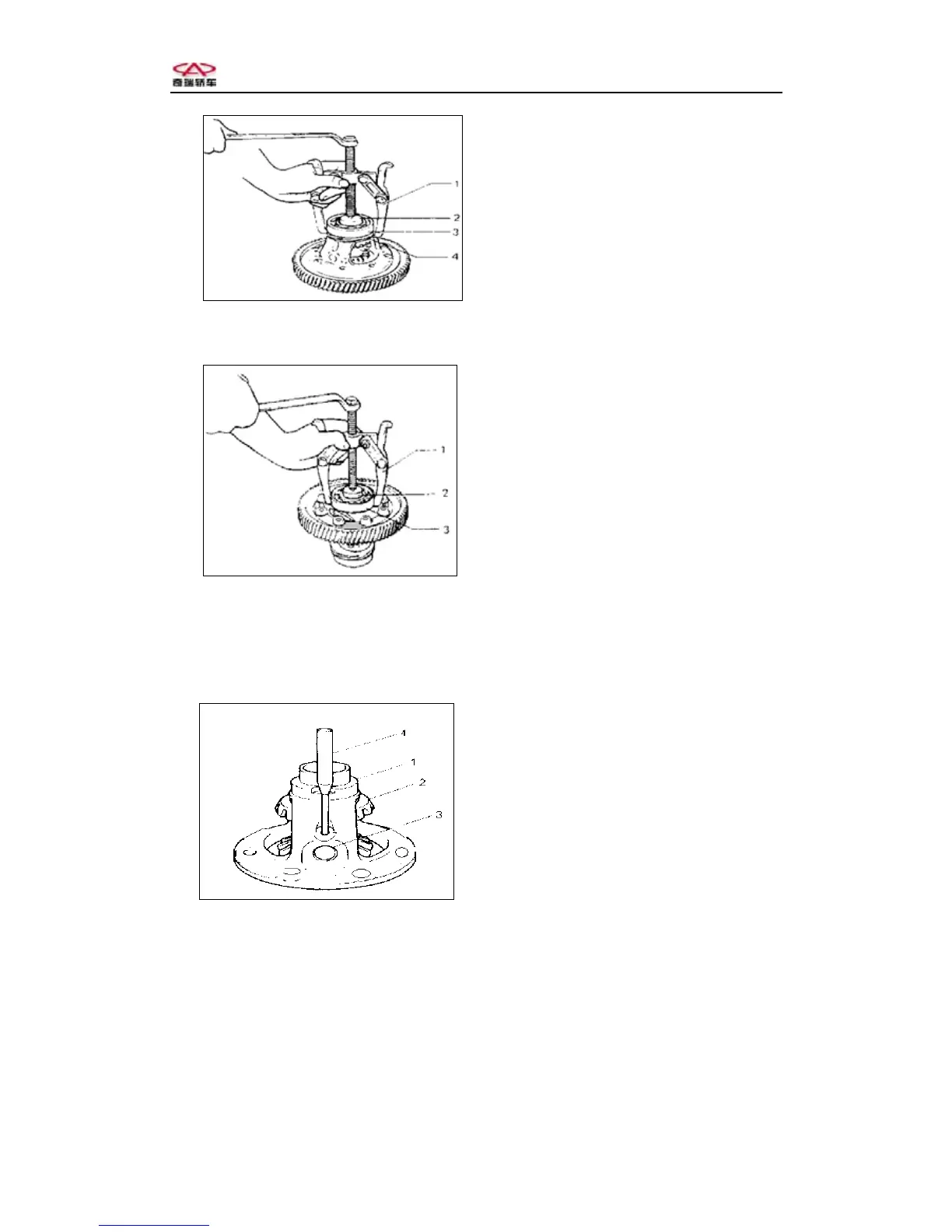

1- Bearing puller
2- Special tool
3- Bearing
4-Speedometer gear
Fig.3-50
3. Remove the left-side bearing .
1- Bearing puller
2- Special tool
3-Left bearing
Fig.3-51
4. Clip the differential case, remove the 8 nut, 8 Differential bolt and 4 lock nut.
5. Hammer off the slotted spring pin, remove the pinion gear shaft，pinion gear ，
side gear.
1- Differential case
2- Side gear
3- Pinion gear shaft
4- Special tool
Fig.3-52
