Chery QQ Service Manual Transmission System
Adjustment and Re-installation:
After disassembling, check if there is any distortion and make a record. Replace
the attainted parts, clean all the new parts and install.
1, Installation side gear，measure the clearance of side gear. Install the side
gear.
side gear clearance：0.03～0.40 mm。
Left Side:

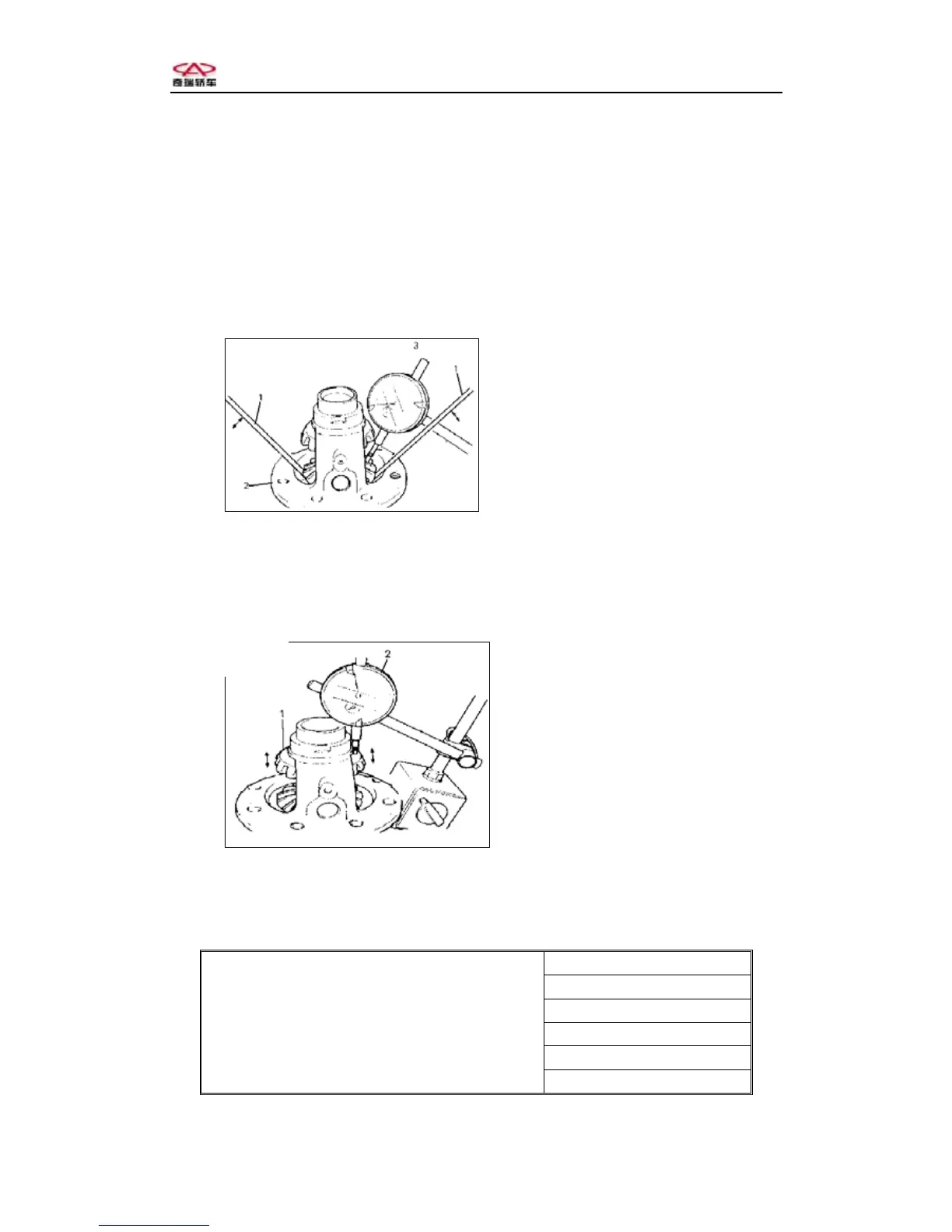

Clip the differential case, put the end of the dial indicator on the top of the gear.
Use 2 screwdrivers to move the gear, read the reading on the dial indicator.
Fig.3-53
Right Side:
According to the same process above, put the end of the dial indicator on the step
of the side gear.
-79-
Fig.3-54
2, If the clearance exceed the regulations, please choose suitable side gear adjust
gasket to install once more and test to obtain the right gear clearance.
mm
0.70
0.80
0.90
1.00
Selectable
gear adjust gasket
1.10
Right
left
1- Side gear
2-Dial indicator
1-Screwdirver
2- Side gear
3-Dial indicator
