Chery QQ Service Manual Transmission System
Notice: Spread lubricant on the contact surface of side gear adjust gasket, pinion
gear, pinion gear and pinion gear shaft, side gear and differential case.
3, Dive in the slotted spring pin, till the end of pin enter into the differential
case thoroughly.
4, Install the left-side bearing.
5, Refer to the fig., install the speedometer driven gear，use special tool to
support bearing，drift the lift-side bearing，and then install the right-side bearing
according to the step 4。
1-Differential right bearing
2-Speedometer driven gear
3-Slotted spring pin
4-Differential case
5-Differential left bearing
6-Special tool
7-special tool

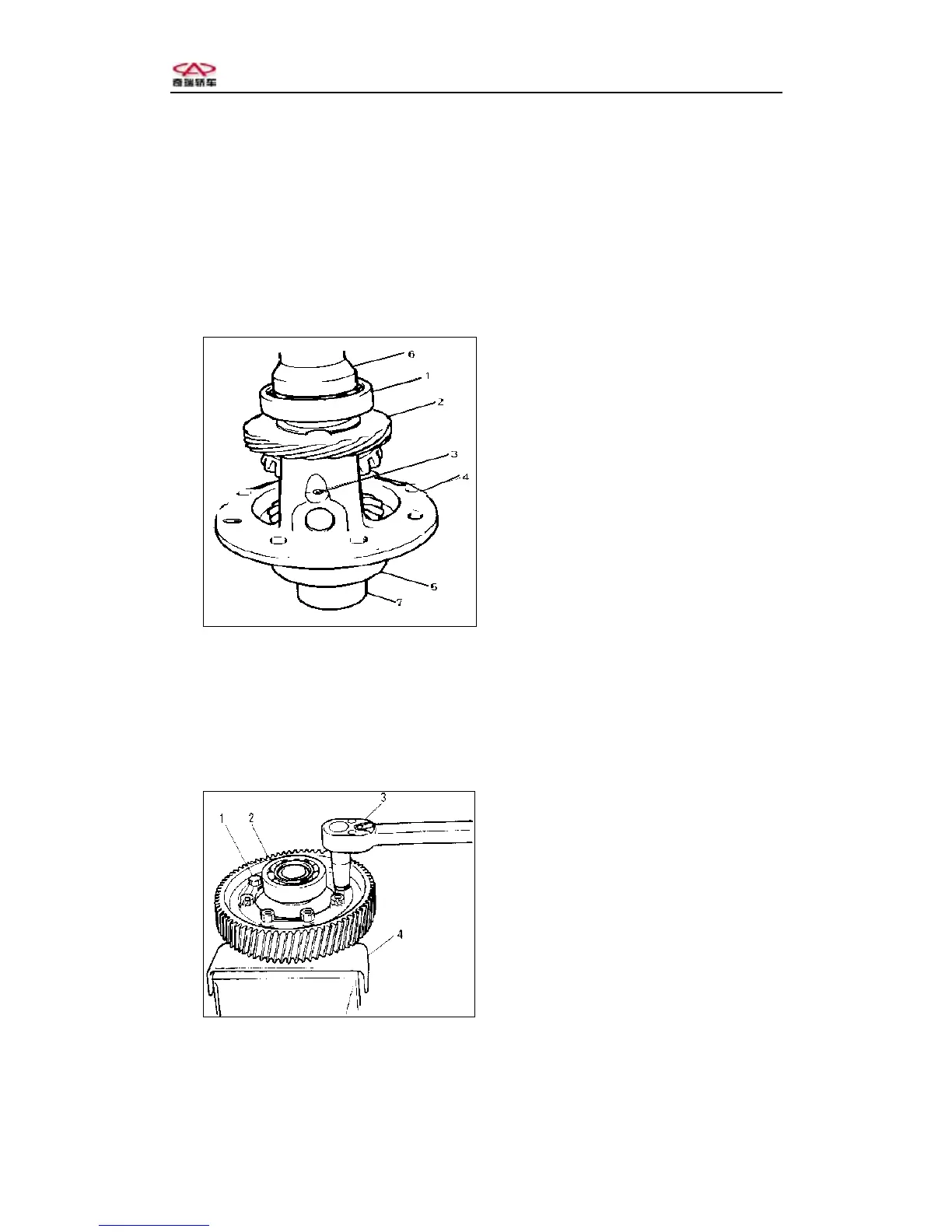

Fig.3-55
6, Clip the differential case ,install the differential ring driven gear, screw
tightly the 8 differential ring driven gear bolt according to the torque,
Caution: Forbid to use non-professional bolt.
Torque ：80～100N·m
1-Driven gear bolt
2-Differential ring
driven gear
3-Torque spanner
Fig.3-56
