Chery QQ Service Manual Transmission System
II: Installation
（1）Clutch case assembly

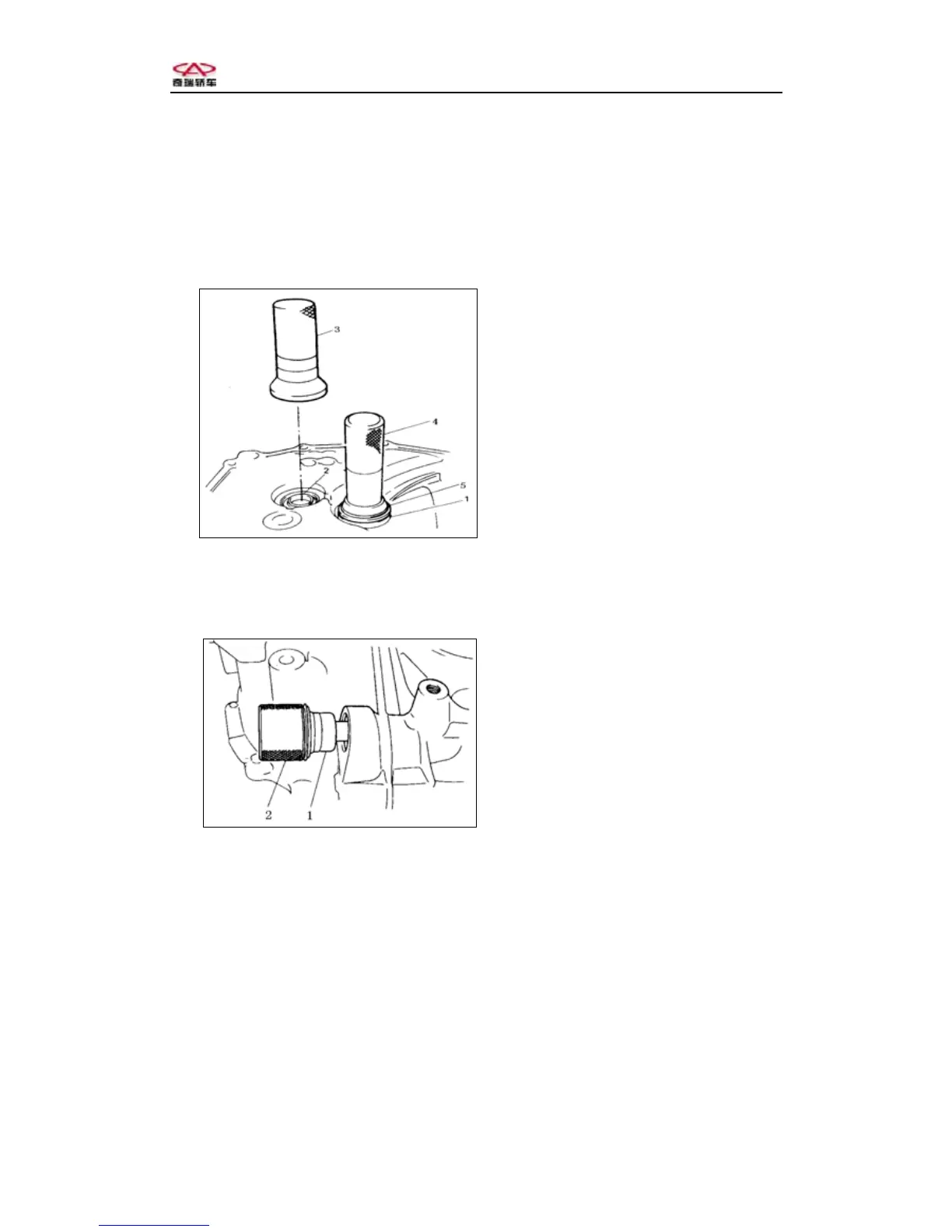

1, Use hammer and special tools to install the input shaft oil seal，keep the oil
seal spring side upward and spread lubricant on the oil seal.
2, Use hammer and special tools .
1-output shaft taper bearing oute
r
ring
2-input shaft oil seal
3, 4, 5 -special tool
Fig.3-57
To install the right bearing outer ring of the output shaft.
3, Spread lubricant on the shift lever oil seal, use hammer and special tools to
install the oil seal from the top down.
1-Shift lever oil seal
2-Special tool
Fig.3-58
4, Install the shift lever, boot, ball, spring and screw down the bolt tightly.
Torque ：10--16 N·m
Notice: Keep the blow hole of the shift lever oil seal boot downward.
5, Use hammer and special tools to install the starboard oil seal keep the oil seal
surface equal with case surface, and then spread lubricant on the oil seal.
Notice: Keep the differential oil seal spring side inward
